TEKNİK DÖKÜMANLAR
DEKORATİF YOL AYDINLATMA / ADONIS
ADONIS
APPLICATION
LED high-performance decorative lights
With wide beam light distribution
PRODUCT DESCRIPTION
Body pole steel with electro galvanized
Diffuser 5mm policarbon glass
Silicon rubber gasket
Mounting detail anchor system
All decorative parts,
Base and Bracket manufactured cast aluminium
All RAL Codes or
Special architectural paints
LED power supply unit
Input 90 –264V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP66
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.

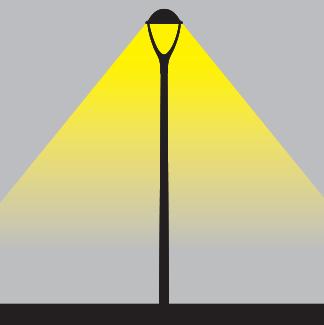

- Conformity mark.IŞIK DAĞITIMI

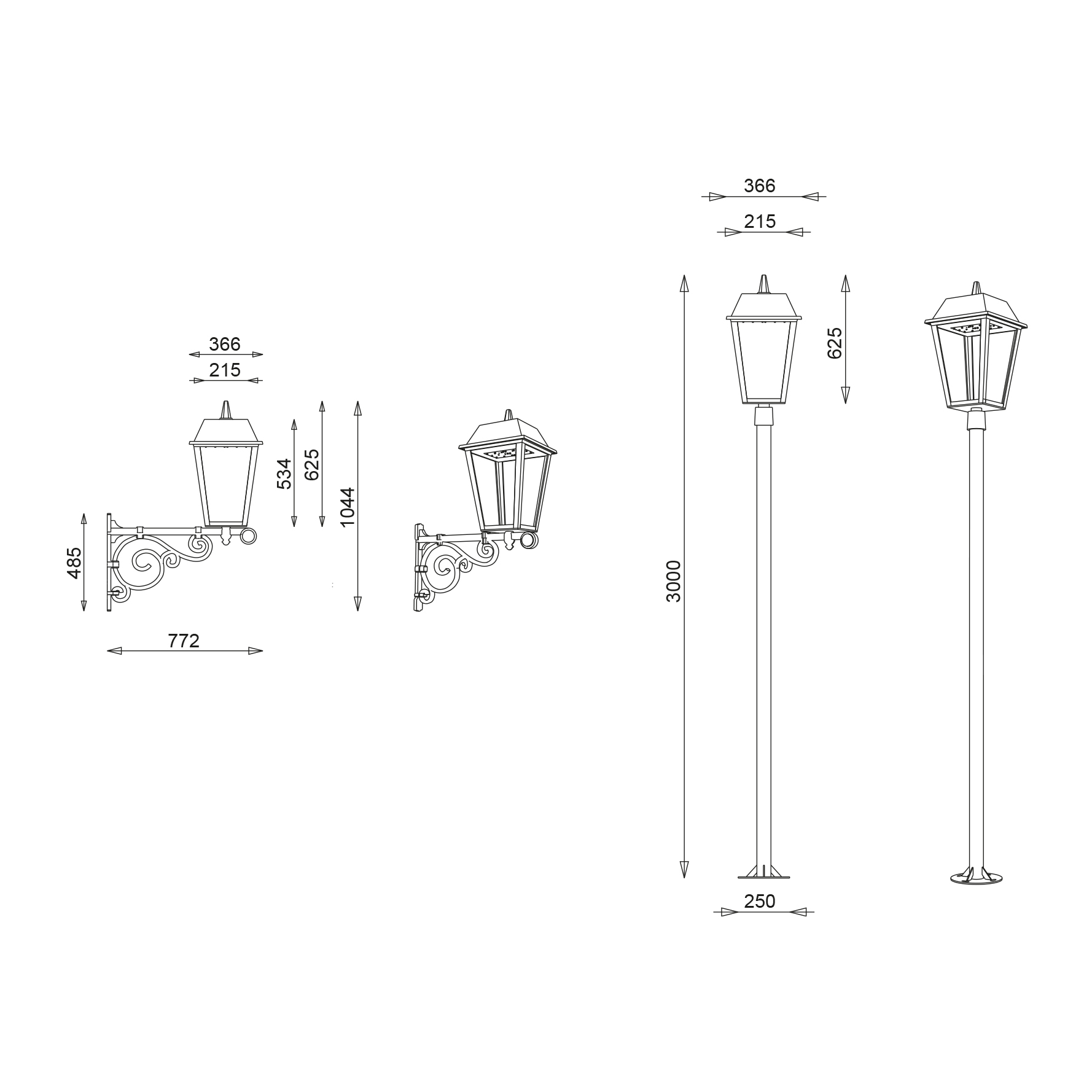

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
MODEL
60-68-01-16-56-00-ASYM-X
16W
2416lm - 2528lm
3000K-4000K

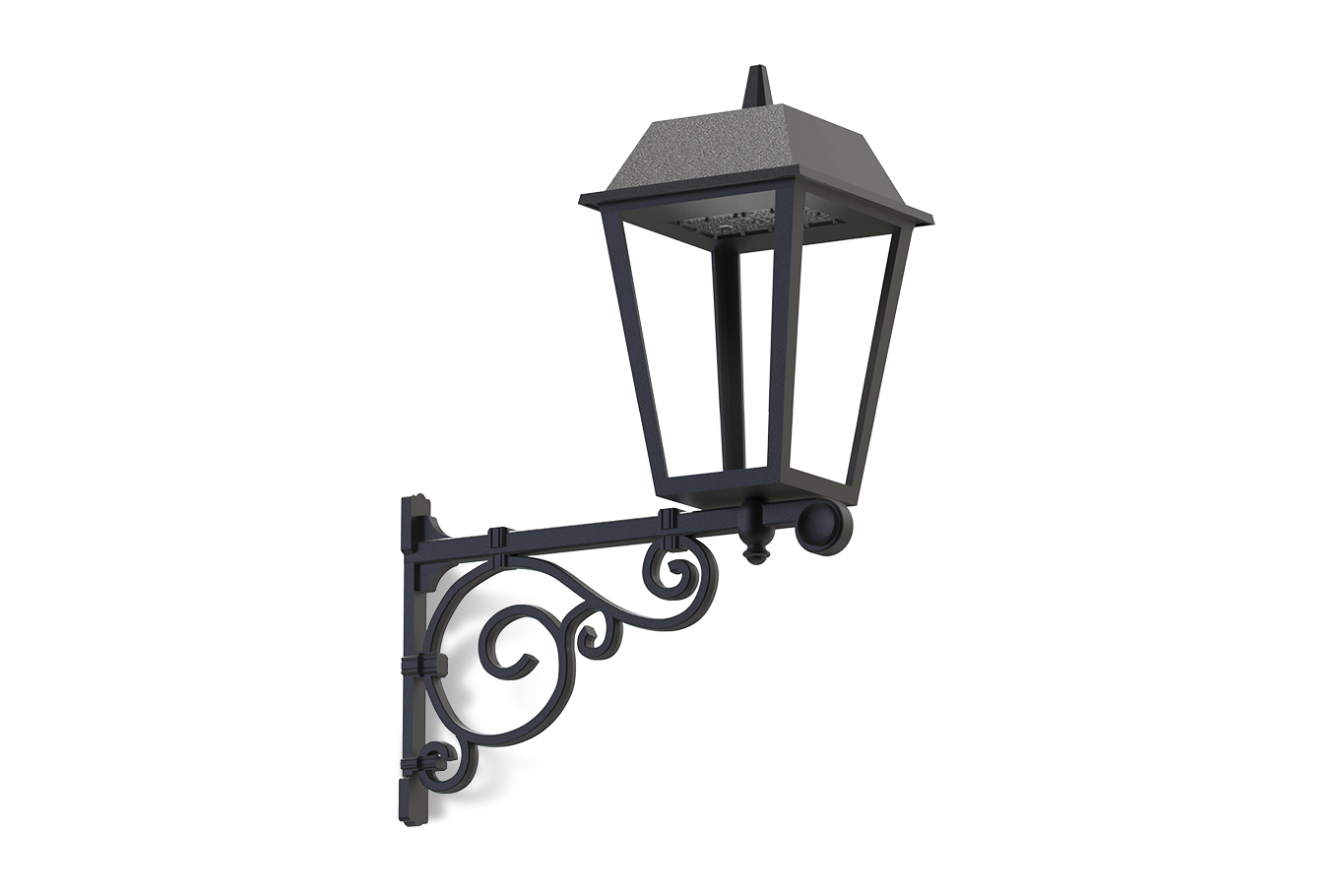

DUVARA MONTE
60-68-00-16-56-03-ASYM-X
16W
2416lm - 2528lm
3000K-4000K
DİREKLİ
60-68-00-36-56-03-ASYM-X
36W
4860lm - 5112lm
3000K-4000K
DİREKLİ
X: Led Rengi
IŞIK EĞRİLERİ
