AMON

APPLICATION
LED high-performance urban lights with wide beam light distribution.

PRODUCT DESCRIPTION
Urban lights made of aluminium diecast,
Aluminium and stainless steel.
Opak 5mm policarbon glass
Mounting bracket made of steel with
electrostatic powder coating.
Colour standard MT-X6-23
OptionalRAL codes.
LED power supply unit
Input 110 –240V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection (optional)
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP65
Operation temperature -25°C / +55°C
Wind catching area: 0,09 m²
Weight: 3 kg
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

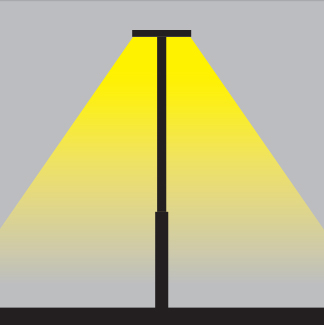

LIGHT DISTRIBUTION
AMON

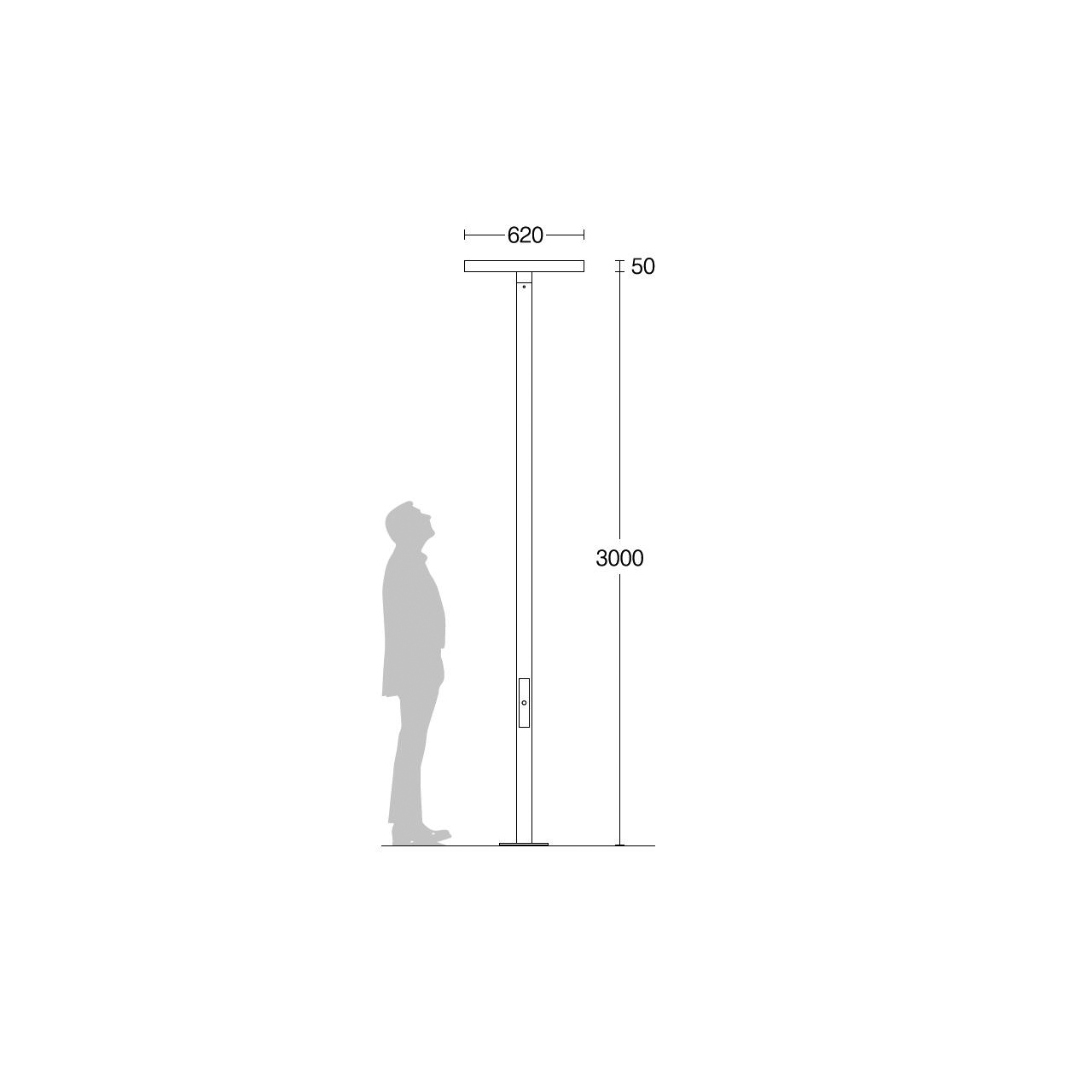

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

60-49-50-XX
50W
6169lm - 6492lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

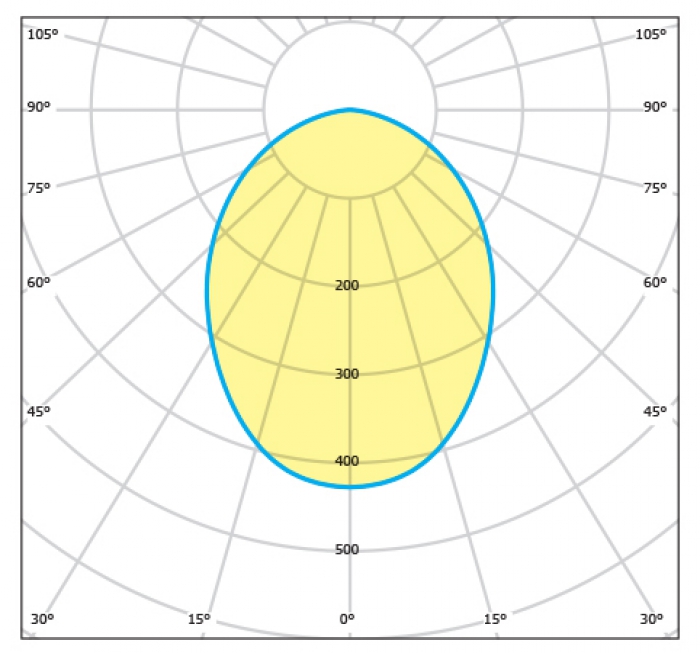

LIGHT CURVES
