URBAN LIGHTING LUMINAIRES / AMOR COLUMN SPIRAL

AMOR COLUMN SPIRAL

APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution

PRODUCT DESCRIPTION
Urban lights made of aluminium / steel extrusion die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.
  - Conformity mark.

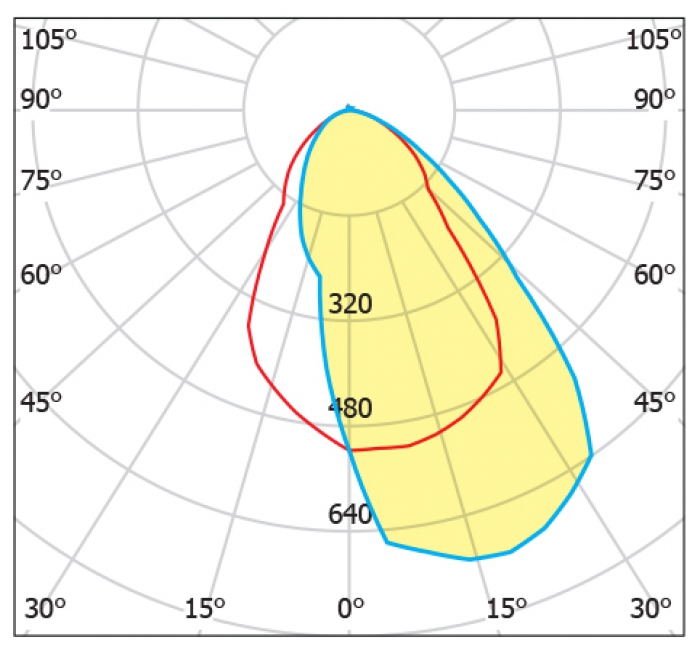

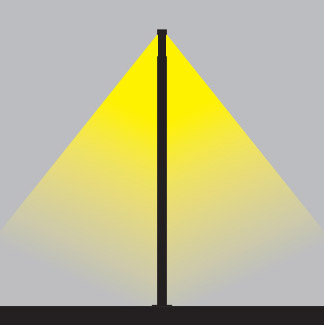

LIGHT DISTRIBUTION
AMOR COLUMN SPIRAL

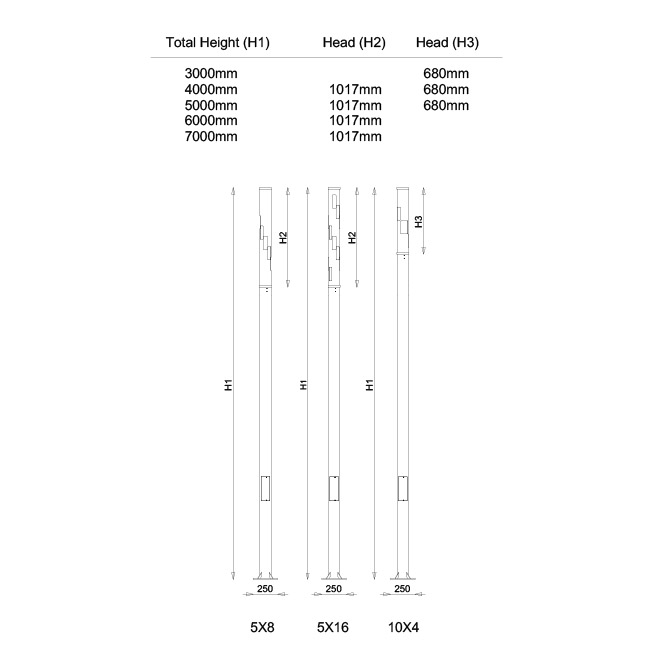

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUELSHEETS
APPLICATIONS
PURCHASE ORDER TABLE
LIGHT CURVES
ROHS NO UV NO IR LONG LIFE LED IP66 IK10 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class I Çekiç CE
