Bayled
BOLLARDS / ANCRA

ANCRA

APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution

PRODUCT DESCRIPTION
Bollard made of aluminium die cast,
Louver Highest grade aluminium,
polished and anodised.
Body pole aluminium
Diffuser PMMA
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP65
Impact resistance IK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

LIGHT DISTRIBUTION
ANCRA
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

60-67-18-X
18W
1566lm - 1692lm
3000K-4000K

60-67-23-X
23W
2162lm - 2323lm
3000K-4000K

X: Led Color

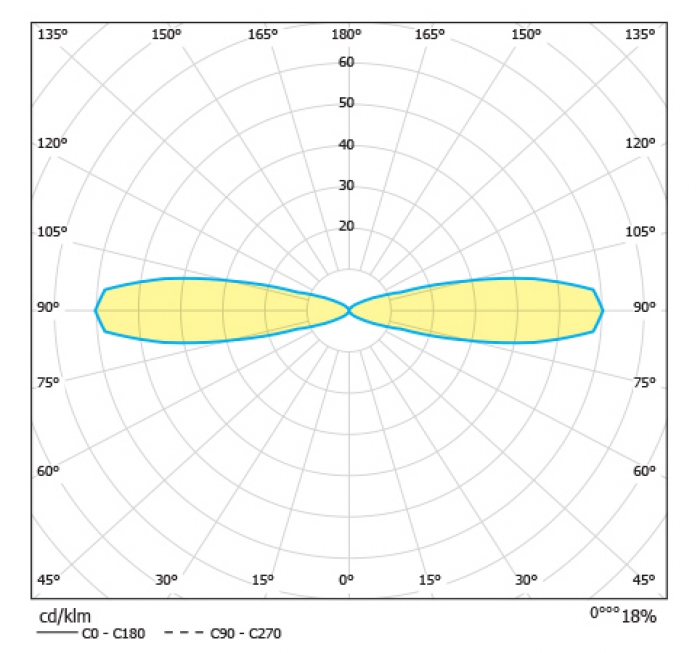

LIGHT CURVES
