APEX
APPLICATION
LED high-performance urban lights with Wide & Symmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium,
Louver highest grade aluminium,
polished and anodised.
Body pole steel with electro galvanized
Diffuser 3mm policarbon glass
Silicon rubber gasket
Mounting detail anchor system
Bracket manufactured from steel
All RAL Codes or
Special architectural paints
LED power supply unit
Input 90 –264V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety classII
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

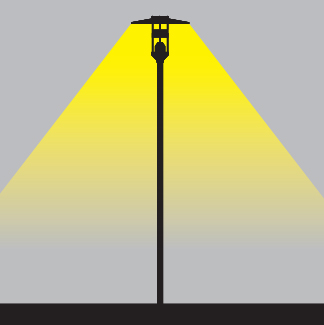

- Conformity mark.IŞIK DAĞITIMI

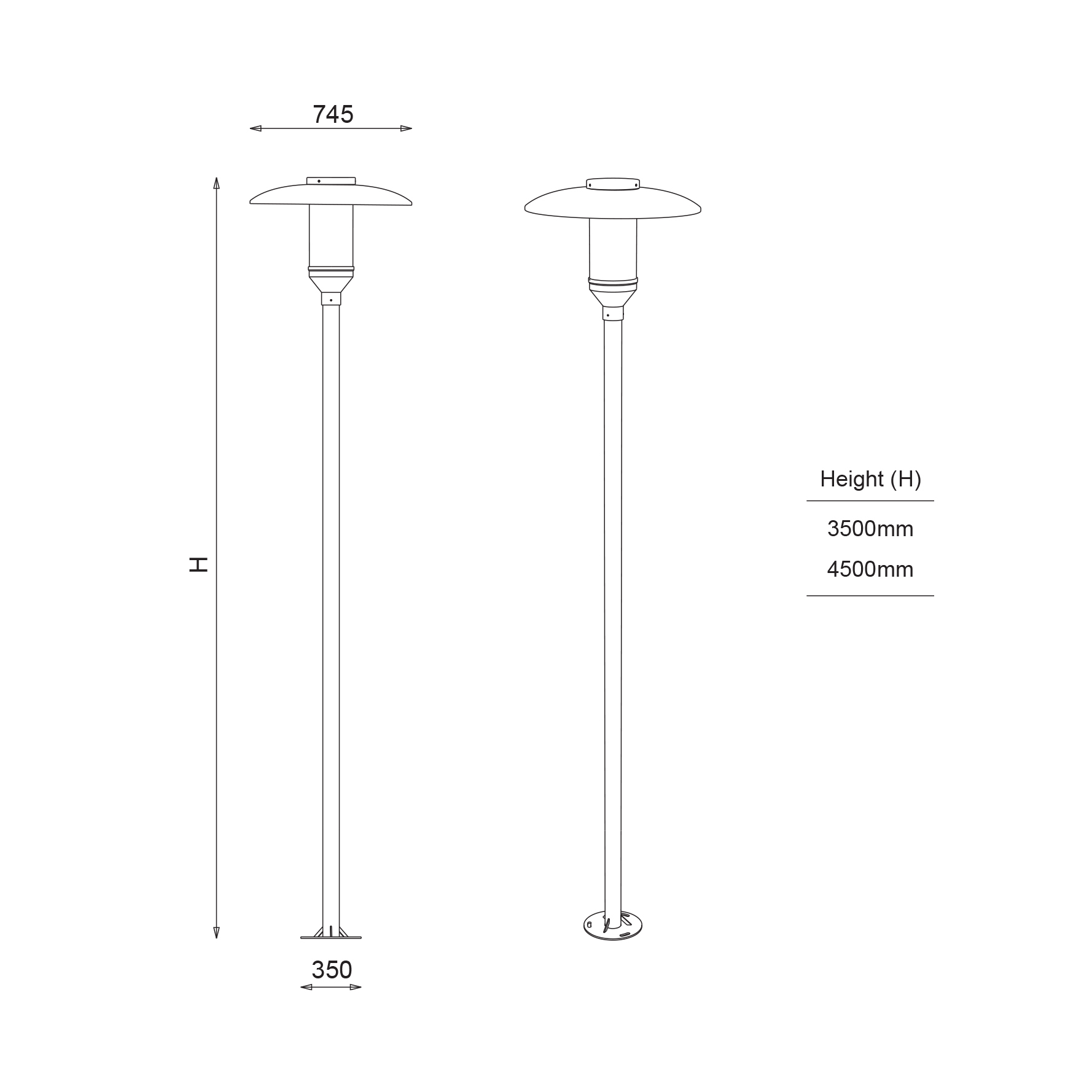

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
60-51-50-X
50W
7850lm - 8100lm
3000K-4000K
60-51-75-X
75W
10875lm - 11250lm
3000K-4000K
X: Led Rengi

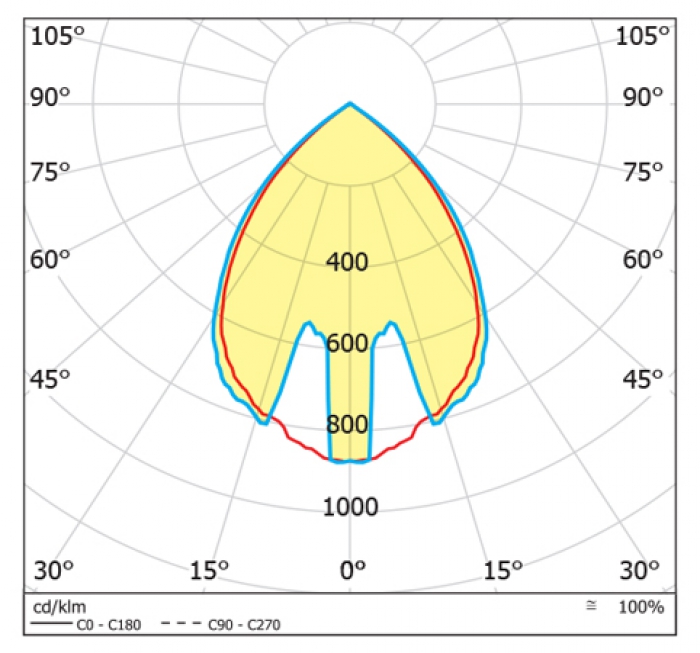

IŞIK EĞRİLERİ
