CEILING / ARGUS ROUND

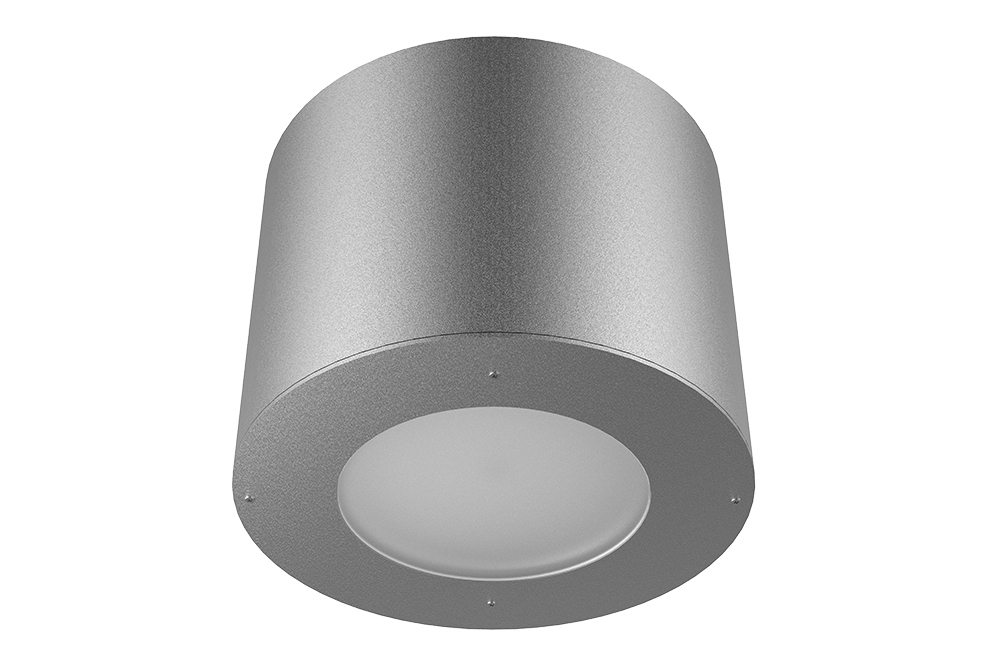

ARGUS ROUND

APPLICATION
LED high-performance downlight with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Made of aluminium die cast and extrusion
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 8°-25°-45°-60°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 90 – 264V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 3 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

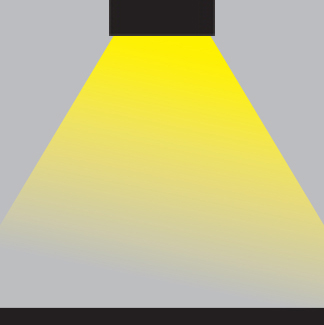

LIGHT DISTRIBUTION
ARGUS ROUND

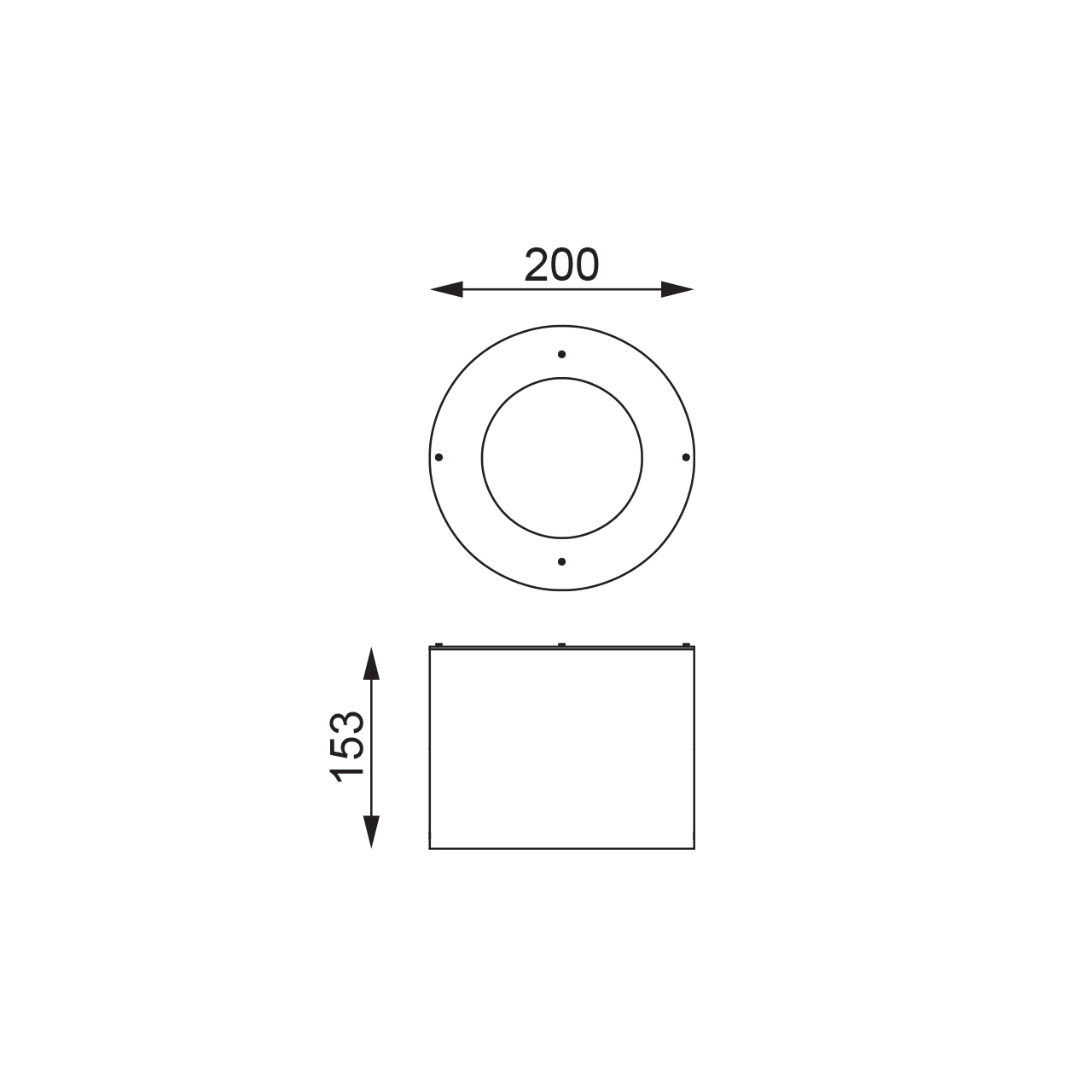

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
TEST REPORTS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

14-06-18-18-XX-X
18W
2046lm - 2152lm
3000K-4000K
14-06-25-18-XX-X
25W
2631lm - 2769lm
3000K-4000K
XX: Lens Angle , X: Led Color

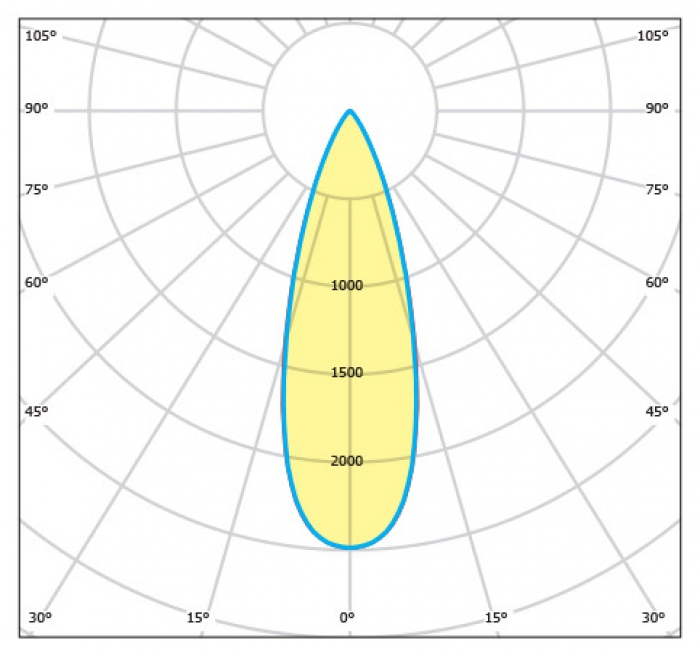

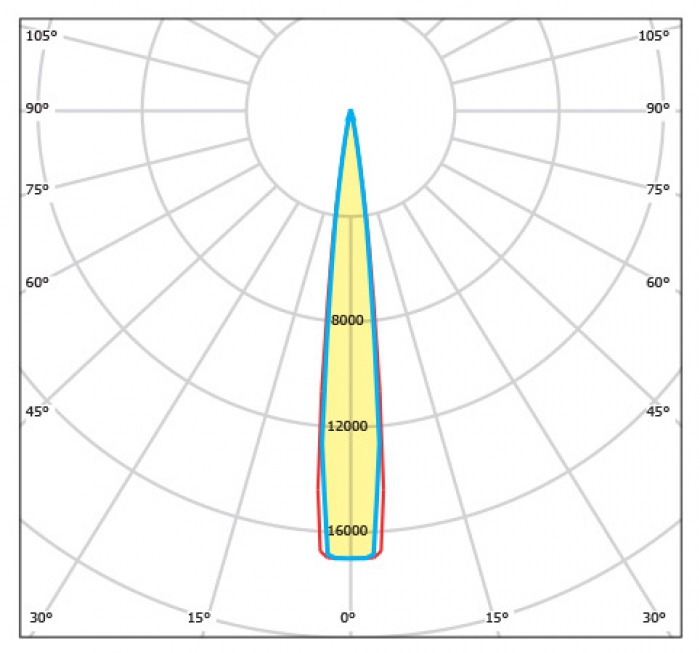

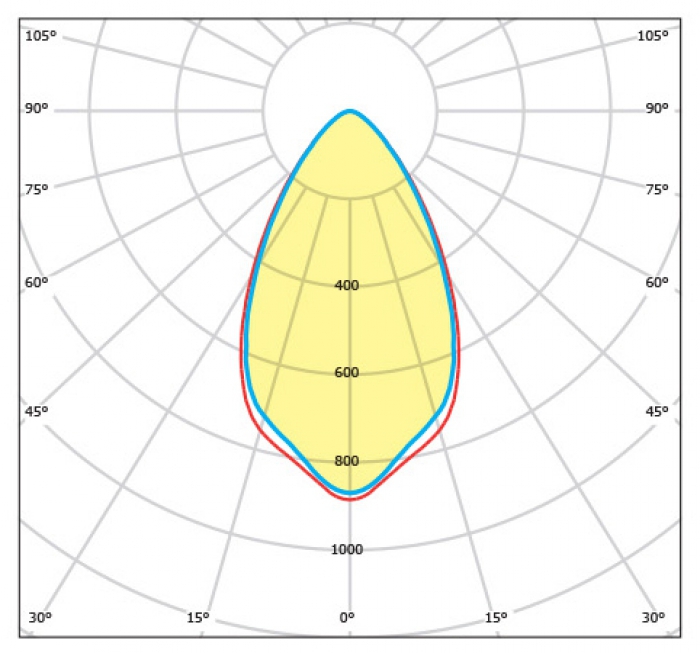

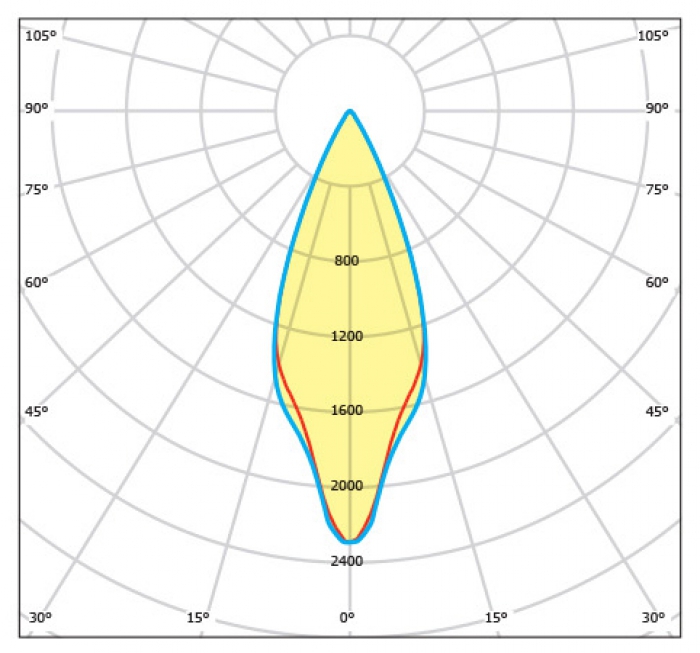

LIGHT CURVES
25°
45°
60°
ROHS NO UV NO IR LONG LIFE LED IP67 IK09 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class I Çekiç CE Aşağı ışık veriyor
