DUVAR BOYAMA / ARSEN AC 120

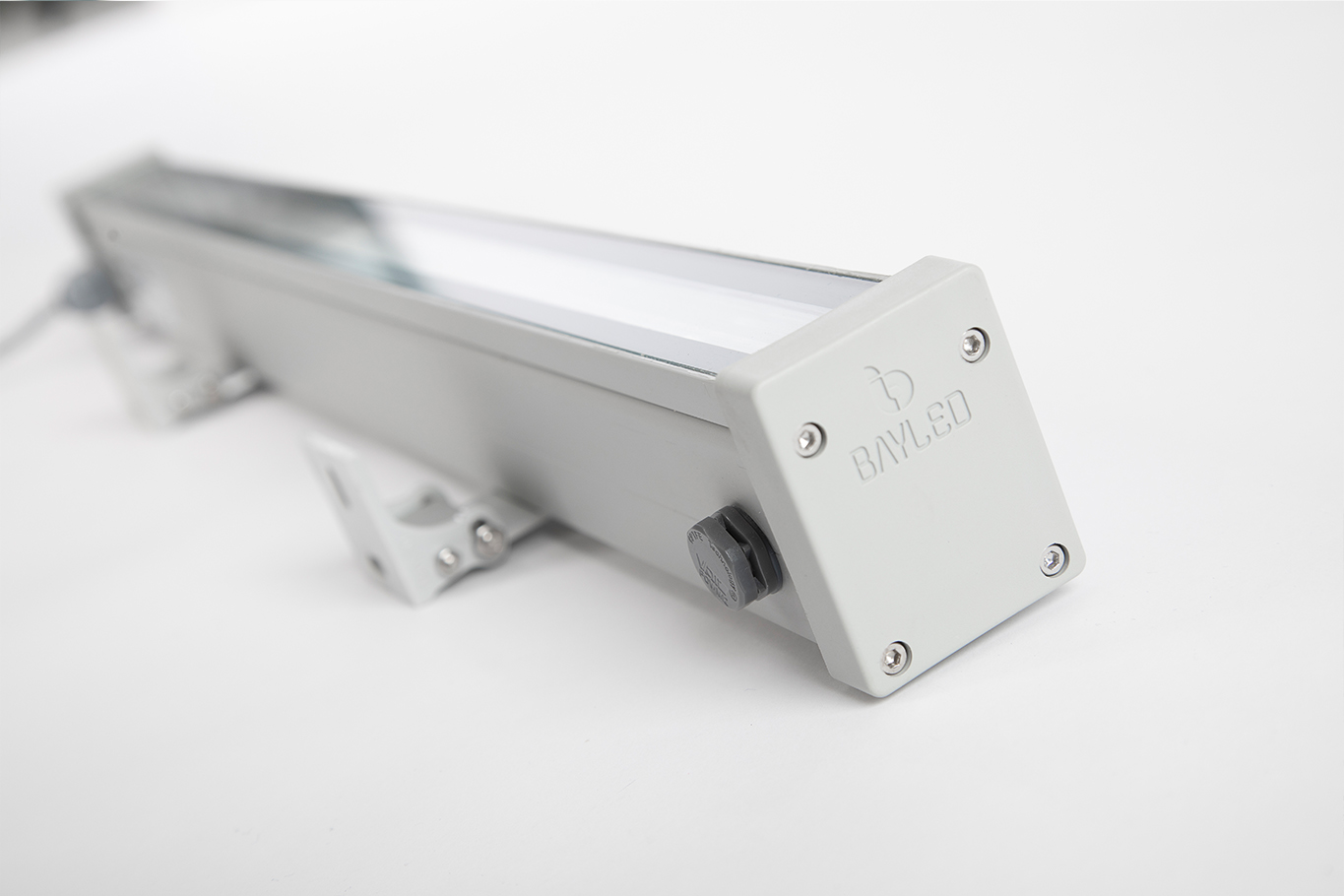

ARSEN AC 120
APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.

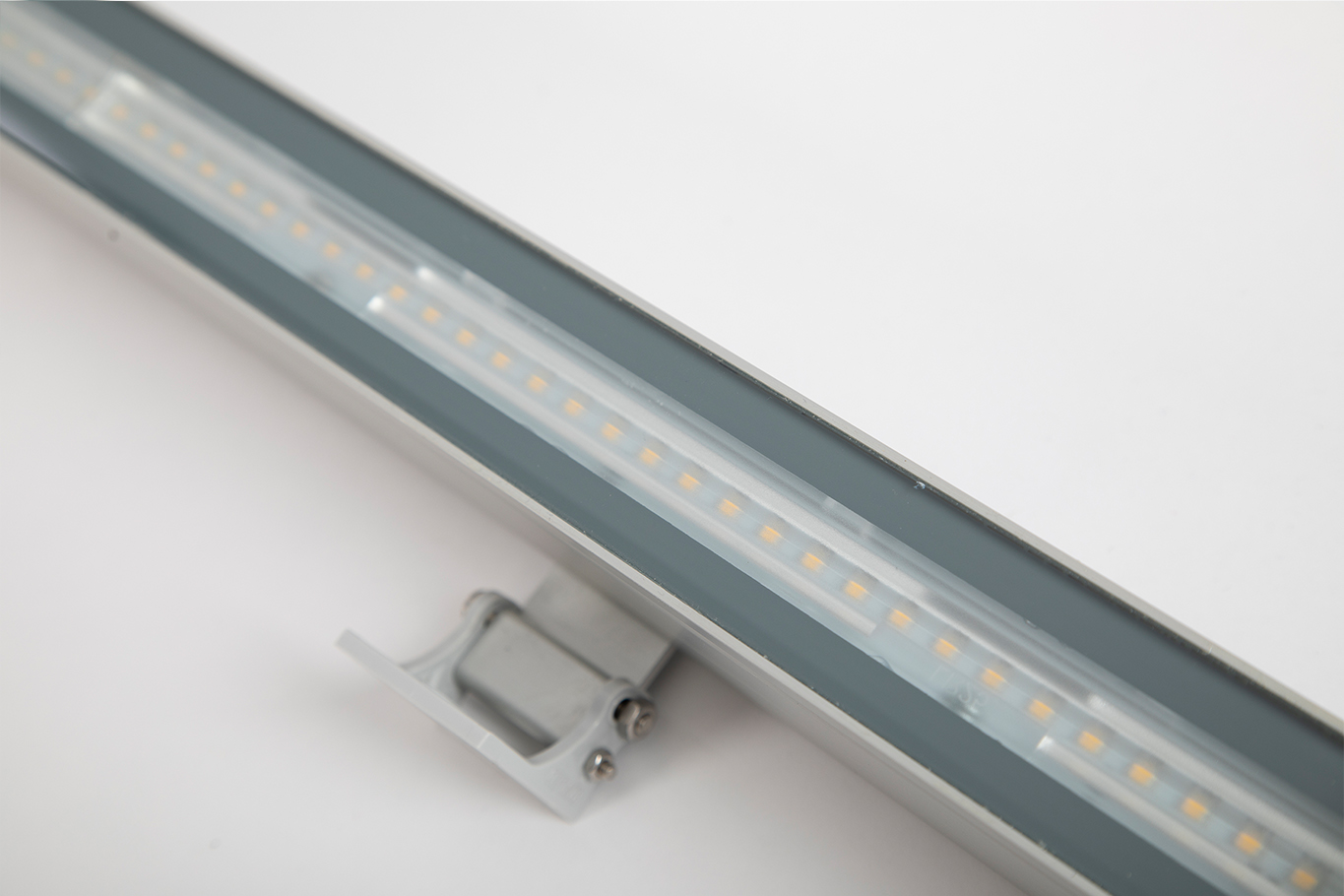

PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
polyamide and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 30°
Mounting bracket made of plastic.
Lens angle 18°- 25°- 30°x90°- 60°x110°- 90°x110°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,03 m²
Weight: 2,2kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.

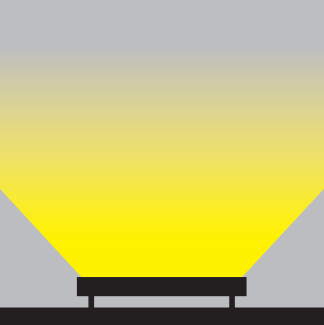

- Conformity mark.IŞIK DAĞITIMI

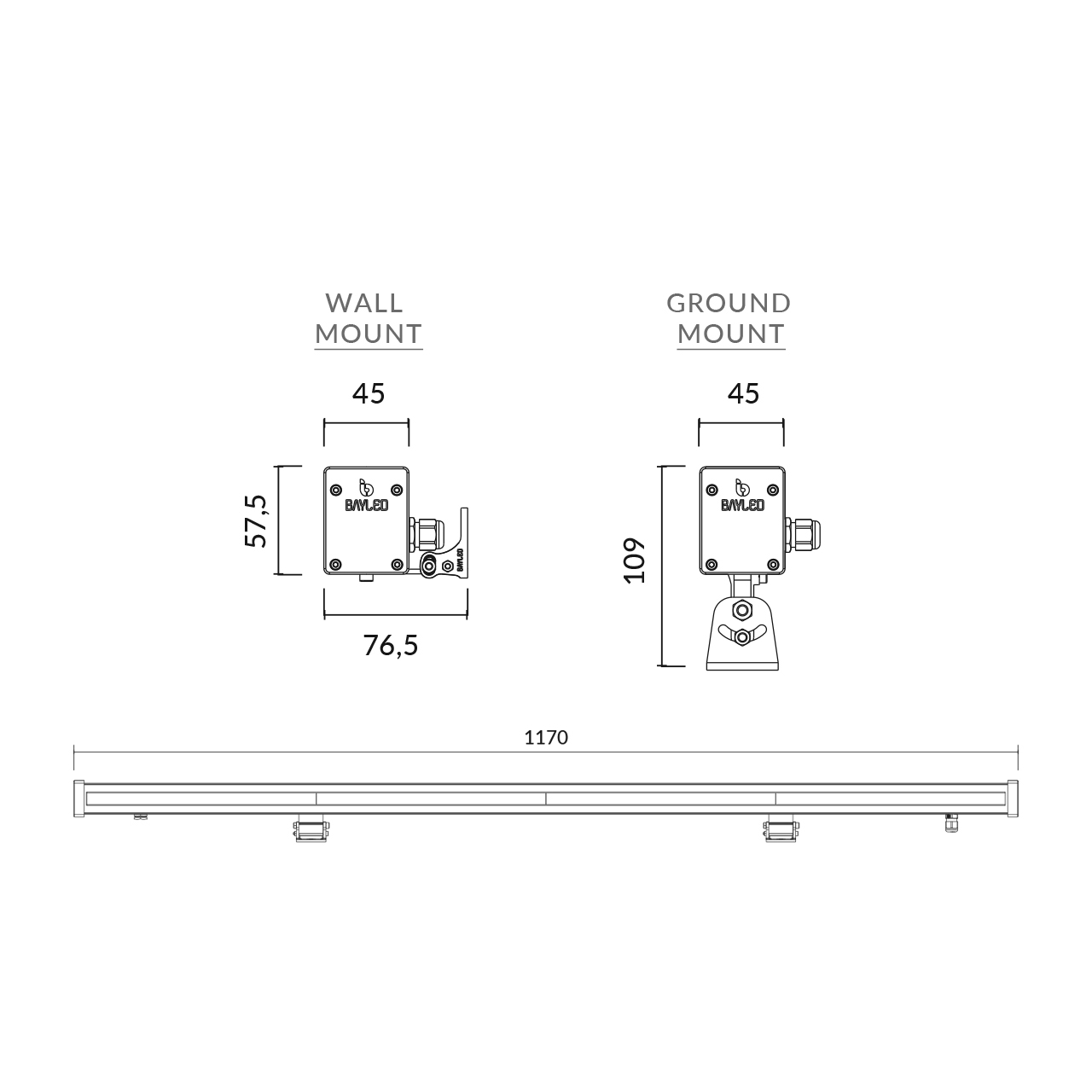

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
01-07-120-31-XX-X
31W
4853lm-5154lm
3000K-4000K
01-07-120-47-XX-X
47W
6859lm-7280lm
3000K-4000K
XX: Lens Açısı, X: Led Rengi
Standart renk sıcaklığı 4000K, istenildiği taktirde 6500K olarak üretilebilir.

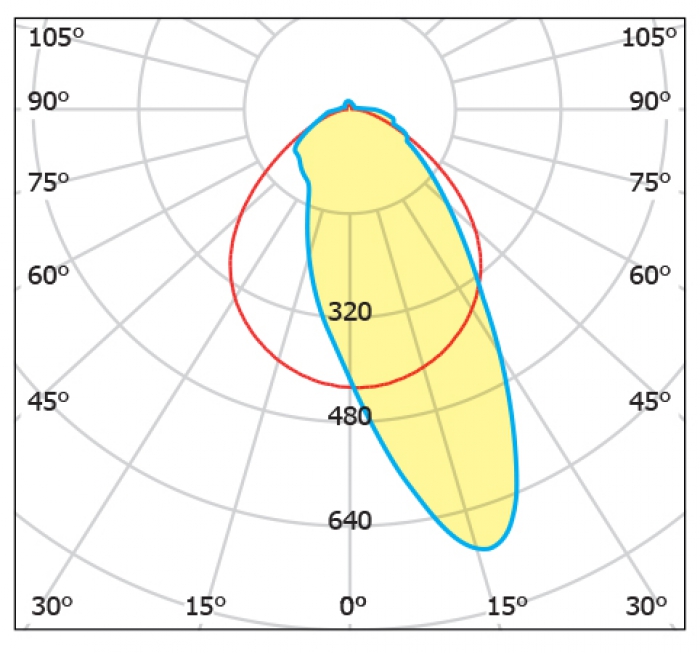

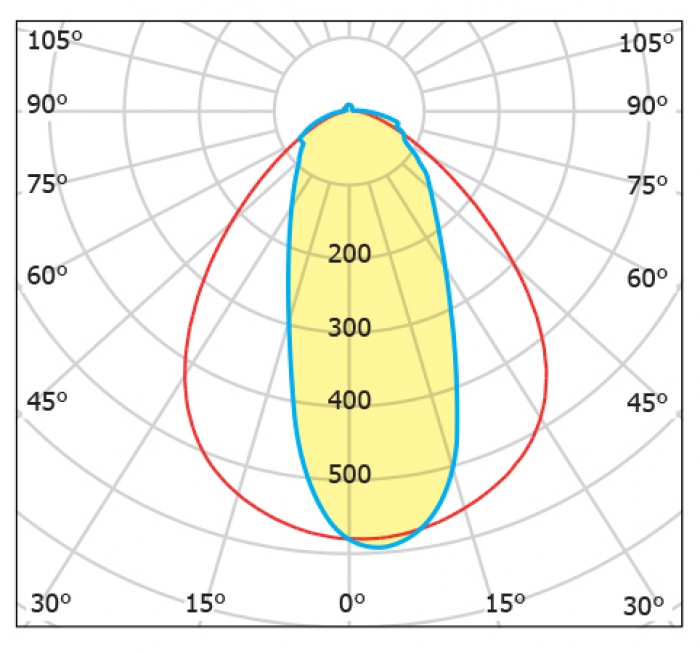

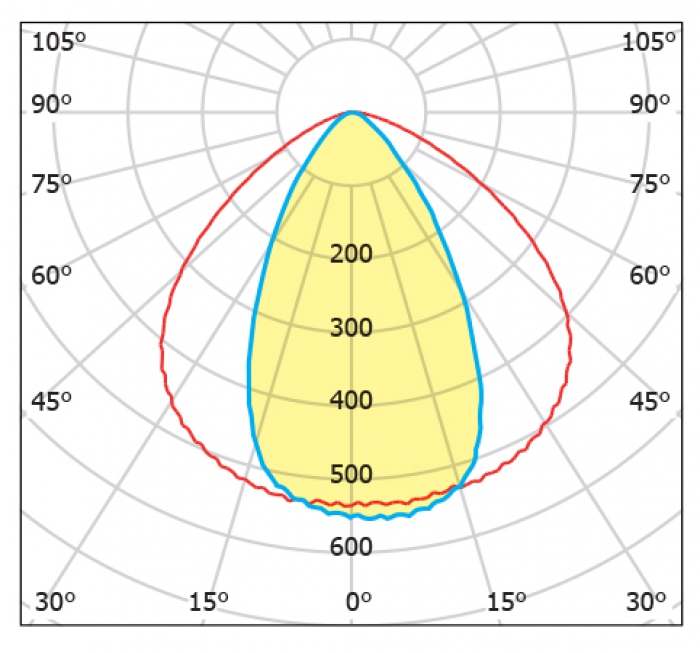

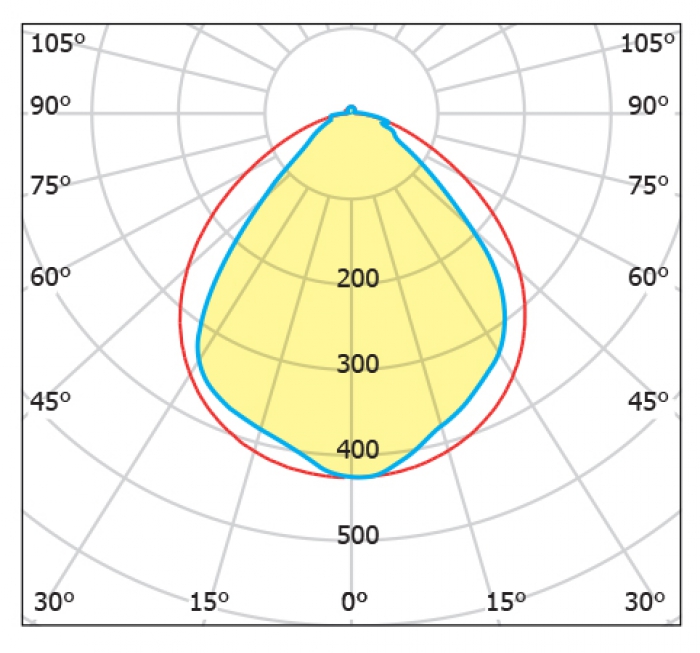

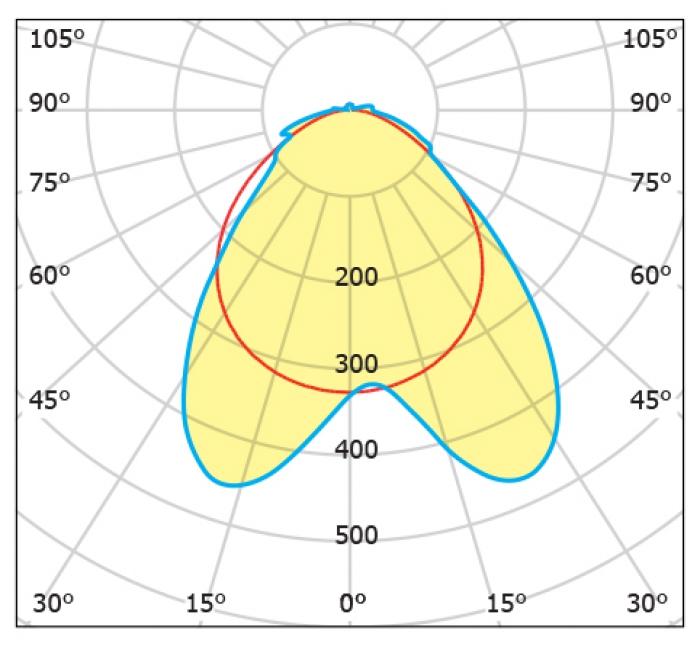

IŞIK EĞRİLERİ
18°
25°
30x90°
60x110°
90x110°
