WALLWASHERS / ARSEN AC 60

ARSEN AC 60 ARSEN AC 60

APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
polyamide and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 30°
Mounting bracket made of plastic.
Lens angle 18°- 25°- 30°x90°- 60°x110°- 90°x110°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,03 m²
Weight: 1,2kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

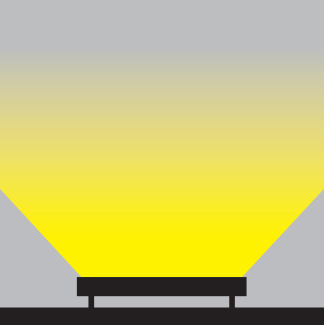

LIGHT DISTRIBUTION
ARSEN AC 60

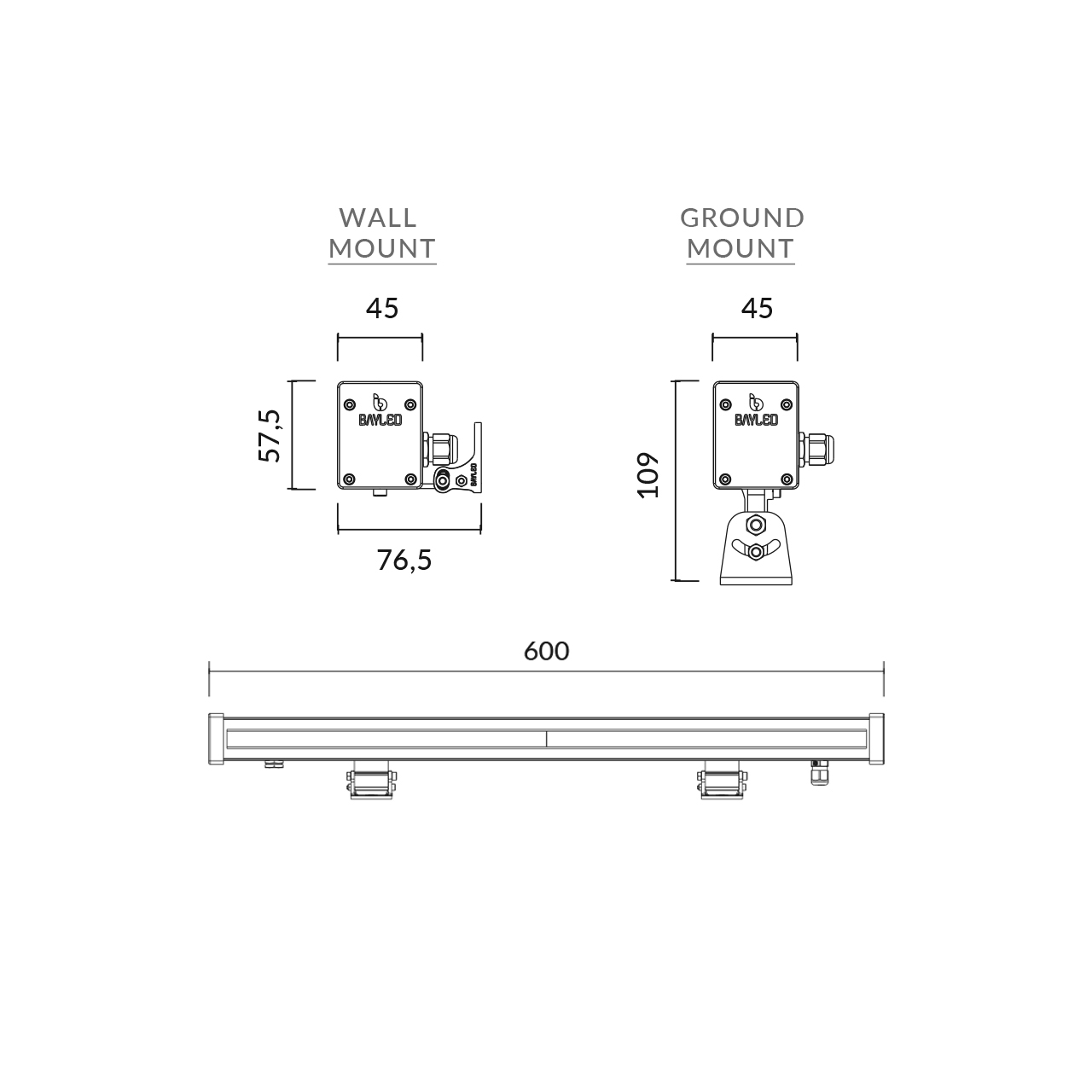

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

01-07-60-15-XX-X
15W
2426lm-2577lm
3000K-4000K

01-07-60-22-XX-X
22W
3295lm-3498lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

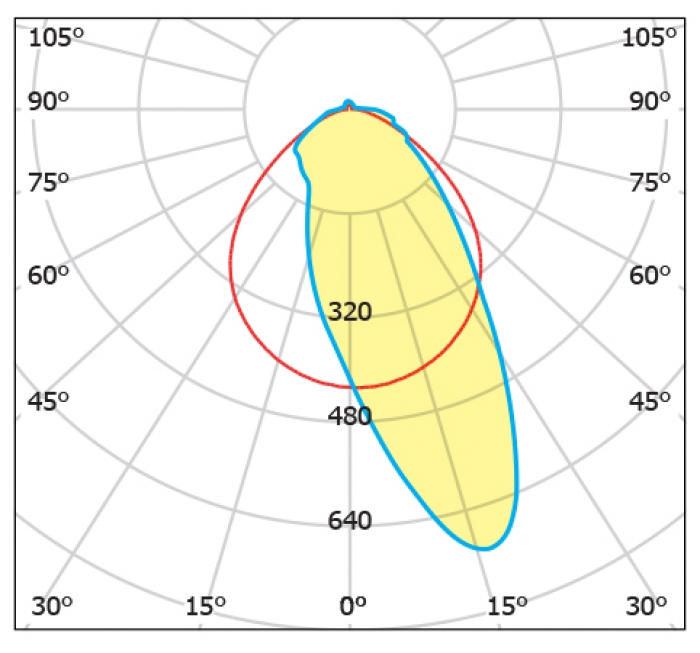

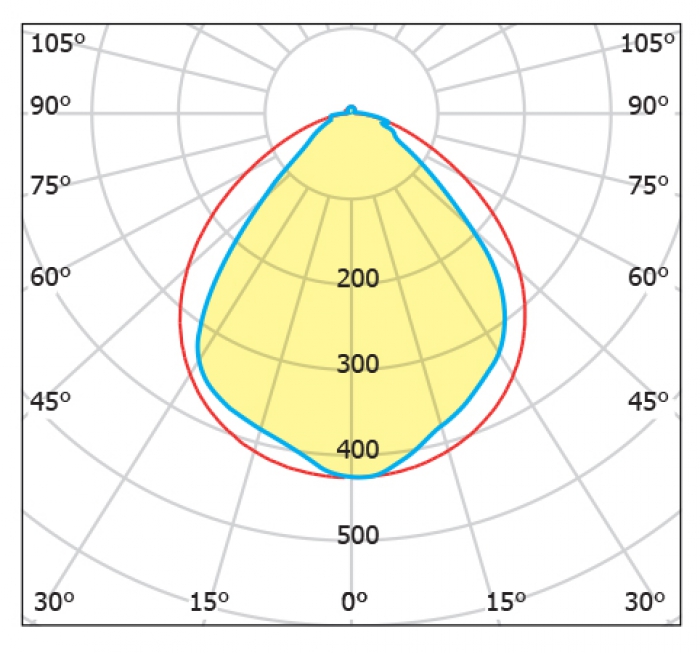

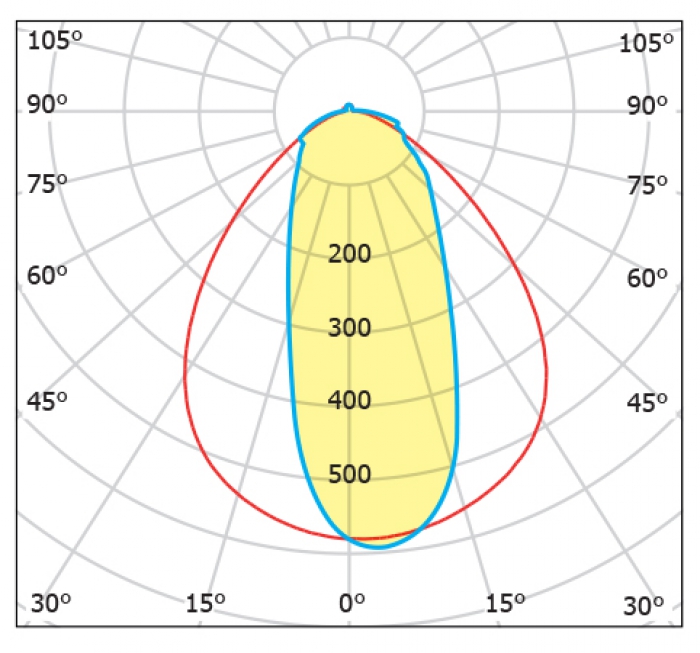

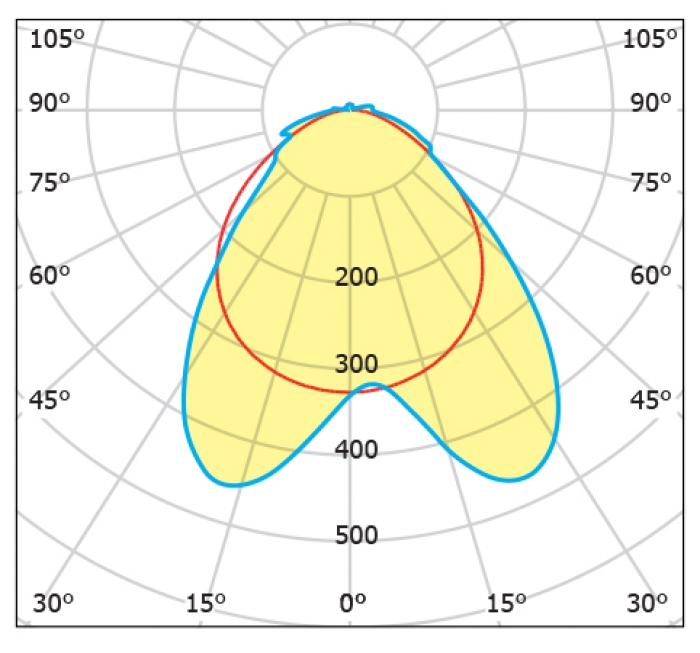

LIGHT CURVES
18°
25°
30x90°
60x110°
90x110°
