WALLWASHERS / ARSEN DC 30
ARSEN DC 30
APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
polyamide and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 30°
Mounting bracket made of plastic.
Lens angle 18°- 25°- 30°x90°- 60°x110°- 90°x110°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 24V DC
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,03 m²
Weight: 0,5kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.LIGHT DISTRIBUTION

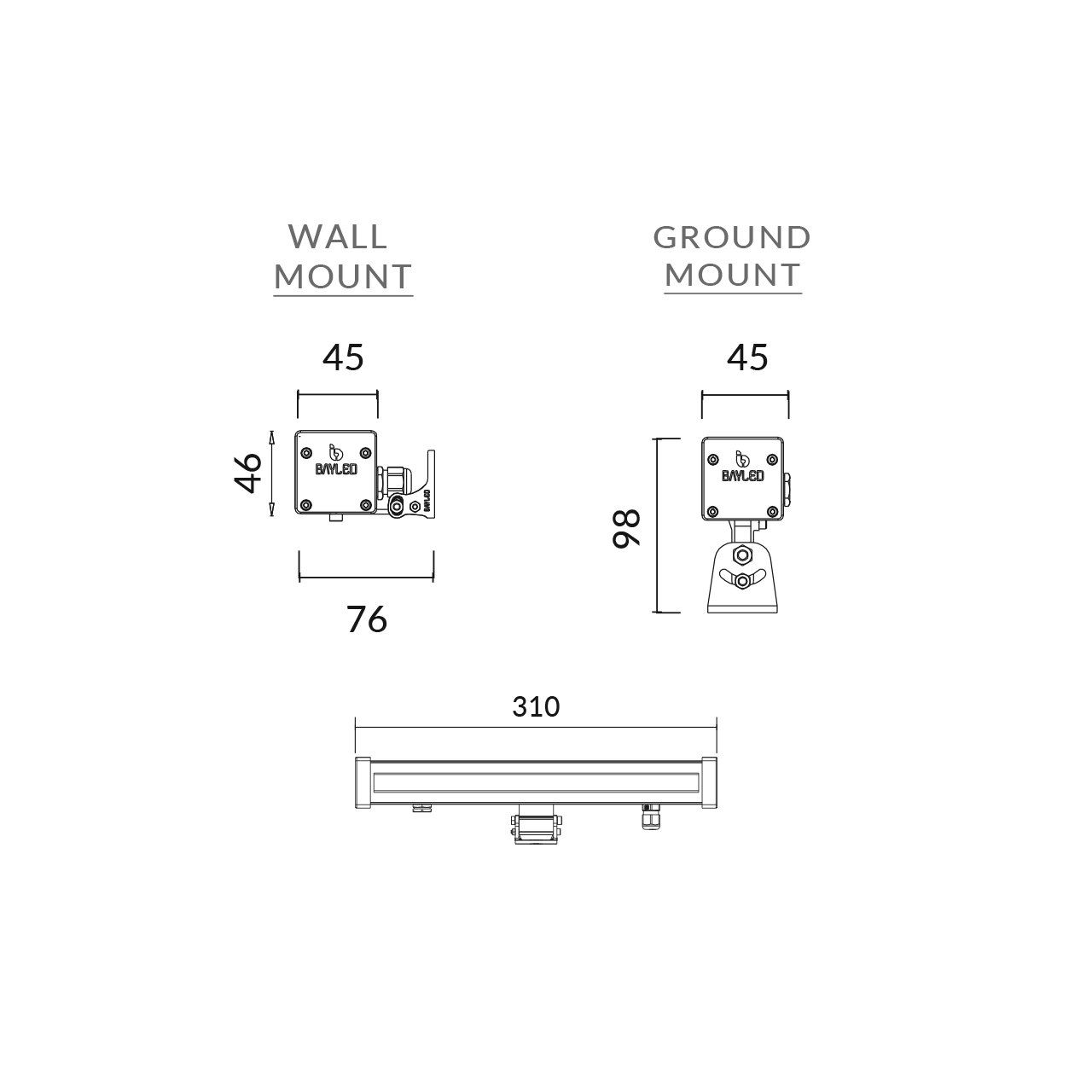

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
01-08-30-6-XX-X
6W
933lm-991lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

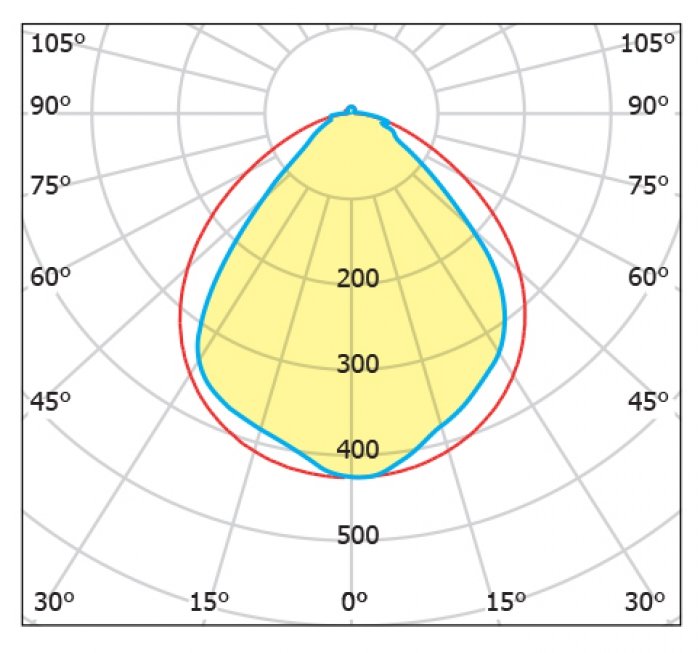

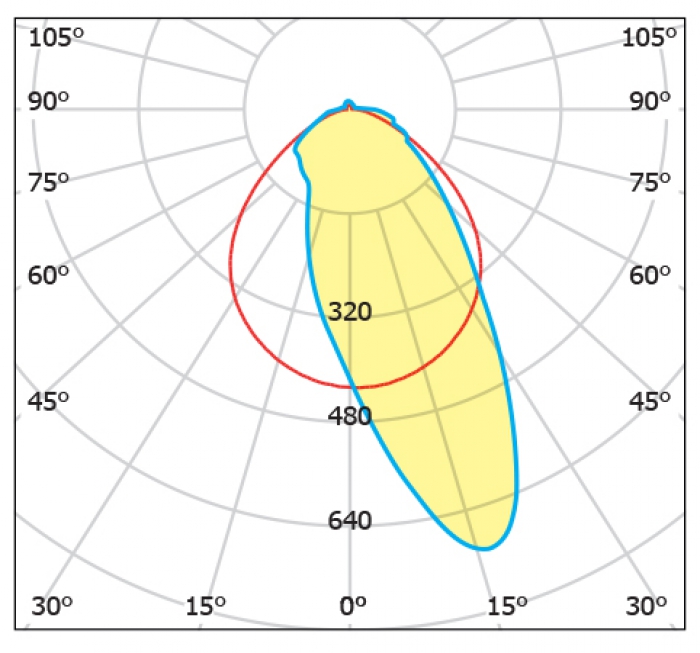

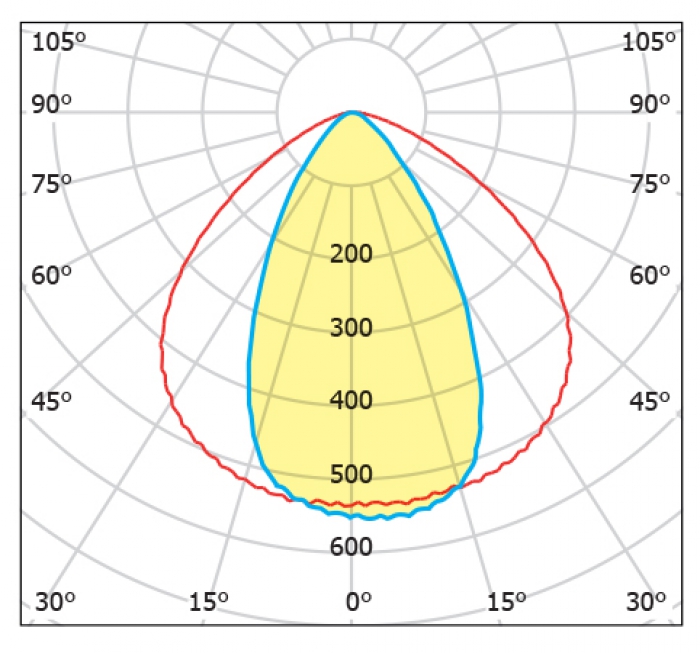

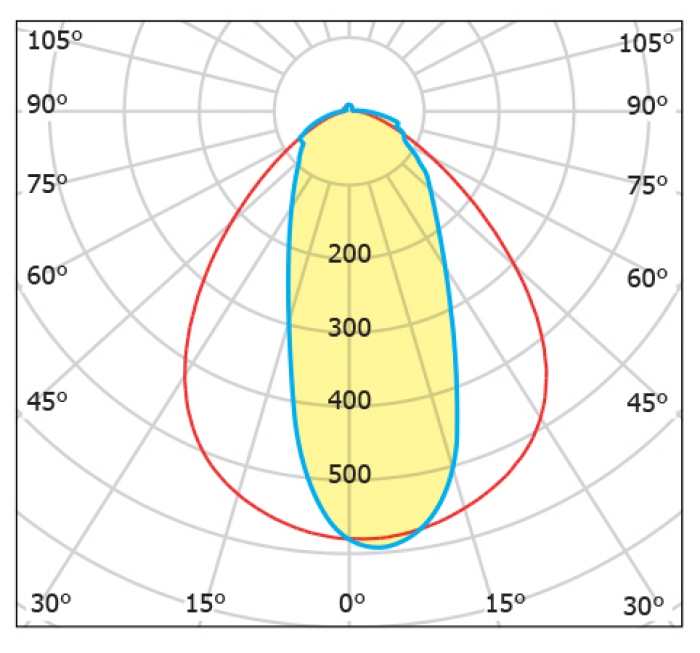

LIGHT CURVES
18°
25°
30x90°
60x110°
90x110°
