RECESSED LUMINAIRES / ASPEN RGB / RGBW(A)

ASPEN RGB / RGBW(A)

APPLICATION
LED high-performance inground with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Inground made of aluminium die cast,
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Mounting bracket made of plastic.
Electrostatic powder coating.
Lens angle 12° - 30° - 45° - 60° - 90°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 5V DC
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 0,75 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

LIGHT DISTRIBUTION
ASPEN RGB / RGBW(A)

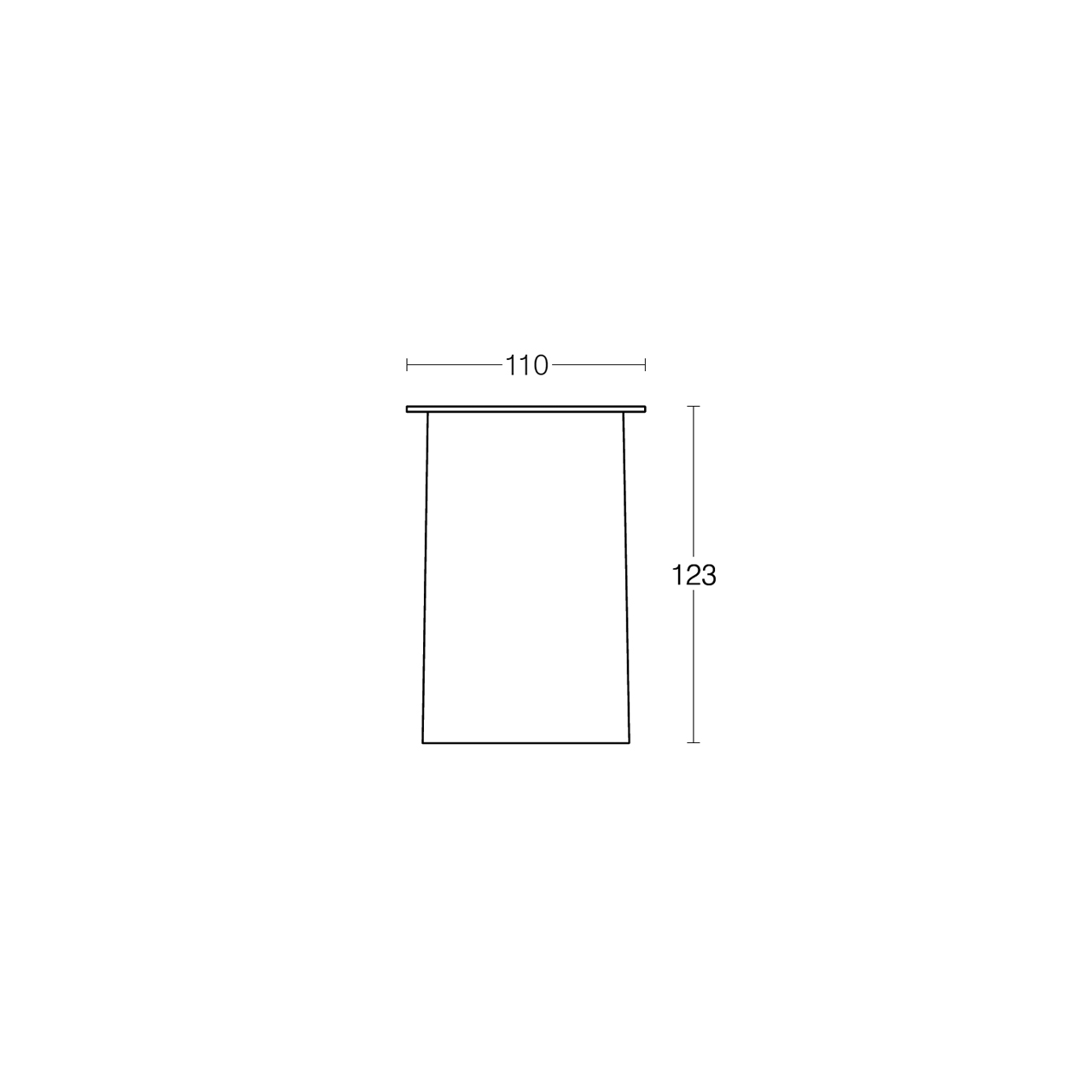

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
SPECIFICATION SHEET(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
TEST REPORTS
APPLICATIONS
PURCHASE ORDER TABLE
ASPEN RGB
CODE
POWER
COLOR TEMPERATURE

15-01-03-08-XX-RGB
6W
RGB

ASPEN RGBW(A)
CODE
POWER
COLOR TEMPERATURE

15-01-04-10-XX-RGBW
8W
RGBW(A)

XX: Lens Açısı

LIGHT CURVES
30°
ROHS NO UV NO IR LONG LIFE LED IP67 IK09 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class II Class I Çekiç CE
