URBAN LIGHTING LUMINAIRES / ATLAS
ATLAS
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution

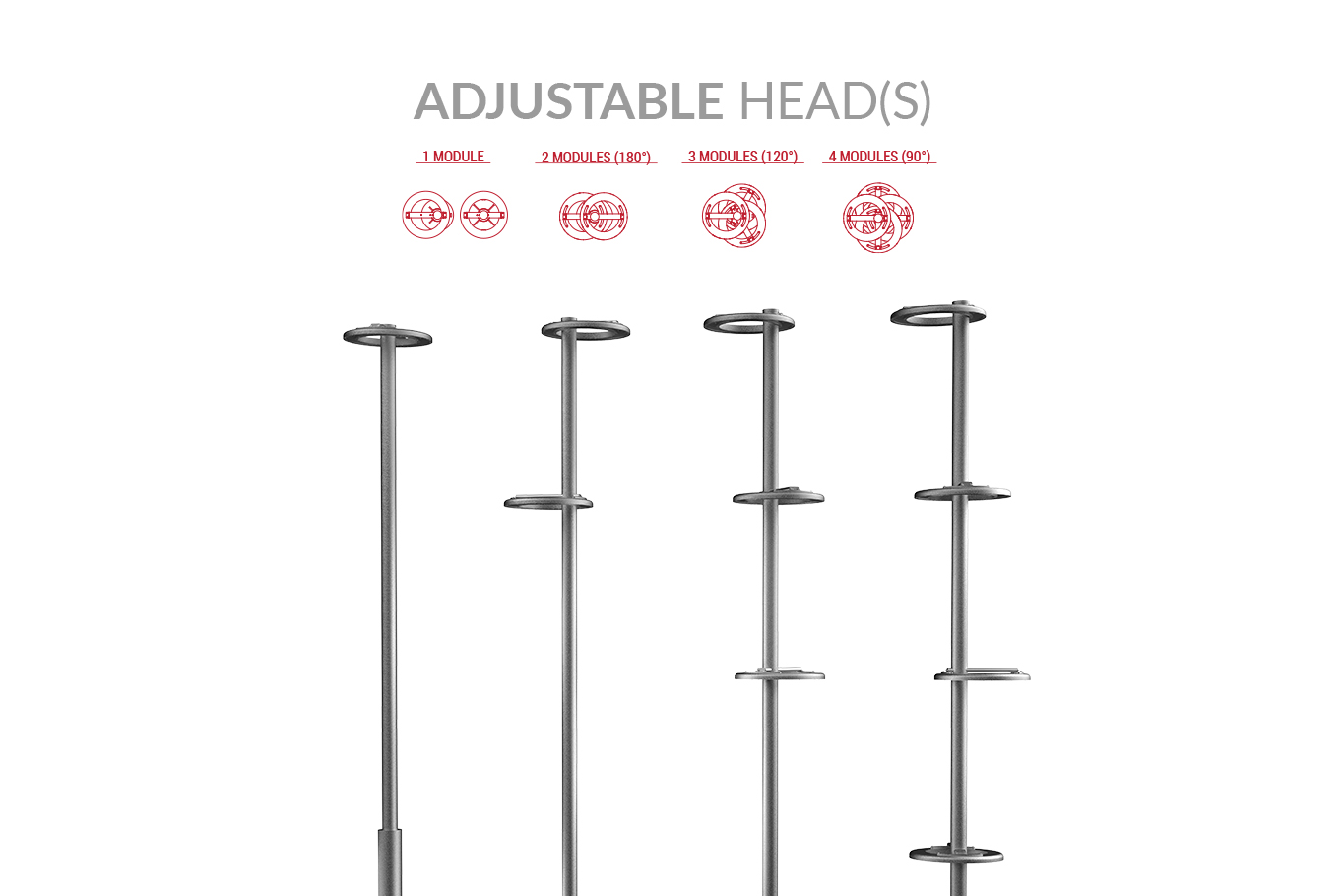

PRODUCT DESCRIPTION
Urban lights made of aluminium extrusion & die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

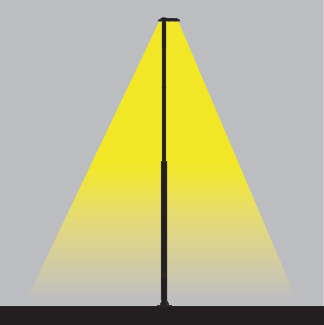

- Conformity mark.LIGHT DISTRIBUTION

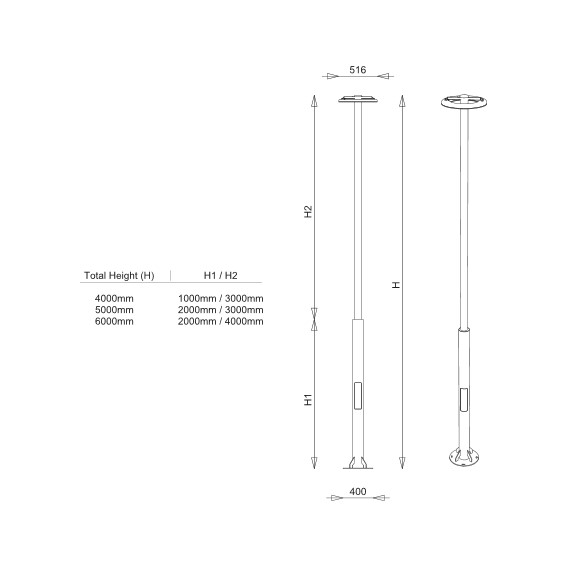

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
HEIGHT
60-74-025-40-40-040-0-X
40W
4984lm - 5680lm
3000K-4000K
4m
60-74-025-40-40-050-0-X
40W
4984lm - 5680lm
3000K-4000K
5m
60-74-025-40-40-060-0-X
40W
4984lm - 5680lm
3000K-4000K
6m
60-74-025-50-40-040-0-X
50W
6094lm - 6542lm
3000K-4000K
4m
60-74-025-50-40-050-0-X
50W
6094lm - 6542lm
3000K-4000K
5m
60-74-025-50-40-060-0-X
50W
6094lm - 6542lm
3000K-4000K
6m
60-74-025-60-40-040-0-X
60W
7240lm - 7772lm
3000K-4000K
4m
60-74-025-60-40-050-0-X
60W
7240lm - 7772lm
3000K-4000K
5m
60-74-025-60-40-060-0-X
60W
7240lm - 7772lm
3000K-4000K
6m
60-74-025-70-40-040-0-X
70W
8160lm - 8759lm
3000K-4000K
4m
60-74-025-70-40-050-0-X
70W
8160lm - 8759lm
3000K-4000K
5m
60-74-025-70-40-060-0-X
70W
8160lm - 8759lm
3000K-4000K
6m
60-74-025-80-40-040-0-X
80W
9184lm - 9860lm
3000K-4000K
4m
60-74-025-80-40-050-0-X
80W
9184lm - 9860lm
3000K-4000K
5m
60-74-025-80-40-060-0-X
80W
9184lm - 9860lm
3000K-4000K
6m
60-74-025-90-40-040-0-X
90W
10059lm - 10799lm
3000K-4000K
4m
60-74-025-90-40-050-0-X
90W
10059lm - 10799lm
3000K-4000K
5m
60-74-025-90-40-060-0-X
90W
10059lm - 10799lm
3000K-4000K
6m
X: Led Color
LIGHT CURVES
