ATLAS QUADRA
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium extrusion & die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

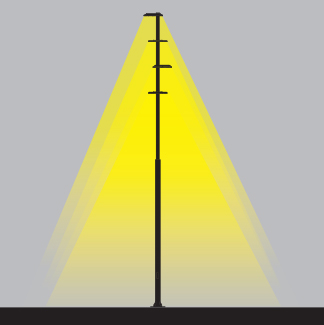

- Conformity mark.IŞIK DAĞITIMI

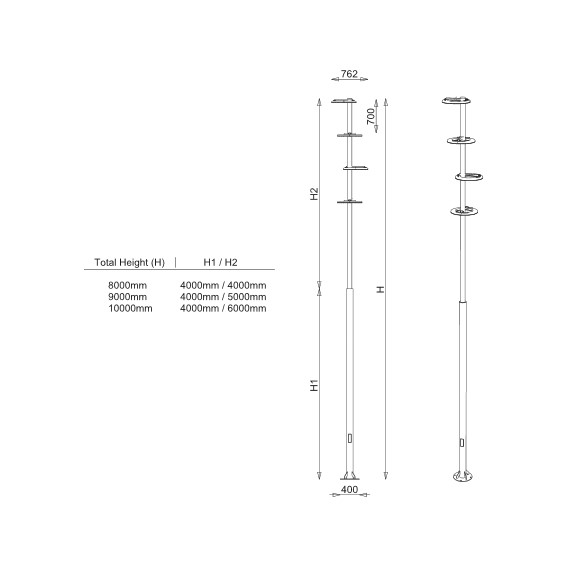

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
YÜKSEKLİK
60-74-028-160-160-080-0-X
160W
19938lm - 21404lm
3000K-4000K
8m
60-74-028-160-160-090-0-X
160W
19938lm - 21404lm
3000K-4000K
9m
60-74-028-160-160-0100-0-X
160W
19938lm - 21404lm
3000K-4000K
10m
60-74-028-200-160-080-0-X
200W
24376lm - 26168lm
3000K-4000K
8m
60-74-028-200-160-090-0-X
200W
24376lm - 26168lm
3000K-4000K
9m
60-74-028-200-160-0100-0-X
200W
24376lm - 26168lm
3000K-4000K
10m
60-74-028-240-160-080-0-X
240W
28961lm - 31090lm
3000K-4000K
8m
60-74-028-240-160-090-0-X
240W
28961lm - 31090lm
3000K-4000K
9m
60-74-028-240-160-0100-0-X
240W
28961lm - 31090lm
3000K-4000K
10m
60-74-028-280-160-080-0-X
280W
32638lm - 35038lm
3000K-4000K
8m
60-74-028-280-160-090-0-X
280W
32638lm - 35038lm
3000K-4000K
9m
60-74-028-280-160-0100-0-X
280W
32638lm - 35038lm
3000K-4000K
10m
60-74-028-320-160-080-0-X
320W
36485lm - 39168lm
3000K-4000K
8m
60-74-028-320-160-090-0-X
320W
36485lm - 39168lm
3000K-4000K
9m
60-74-028-320-160-0100-0-X
320W
36485lm - 39168lm
3000K-4000K
10m
60-74-028-360-160-080-0-X
360W
40239lm - 43198lm
3000K-4000K
8m
60-74-028-360-160-090-0-X
360W
40239lm - 43198lm
3000K-4000K
9m
60-74-028-360-160-0100-0-X
360W
40239lm - 43198lm
3000K-4000K
10m
X: Led Rengi

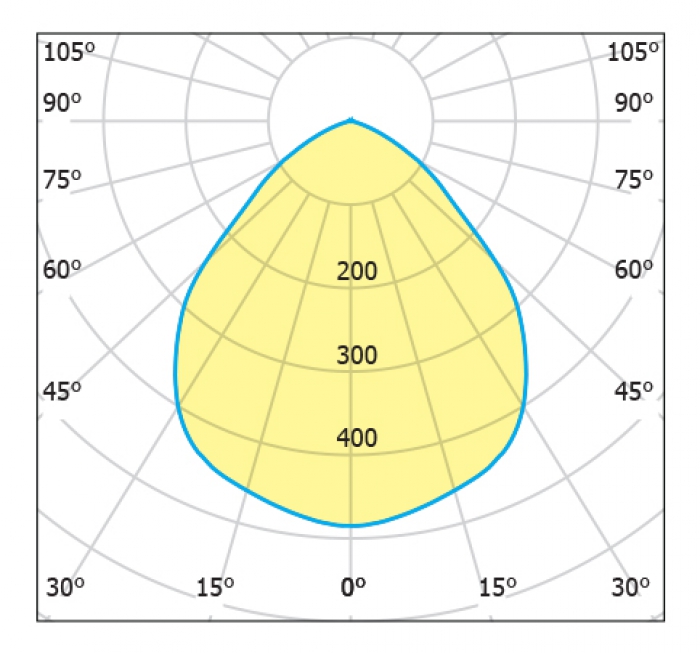

IŞIK EĞRİLERİ
