ATLAS TRIPLE
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium extrusion & die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

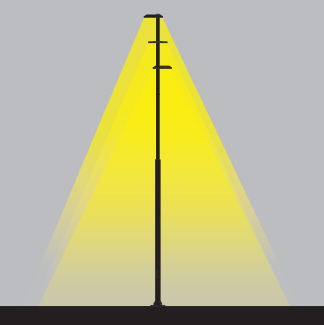

- Conformity mark.IŞIK DAĞITIMI

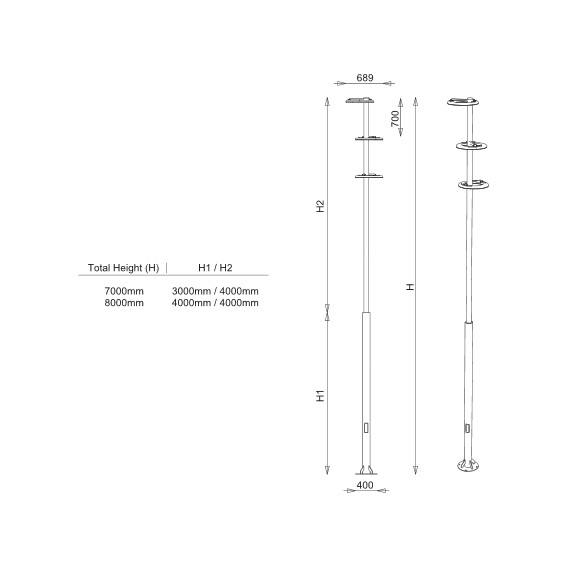

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
YÜKSEKLİK
60-74-027-120-120-070-0-X
120W
14953lm - 16053lm
3000K-4000K
7m
60-74-027-120-120-080-0-X
120W
14953lm - 16053lm
3000K-4000K
8m
60-74-027-150-120-070-0-X
150W
18282lm - 19626lm
3000K-4000K
7m
60-74-027-150-120-080-0-X
150W
18282lm - 19626lm
3000K-4000K
8m
60-74-027-180-120-070-0-X
180W
21720lm - 23317lm
3000K-4000K
7m
60-74-027-180-120-080-0-X
180W
21720lm - 23317lm
3000K-4000K
8m
60-74-027-210-120-070-0-X
210W
24479lm - 26279lm
3000K-4000K
7m
60-74-027-210-120-080-0-X
210W
24479lm - 26279lm
3000K-4000K
8m
60-74-027-240-120-070-0-X
240W
27364lm - 29376lm
3000K-4000K
7m
60-74-027-240-120-080-0-X
240W
27364lm - 29376lm
3000K-4000K
8m
60-74-027-270-120-070-0-X
270W
30179lm - 32399lm
3000K-4000K
7m
60-74-027-270-120-080-0-X
270W
30179lm - 32399lm
3000K-4000K
8m
X: Led Rengi

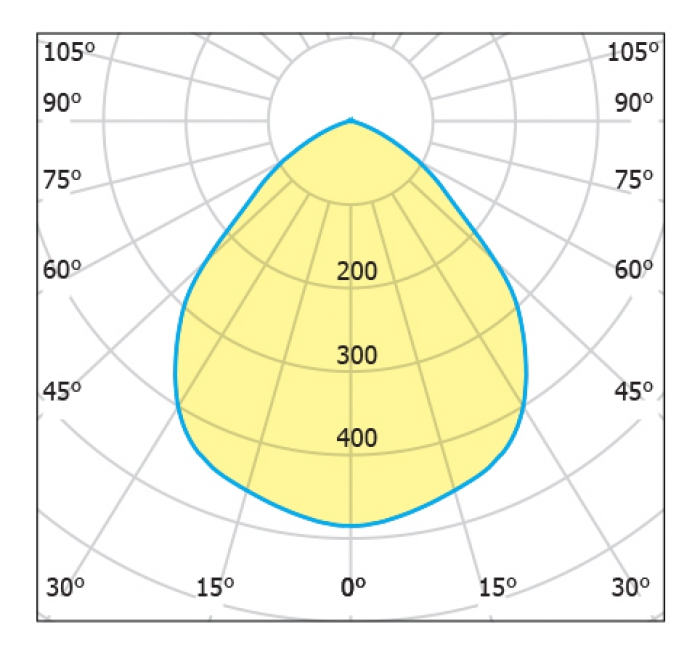

IŞIK EĞRİLERİ
