CATENARY LUMINAIRES / CIRCLE M CATENARY

CIRCLE M CATENARY CIRCLE M CATENARY CIRCLE M CATENARY

APPLICATION
LED high-performance High-Bays with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
High-Bays made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel with
Electrostatic powder coating.
Lens angle 40°- 60°- 90°
Colour standard MT-X6-23
Optional RAL codes.
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,08 m²
Weight: 5,7 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

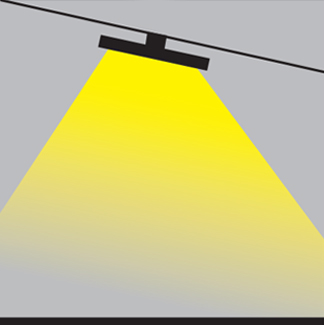

LIGHT DISTRIBUTION
CIRCLE M CATENARY

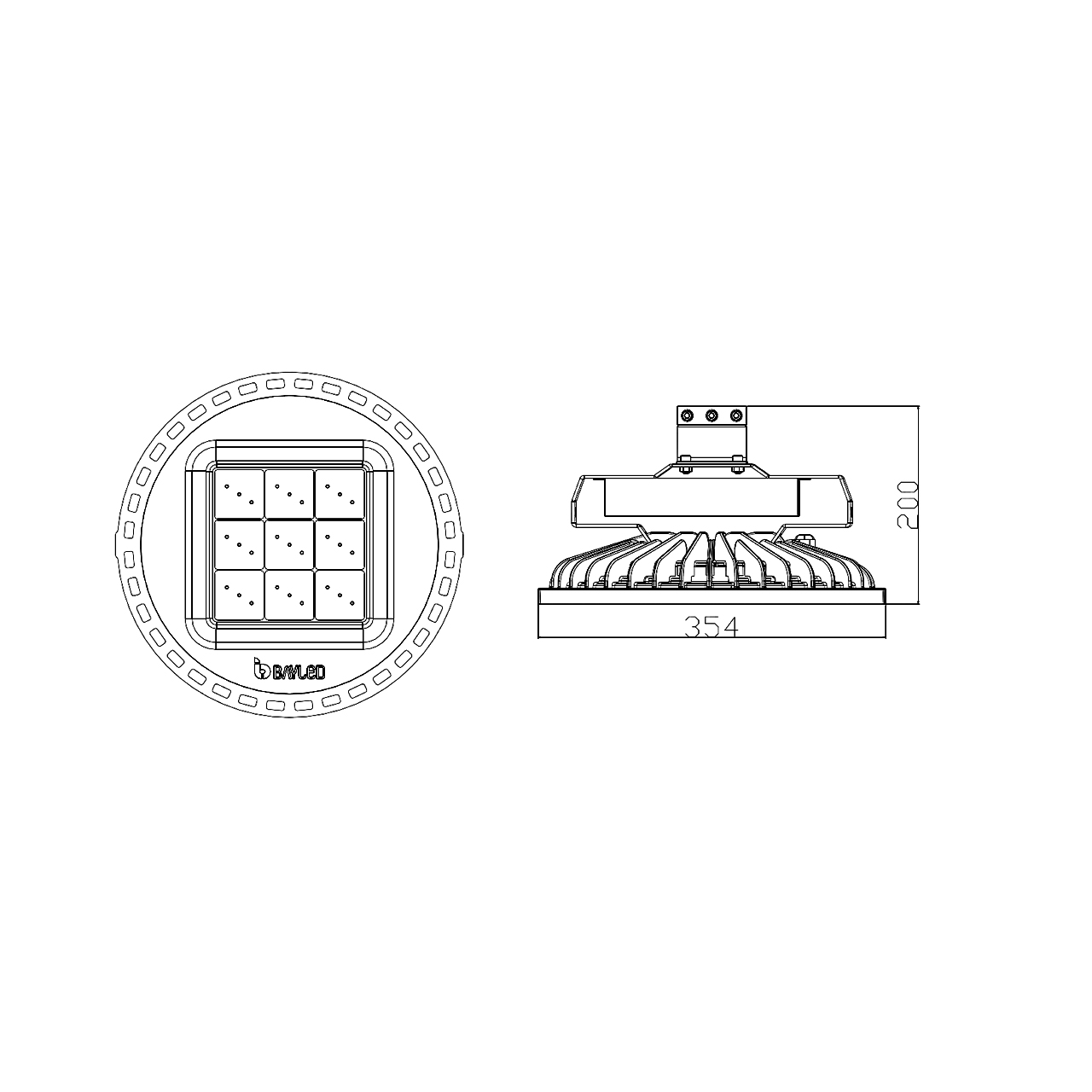

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
80-108 LED - STANDART LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-002-45-80-XX-X
45W
6789lm - 7144lm
3000K-4000K

80-002-60-108-XX-X
60W
9072lm - 9546lm
3000K-4000K

80-002-90-80-XX-X
90W
11801lm - 12418lm
3000K-4000K

80-002-120-108-XX-X
120W
15373lm - 16177lm
3000K-4000K

136 LED - HIGH LUMEN OUTPUT

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-002-140-136-XX-X
140W
18337lm – 19295lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

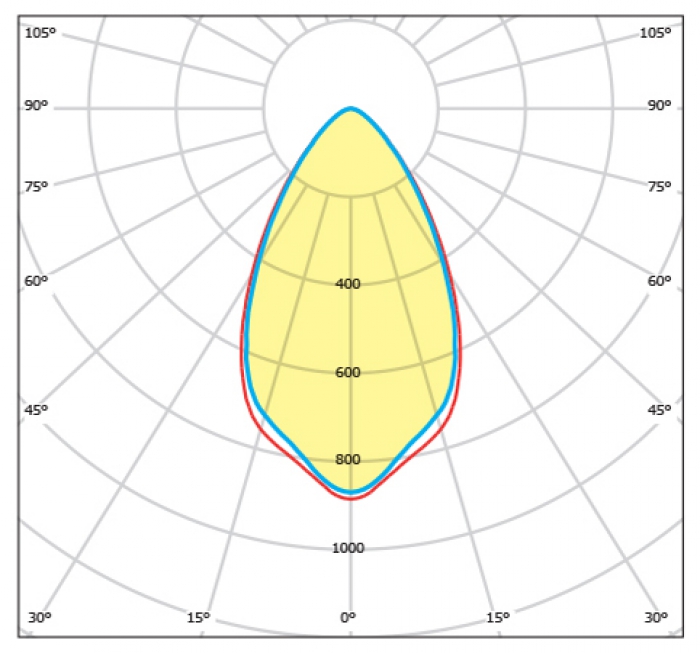

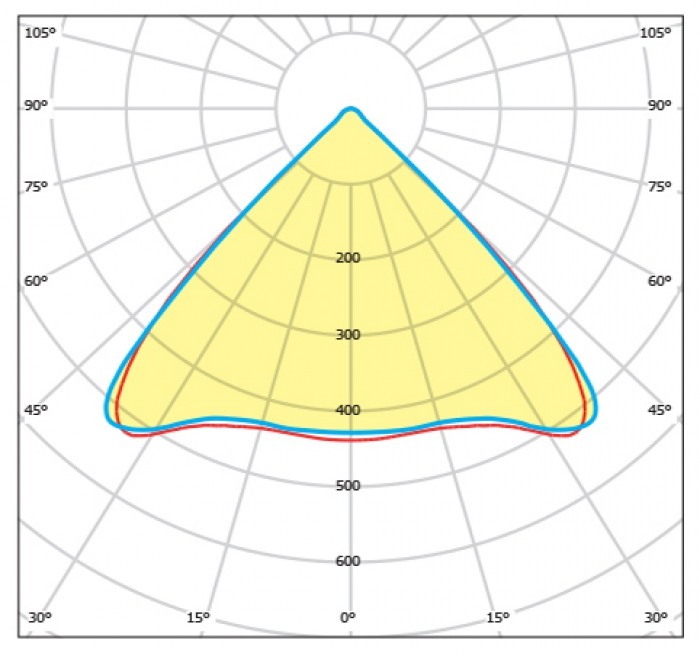

LIGHT CURVES
40°
60°
90°
