SURFACE MOUNT LUMINAIRES / DIO RGB / RGBW(A)
DIO RGB / RGBW(A)
APPLICATION
LED high-performance surface mounted with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Surface mounted made of aluminium die cast,
Aluminium and stainless steel.
Clear 3mm polycarbon glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 15°- 25°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 5V DC
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Operation temperature -25°C / +55°C
Weight: 0,49 kg
Complies with European standards
EN 60598 and CE certificate.

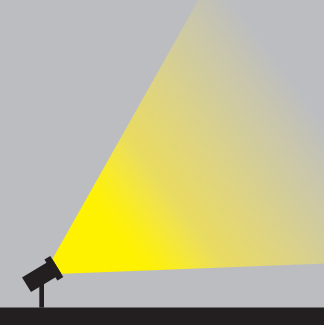

-- Conformity mark.LIGHT DISTRIBUTION
TECHNICAL DRAWING
PURCHASE ORDER TABLE
DIO RGB
CODE
POWER
COLOR TEMPERATURE
20-04-01-08-XX-RGB
6W
RGB
DIO RGBW
CODE
POWER
COLOR TEMPERATURE
20-04-01-10-XX-RGBW
8W
RGBW(A)
XX: Lens Açısı
LIGHT CURVES
15°
25°
