KENTSEL AYDINLATMA / DORA ROUND

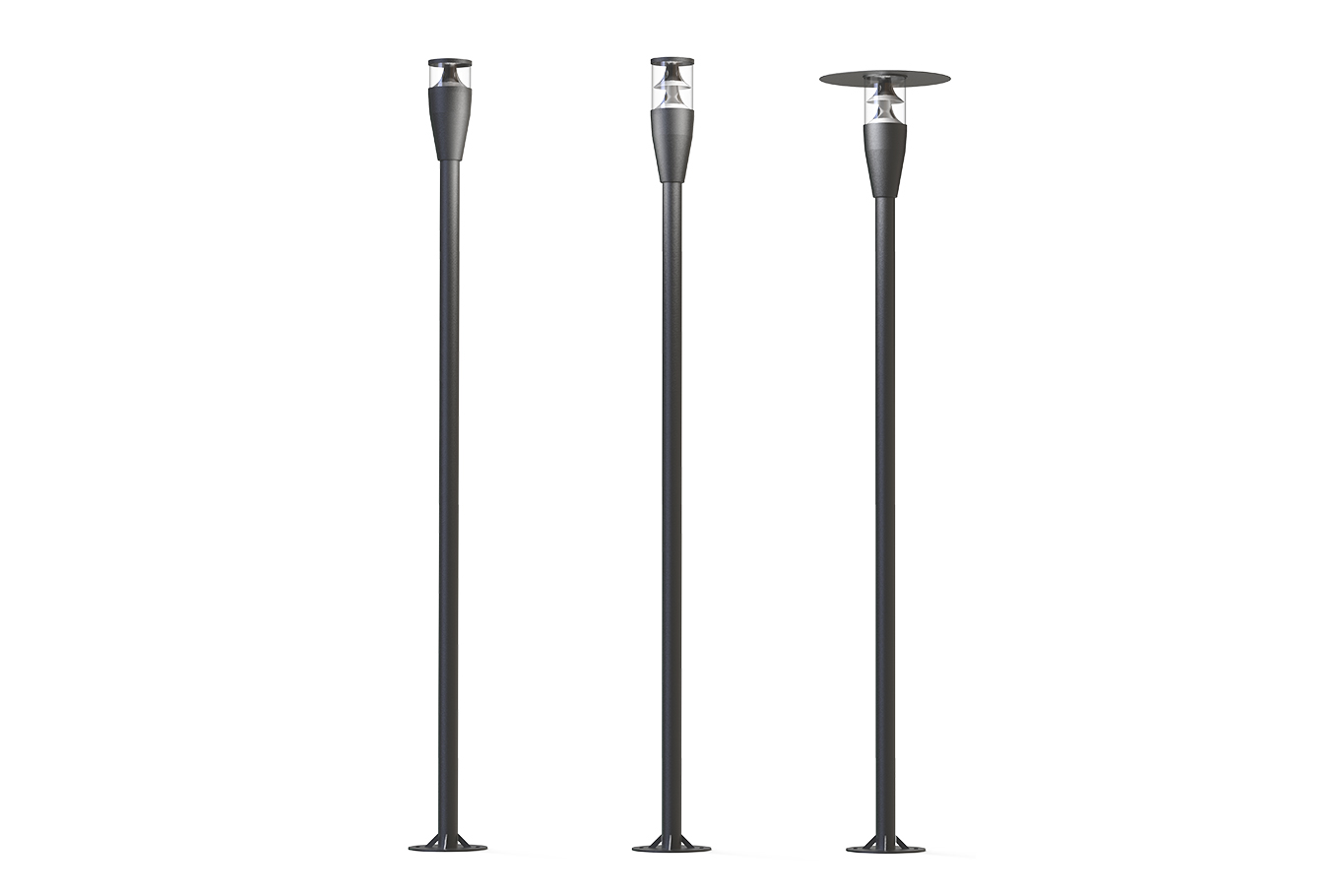

DORA ROUND
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium extrusion & die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.
- Conformity mark.IŞIK DAĞITIMI

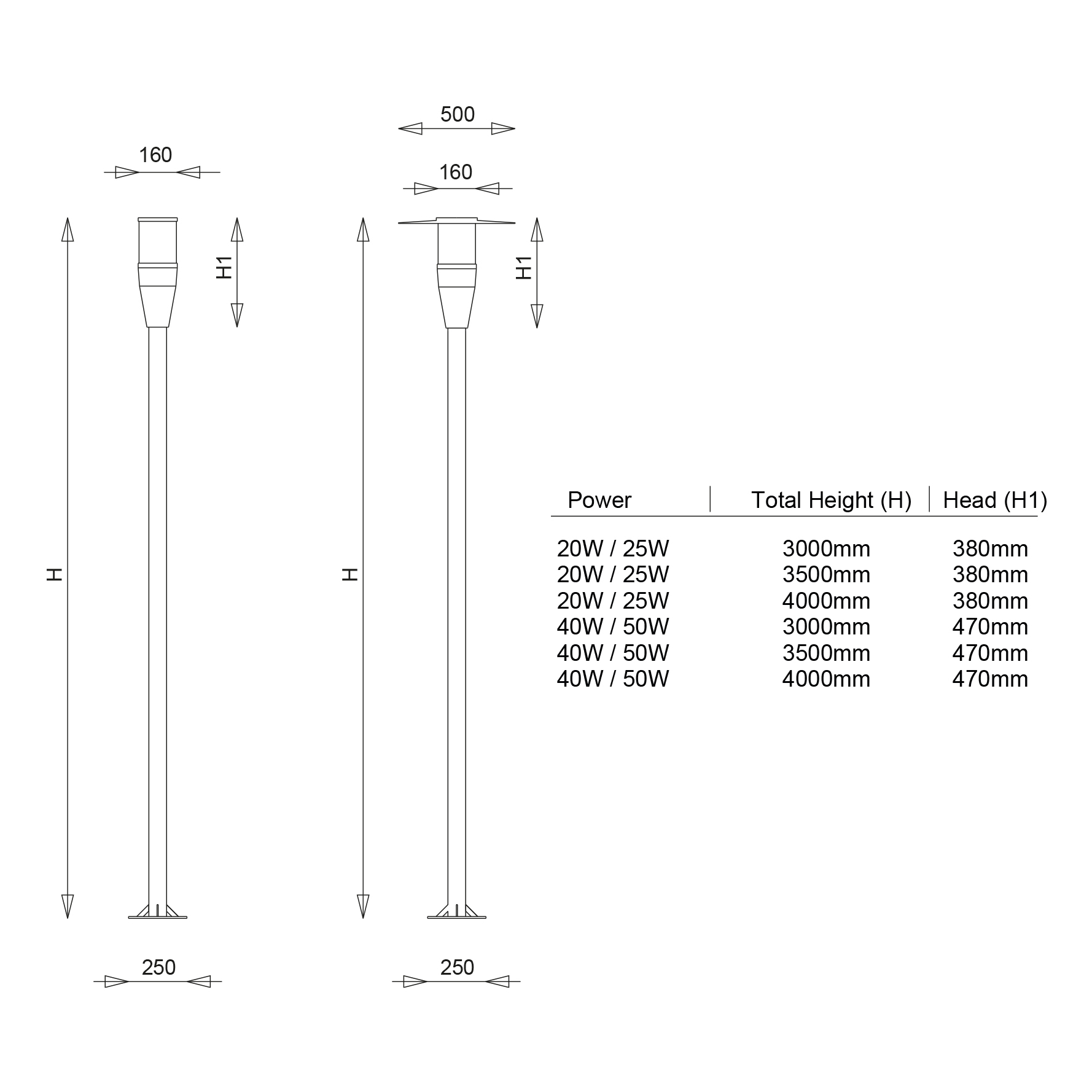

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
YÜKSEKLİK
60-74-021-20-54-03-0-X (1 MODÜL)
20W
2756lm - 2802lm
3000K-4000K
3m
60-74-021-20-54-035-0-X (1 MODÜL)
20W
2756lm - 2802lm
3000K-4000K
3,5m
60-74-021-20-54-04-0-X (1 MODÜL)
20W
2756lm - 2802lm
3000K-4000K
4m
60-74-021-25-54-03-0-X (1 MODÜL)
25W
3250lm - 3350lm
3000K-4000K
3m
60-74-021-25-54-035-0-X (1 MODÜL)
25W
3250lm - 3350lm
3000K-4000K
3,5m
60-74-021-25-54-04-0-X (1 MODÜL)
25W
3250lm - 3350lm
3000K-4000K
4m
60-74-021-40-108-03-0-X (2 MODÜL)
40W
5480lm - 5680lm
3000K-4000K
3m
60-74-021-40-108-035-0-X (2 MODÜL)
40W
5480lm - 5680lm
3000K-4000K
3,5m
60-74-021-40-108-04-0-X (2 MODÜL)
40W
5480lm - 5680lm
3000K-4000K
4m
60-74-021-50-108-03-0-X (2 MODÜL)
50W
6512lm - 6705lm
3000K-4000K
3m
60-74-021-50-108-035-0-X (2 MODÜL)
50W
6512lm - 6705lm
3000K-4000K
3,5m
60-74-021-50-108-04-0-X (2 MODÜL)
50W
6512lm - 6705lm
3000K-4000K
4m
X: Led Rengi

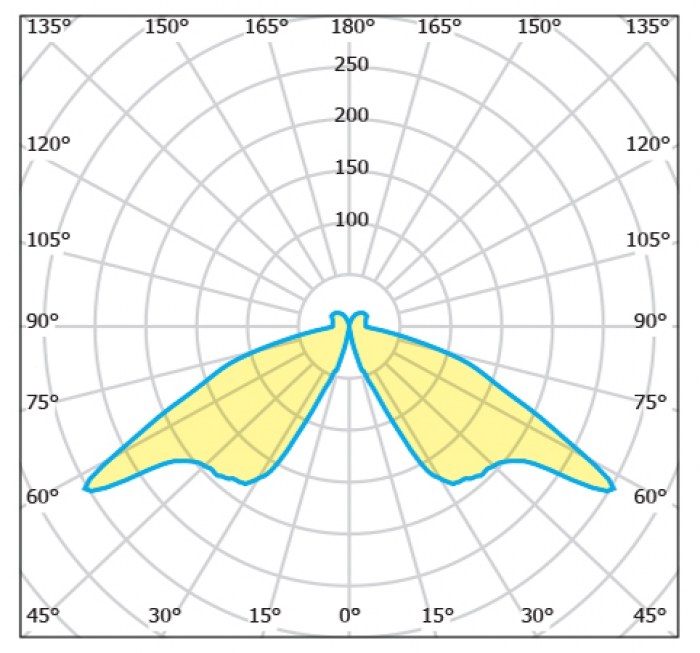

IŞIK EĞRİLERİ
