WALLWASHERS / ECHO 50

ECHO 50 ECHO 50

APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
Aluminium and stainless steel.
Silicon rubber gasket
Swivel range 95°
Mounting bracket made of plastic.
Lens angle; 8°-25°-40°-60°-80°
Colour standard : Mat anodizied
OptionalRAL codes.
LED power supply unit
Input170 –240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Operationtemperature -25°C / +55°C
Wind catching area: 0,08 m²
Weight: 1,1 kg
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.
LIGHT DISTRIBUTION
ECHO 50
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

01-03-50-18-XX-X
20W
2642lm-2780lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

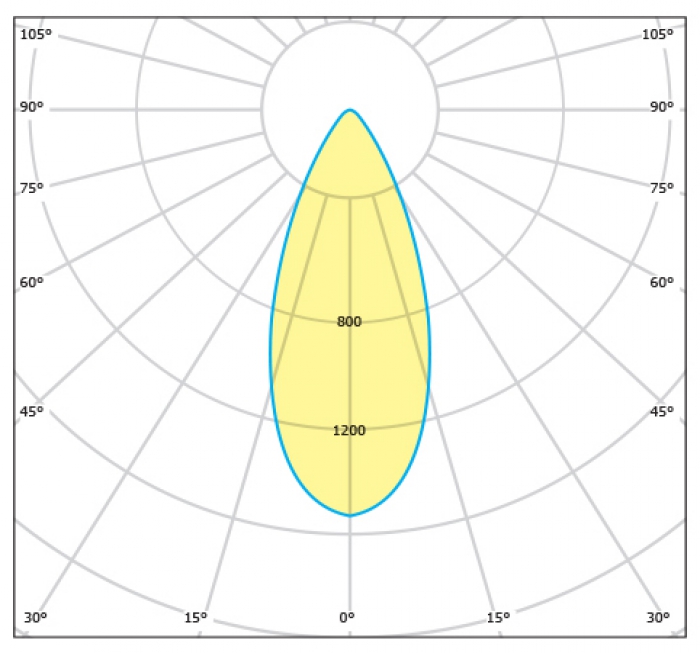

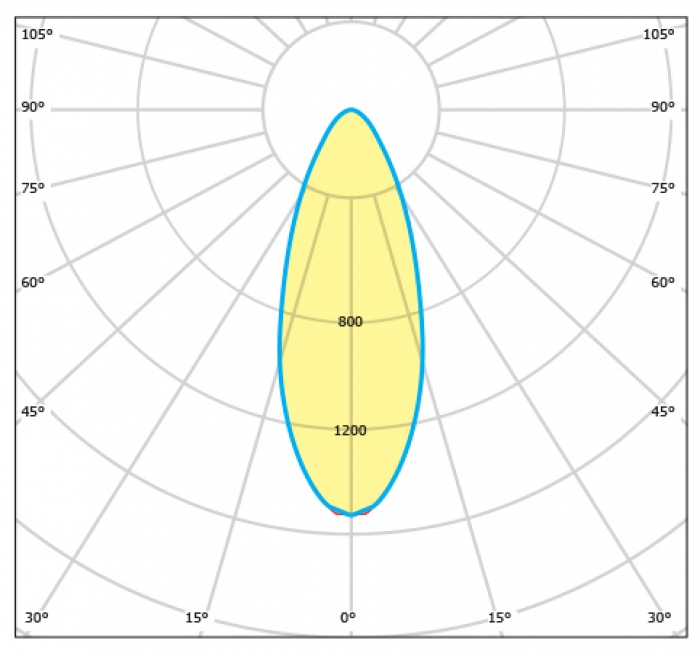

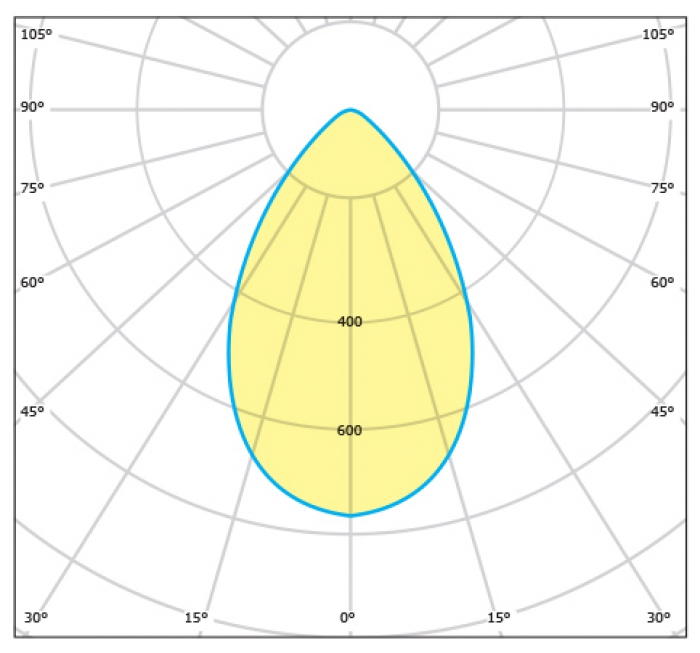

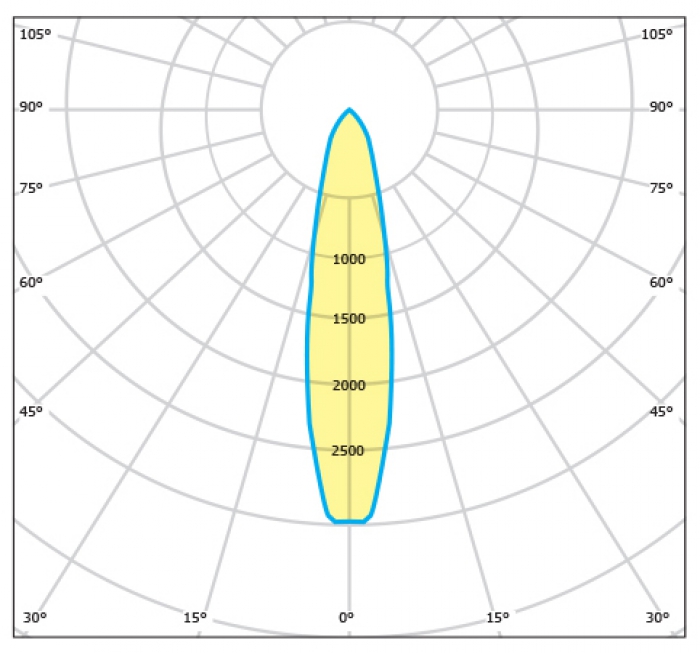

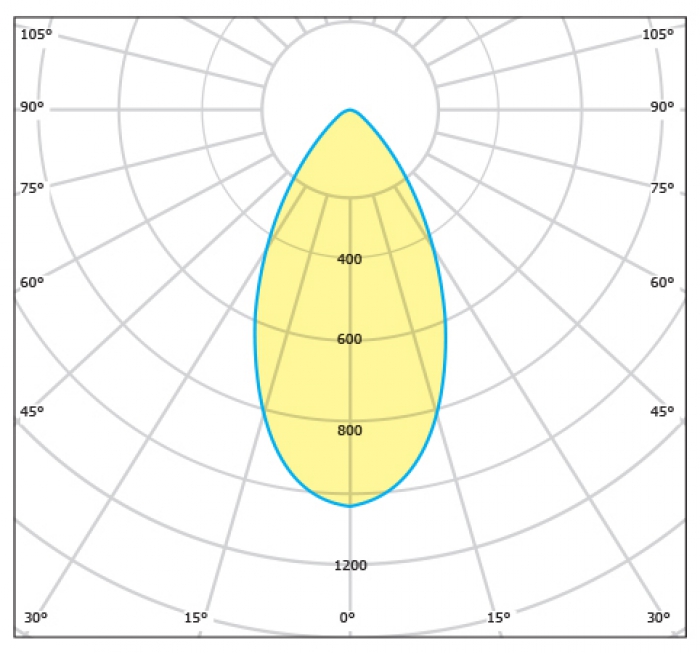

LIGHT CURVES
25°
40°
60°
80°
