KENTSEL AYDINLATMA / ELA CUST ANG
ELA CUST ANG
APPLICATION
LED high-performance urban lights with
Wide Beam light distribution
PRODUCT DESCRIPTION
Body pole manufactured from aluminium
Optics eliptical shaped asymmetrical lenses
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact Resistance IK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.
- Conformity mark.

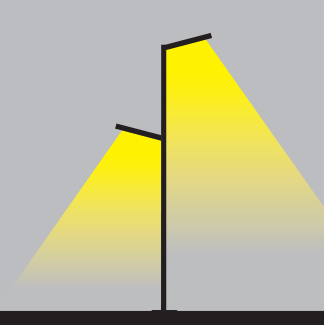

IŞIK DAĞITIMI

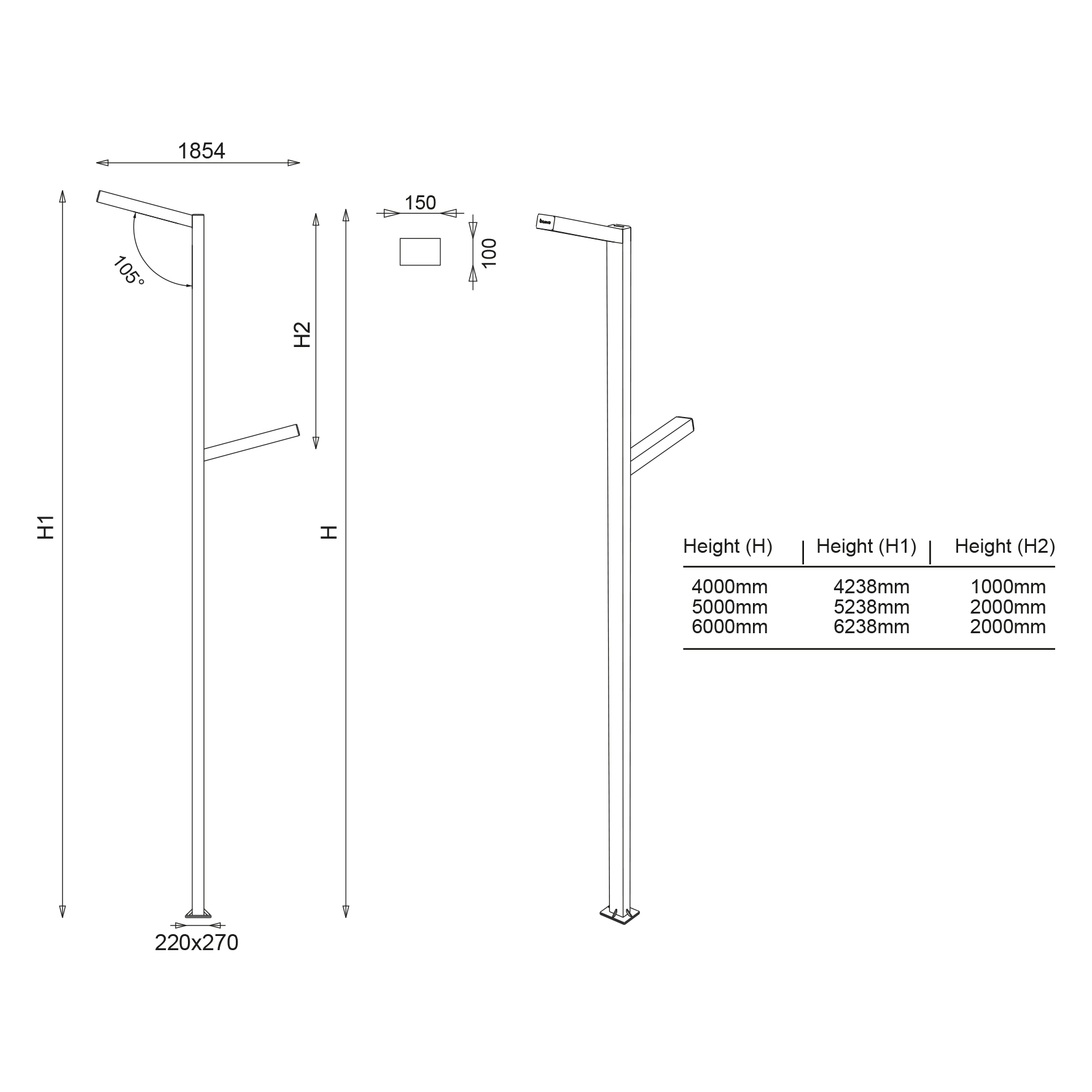

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
DİREK YÜKSEKLİĞİ
60-74-017-60-24-04-ASYM-X (1 MODÜL)
25W+35W
7909lm - 8490lm
3000K-4000K
4m
60-74-017-60-24-05-ASYM-X (1 MODÜL)
25W+35W
7909lm - 8490lm
3000K-4000K
5m
60-74-017-60-24-06-ASYM-X (1 MODÜL)
25W+35W
7909lm - 8490lm
3000K-4000K
6m
60-74-017-90-24-04-ASYM-X (1 MODÜL)
40W+50W
10817lm - 11612lm
3000K-4000K
4m
60-74-017-90-24-05-ASYM-X (1 MODÜL)
40W+50W
10817lm - 11612lm
3000K-4000K
5m
60-74-017-90-24-06-ASYM-X (1 MODÜL)
40W+50W
10817lm - 11612lm
3000K-4000K
6m
60-74-018-120-48-04-ASYM-X (2 MODÜL)
50W+70W
15277lm - 16400lm
3000K-4000K
4m
60-74-018-120-48-05-ASYM-X (2 MODÜL)
50W+70W
15277lm - 16400lm
3000K-4000K
5m
60-74-018-120-48-06-ASYM-X (2 MODÜL)
50W+70W
15277lm - 16400lm
3000K-4000K
6m
60-74-018-180-48-04-ASYM-X (2 MODÜL)
80W+100W
21035lm - 22581lm
3000K-4000K
4m
60-74-018-180-48-05-ASYM-X (2 MODÜL)
80W+100W
21035lm - 22581lm
3000K-4000K
5m
60-74-018-180-48-06-ASYM-X (2 MODÜL)
80W+100W
21035lm - 22581lm
3000K-4000K
6m
X: Led Rengi

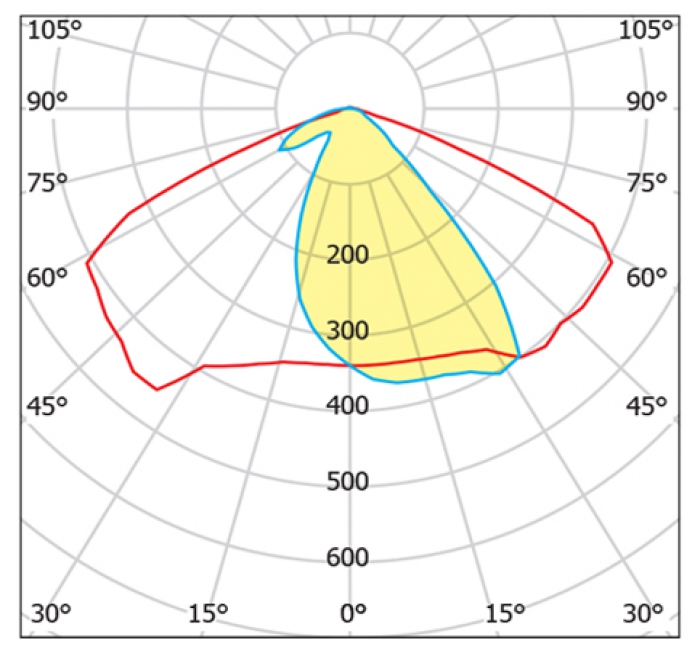

IŞIK EĞRİLERİ
