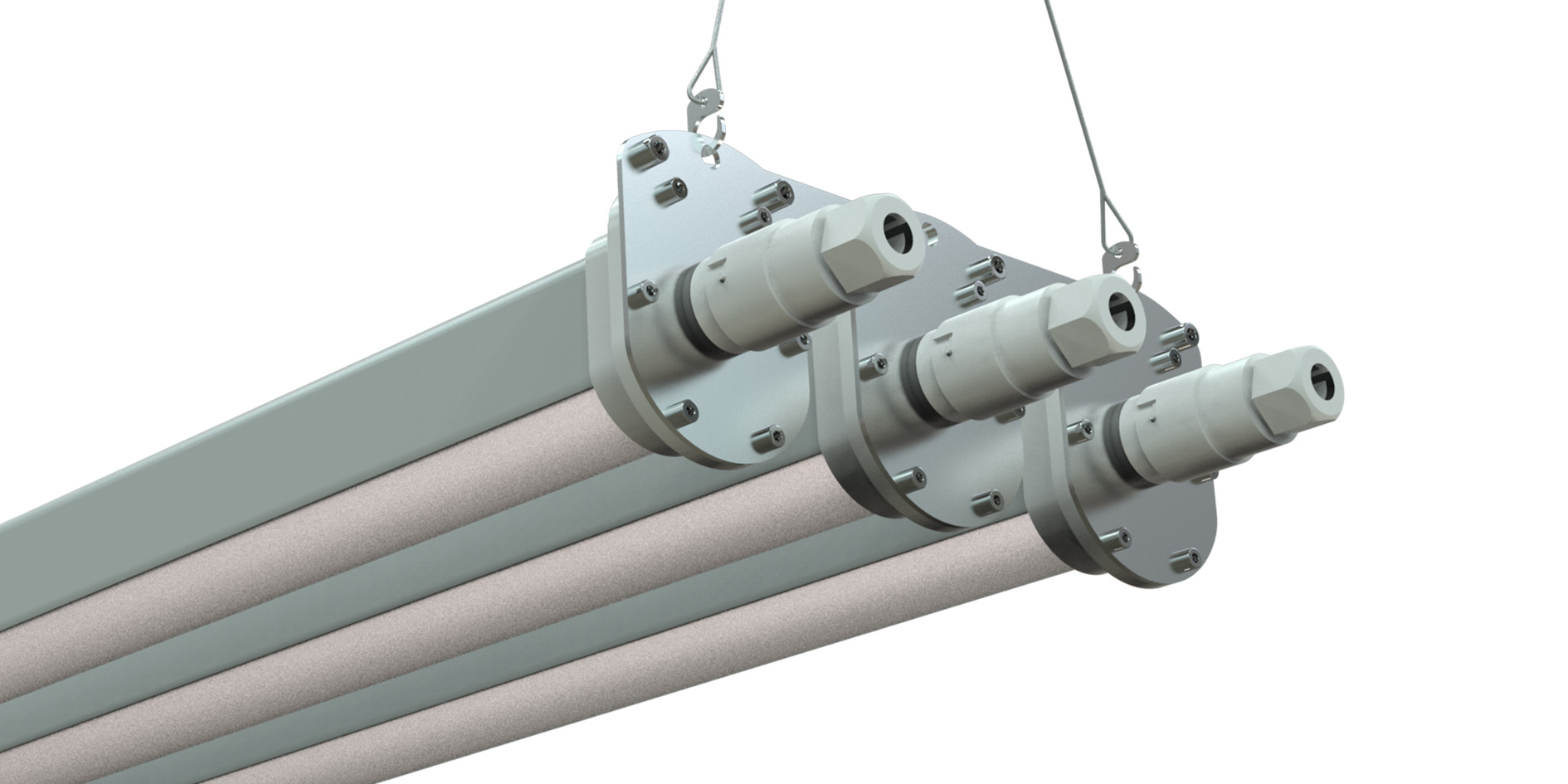

EXEGI-3 125 EXEGI-3 125

APPLICATION
LED high-performance linear lights with
Wide Beam light distribution

PRODUCT DESCRIPTION
Product made of
Polycarbon and Aluminium profile.
Stainless Steel and Polycarbon lids.
Silicon rubber gasket
IP66 connector
Mounting bracket made of stainless steel
1 mm stainless steel rope (optional)
LED chip angle 120°(without lens)
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 96% full load
2kV surge protection
DALI controllable (optional)
0-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK10
Operation temperature -25°C / +55°C
Wind catching area: 0,13 m²
Weight: 7,27 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

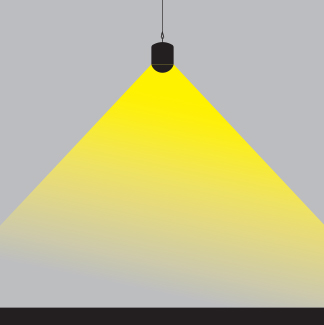

IŞIK DAĞITIMI
EXEGI-3 125

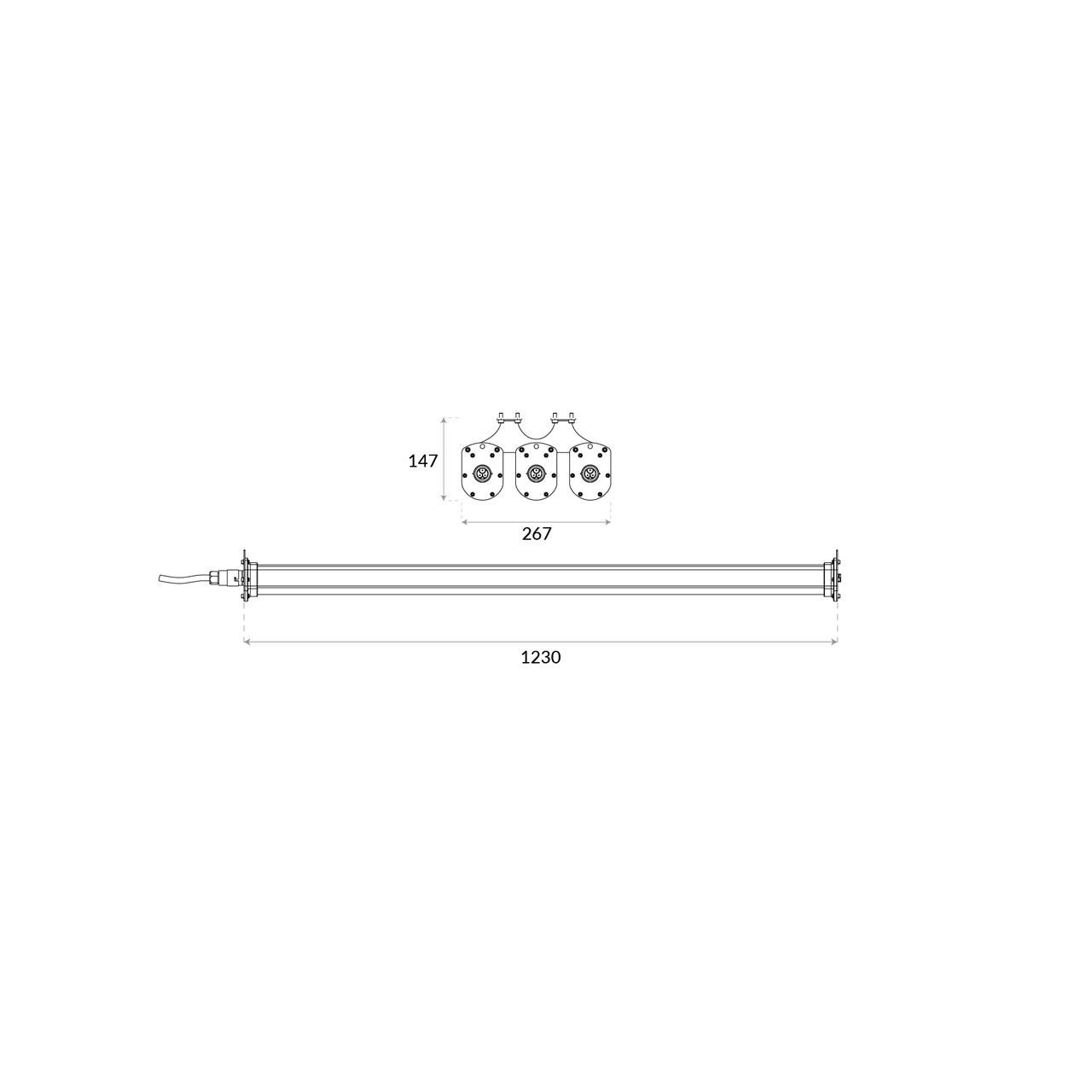

TEKNİK ÇİZİM
İNDİRMELER
TEKNİK DÖKÜMANLAR
KATALOG SAYFALARI
LDT DOSYALARI
TEKNİK ÇİZİM
TEST RAPORLARI
MONTAJ KILAVUZLARI
UYGULAMALAR
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ

90-03-125-150-576-X
150W
20898lm-21516lm
3000K-4000K

90-03-125-210-576-X
210W
27483lm-28386lm
3000K-4000K

X: Led Rengi


EXEGI MONTAJ SEÇENEKLERİ

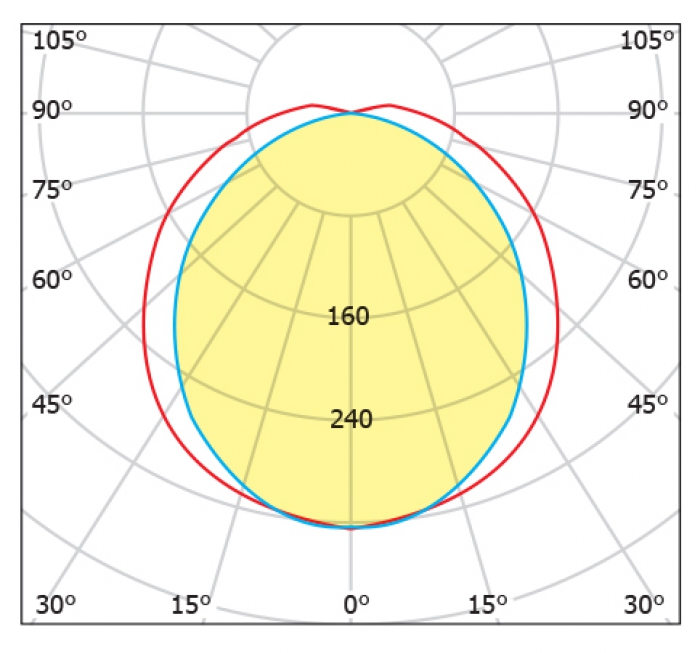

IŞIK EĞRİLERİ
