Bayled
BOLLARDS / FRANCO

FRANCO

APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution

PRODUCT DESCRIPTION
Bollard made of aluminium alloy.
Body pole aluminium
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 90 – 264V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP65
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

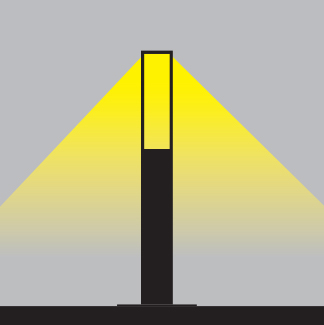

LIGHT DISTRIBUTION
FRANCO

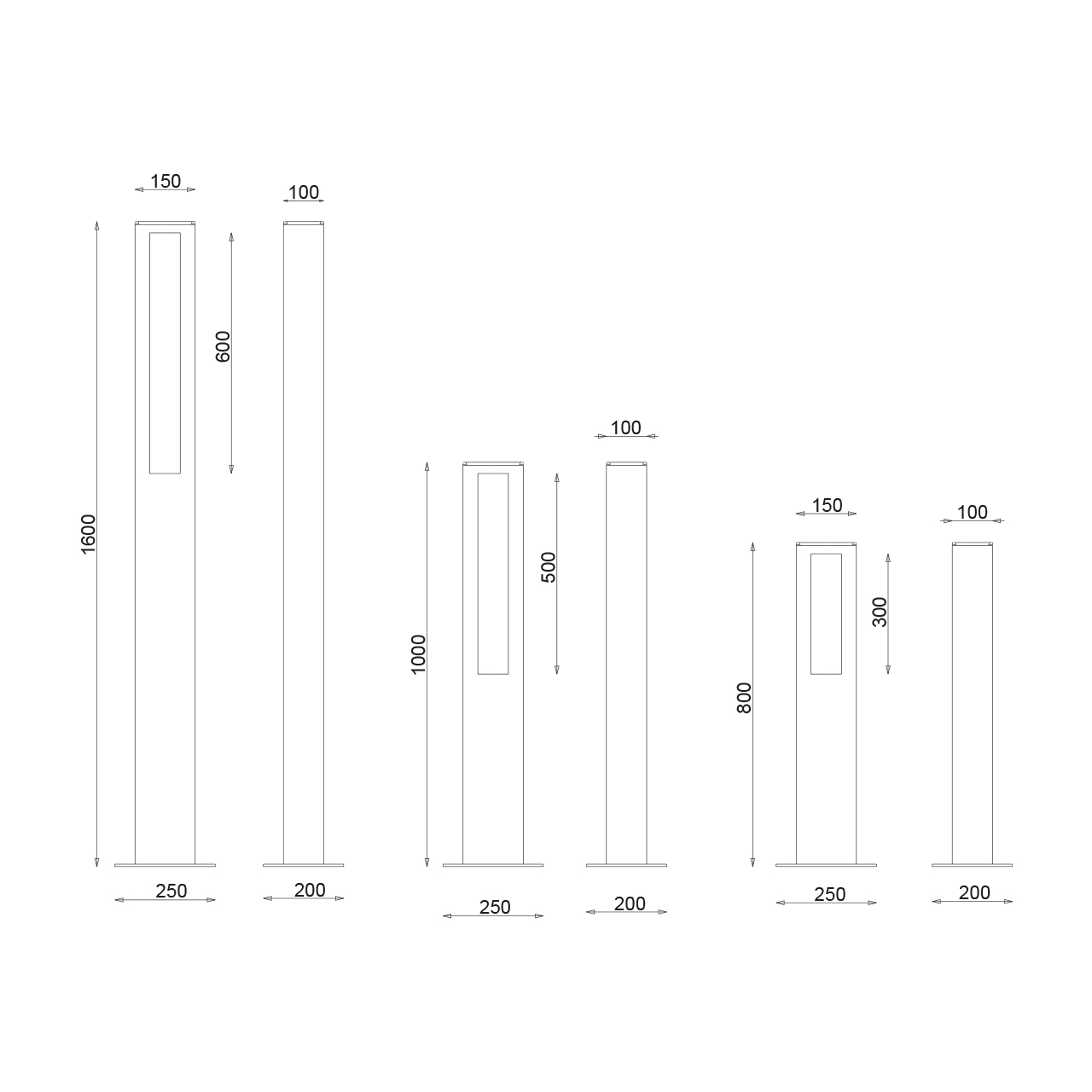

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

60-78-25-90-008-120-X
25W
1475lm - 1503lm
3000K-4000K

60-78-35-150-010-120-X
35W
2065lm - 2135lm
3000K-4000K

60-78-45-180-016-120-X
45W
2655lm - 2707lm
3000K-4000K

XX: Pole Length, X: Led Color

LIGHT CURVES
