Bayled

FUNGO

APPLICATION
LED high-performance urban lights with Wide & Asymmetric Beam light distribution

PRODUCT DESCRIPTION
Urban Light made of aluminium die cast,
Body pole steel with electro galvanized
Clear 5mm safety glass
Silicon rubber gasket
Mounting detail anchor system
Mounting bracket made of steel
Colour standard MT-X6-23
All RAL Codes or
Special architectural paints
Lens angle40°-60°-90°
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenghtIK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

LIGHT DISTRIBUTION
FUNGO
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
TYPE

60-53-60-X
60W
7403lm - 7790lm
3000K-4000K
LED
60-53-80-X
80W
9870lm - 10387lm
3000K-4000K
LED
X: Led Color

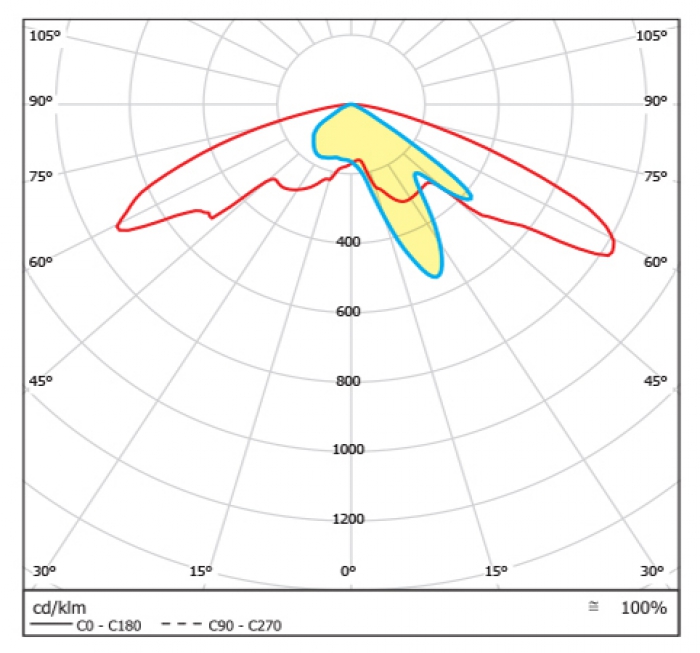

LIGHT CURVES
ROHS NO UV NO IR LONG LIFE LED IP65 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class II Çekiç CE
