LED BAR 1

APPLICATION
LED high-performance linear lights with120 degree beam light distribution.

PRODUCT DESCRIPTION
Linear lights made of anodized silver aluminium
extruded housing with stainless steel screws
and silicone sealing.
Mounting bracket made of plastic.
LED chip angle 120° (without lens)
Colour standard : Mat anodizied
Constant current
Input 12V - DC Mono Color
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Protection class IP65
Operation temperature -25°C / +55°C
Weight: 0,3 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.
LIGHT DISTRIBUTION
LED BAR 1
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

6
6W
384lm-444lm
3000K-4000K

10
10W
691lm-709lm
3000K-4000K

14
14W
964lm-986lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

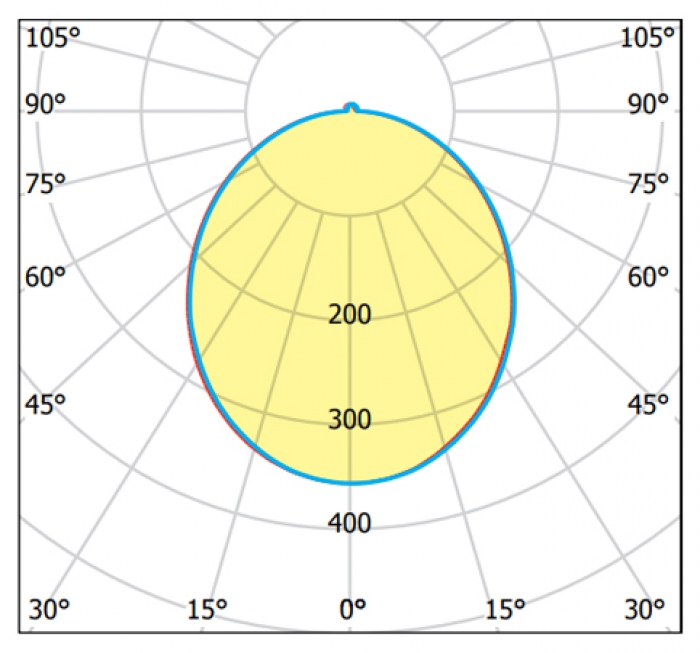

LIGHT CURVES
