HOJAS DE DATOS
PINTURAS MURALES / LEXA 100
LEXA 100
APPLICATION
LED high-performance wallwashers with wide beam light distribution.
PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
Aluminium and stainless steel.
Silicon rubber gasket
Swivel range 95°
Mounting bracket made of plastic.
LED chip angle 125°(without lens)
Colour standard : Mat anodizied
OptionalRAL codes.
LED power supply unit
Input 170 –240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Operation temperature -25°C / +55°C
Wind catching area: 0,06 m²
Weight: 0,75 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.DISTRIBUCION DE LUZ
DIBUJO TÉCNICO
TABLA DE ORDEN DE COMPRA
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
70-001-100-33-XX-X
18W
2530lm - 2613lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

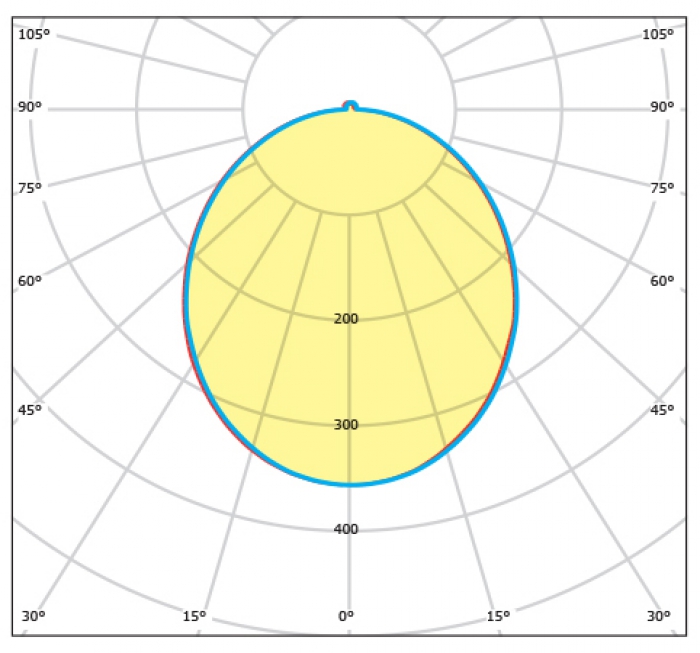

CURVAS DE LUZ
