WALLWASHERS / LEXA 70

LEXA 70 LEXA 70

APPLICATION
LED high-performance wallwashers with wide beam light distribution.

PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
Silicon rubber gasket
Swivel range 95°
Mounting bracket made of plastic.
LED chip angle 125°(without lens)
Colour standard : Mat anodizied
OptionalRAL codes.
LED power supply unit
Input 170 –240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Operation temperature -25°C / +55°C
Wind catching area: 0,06 m²
Weight: 0,75 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

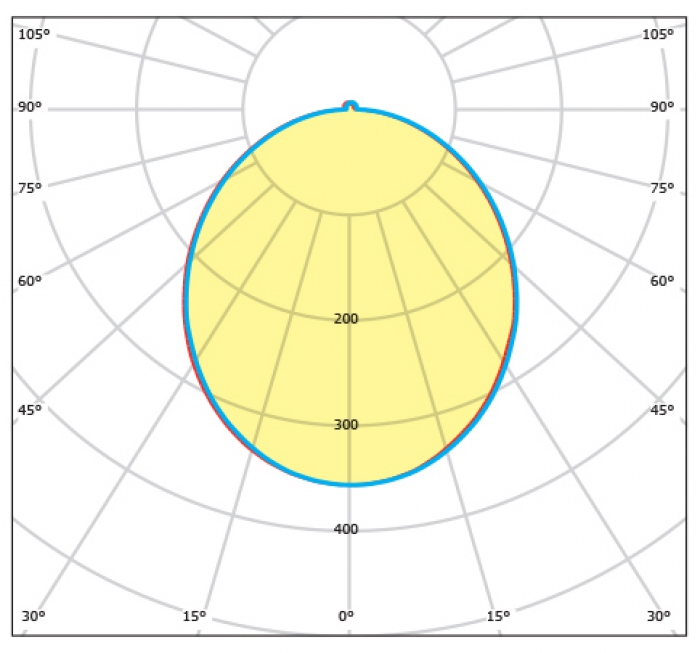

LIGHT DISTRIBUTION
LEXA 70
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

70-001-070-22-XX-X
12W
1687lm - 1742lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

LIGHT CURVES
