LIBRA 100 LIBRA 100

APPLICATION

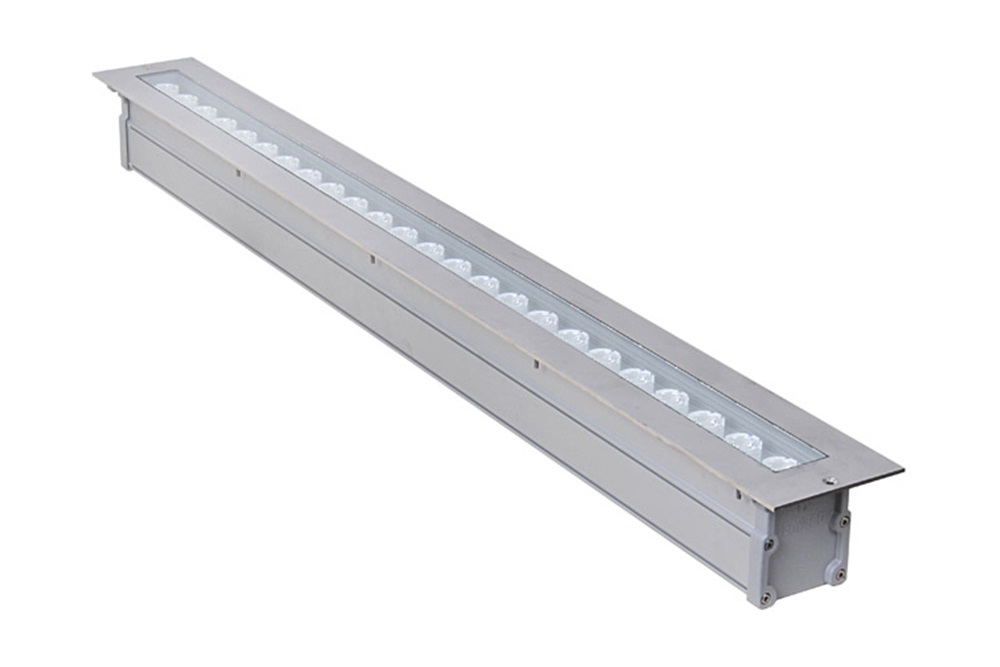

LED high-performance inground with wide & narrow beam light distribution.

PRODUCT DESCRIPTION

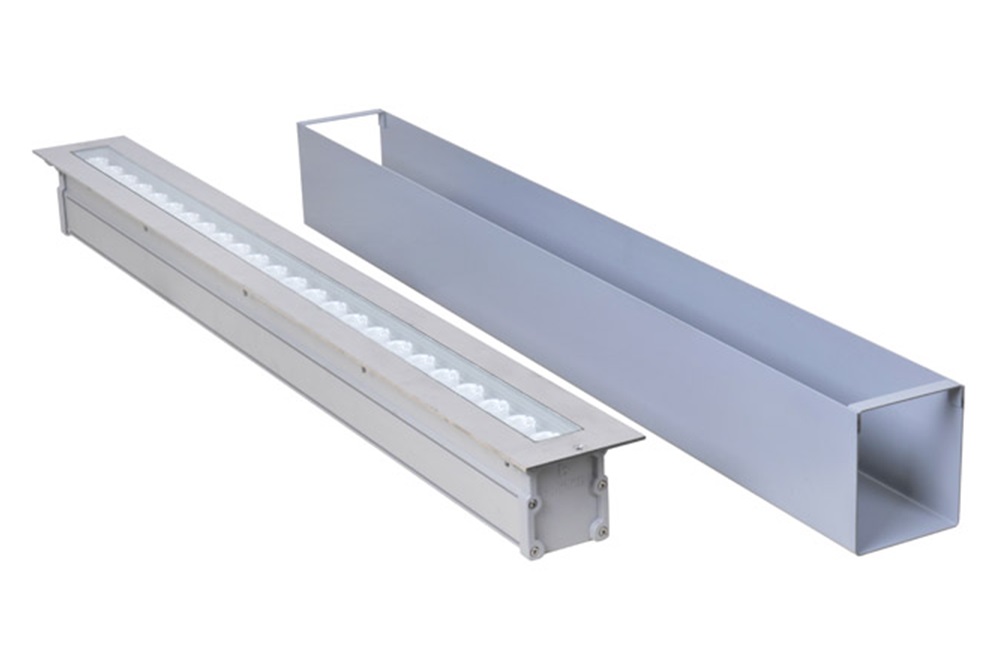

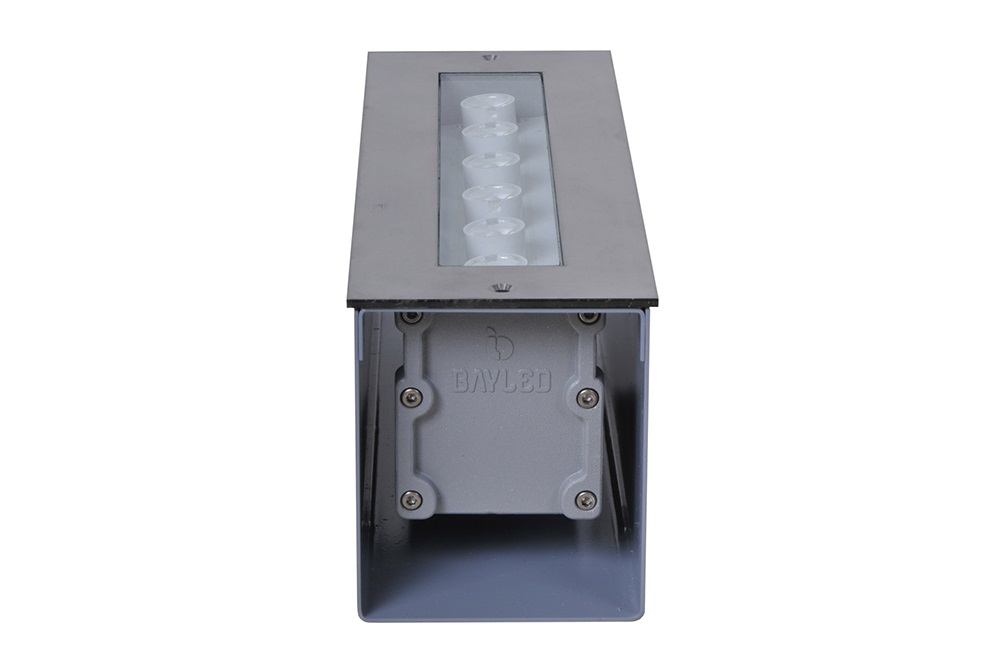

Inground made of aluminium die cast,
Aluminium and stainless steel.
Clear 8mm safety glass
Silicon base seal gasket
Mounting bracket made of steel.
Electrostatic powder coating.
Lens angle 8°- 25°- 45°- 60°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 9,50 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

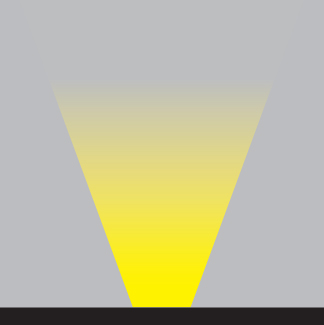

LIGHT DISTRIBUTION
LIBRA 100
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

15-04-100-24-XX-X
24W
3303lm - 3476lm
3000K-4000K

15-04-100-36-XX-X
36W
4933lm - 4594lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

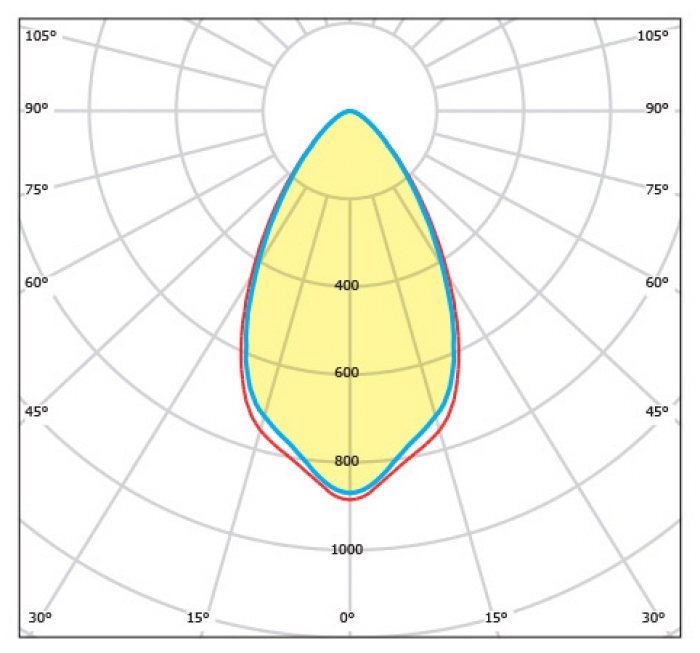

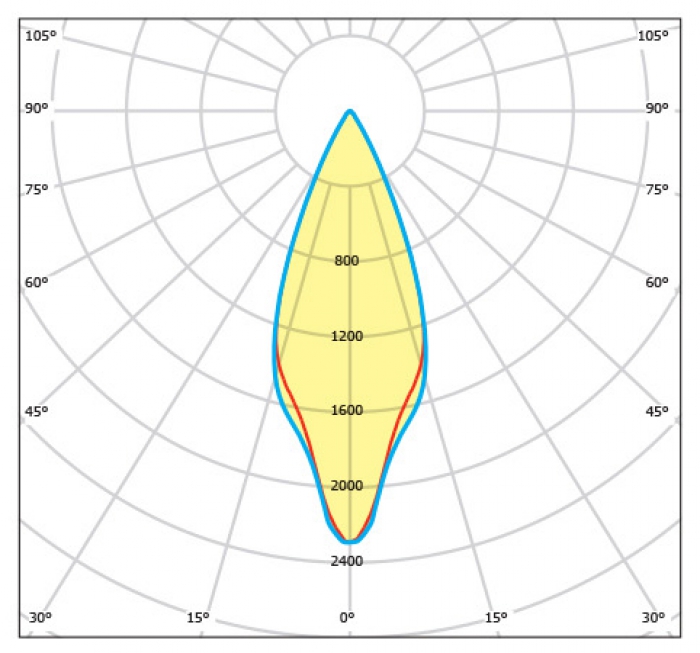

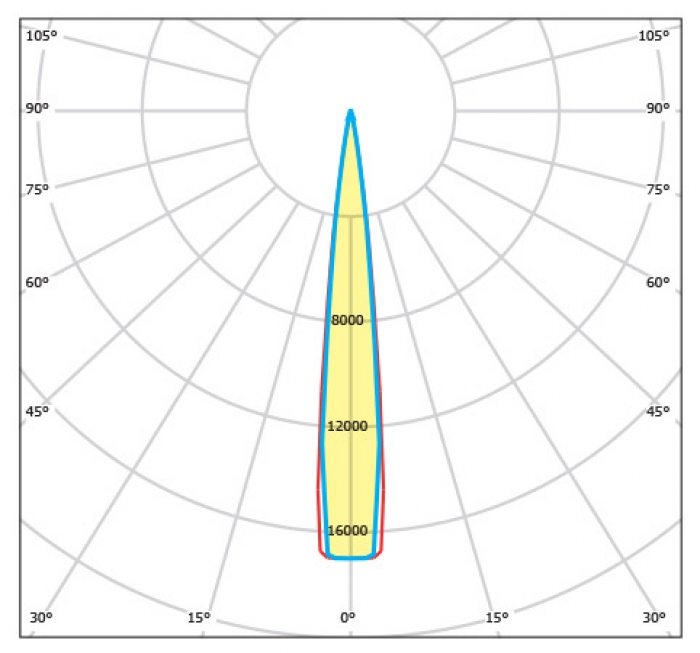

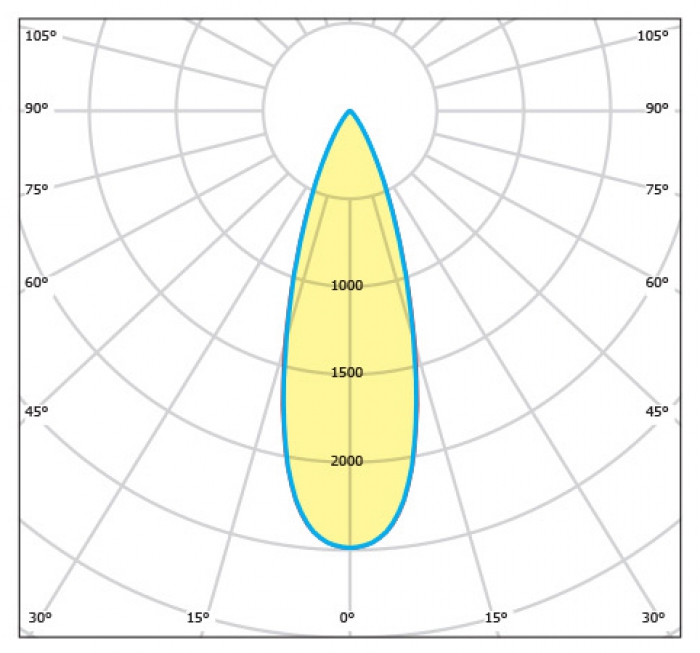

LIGHT CURVES
25°
45°
60°
ROHS NO UV NO IR LONG LIFE LED IP67 IK09 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class I Çekiç CE
