LINEAR LUMINAIRES / BAYLINE PIXEL

BAYLINE PIXEL BAYLINE PIXEL

APPLICATION

BAYLINE is a direct view linear LED luminaire designed

for decorative lighting including cove and edge lighting

applications. With its color changing capability,

long linear color changing effects can be

created easily.



The luminaire is designed for harsh outdoor

environment usage.


PRODUCT DESCRIPTION

 Directview made of aluminium extrusion

and Polycarbon diffuser
IP67 connector
Mounting bracket made of aluminium
Light angle 180°(without lens)
Safety class I
Input 24V DC
Power factor > 90% full load
DMX 512 controllable.
Colour standard : Mat anodizied
Optional RAL codes.
Protection class IP67
Impact strenght IK09
Operation temperature -30°C / +60°C
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.
LIGHT DISTRIBUTION
BAYLINE PIXEL

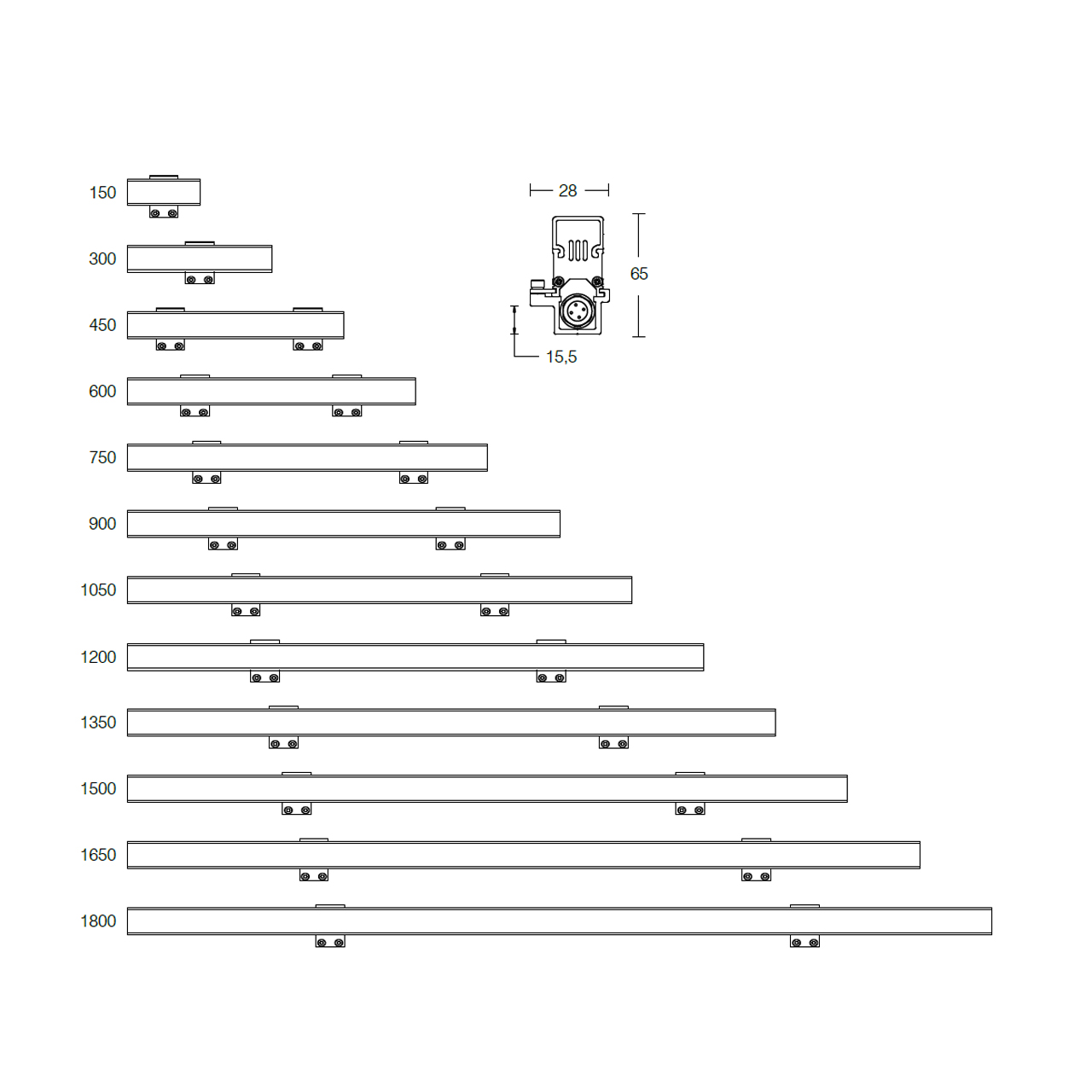

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
SPECIFICATION SHEET(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
TEST REPORTS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR DEPTH

01-07-XX-X
10W/m
464Lm/m
16.7 million

XX: Luminaire length
X: Number of LEDs (Each 15 cm length module consists of 6 RGB LEDs)
* Length of luminaire starts from 15 cm and goes up to 180cm with multiples of 15 cm.
