LOTIS

APPLICATION

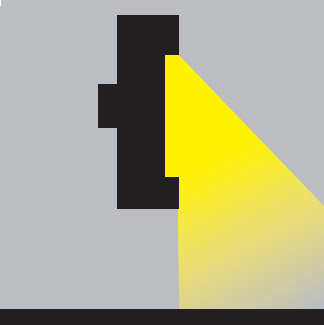

LED high-performance up-down sconces lights with
Wide & Asymmetric Beam light distribution

PRODUCT DESCRIPTION
Made of aluminium extrusion die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.
  - Conformity mark.

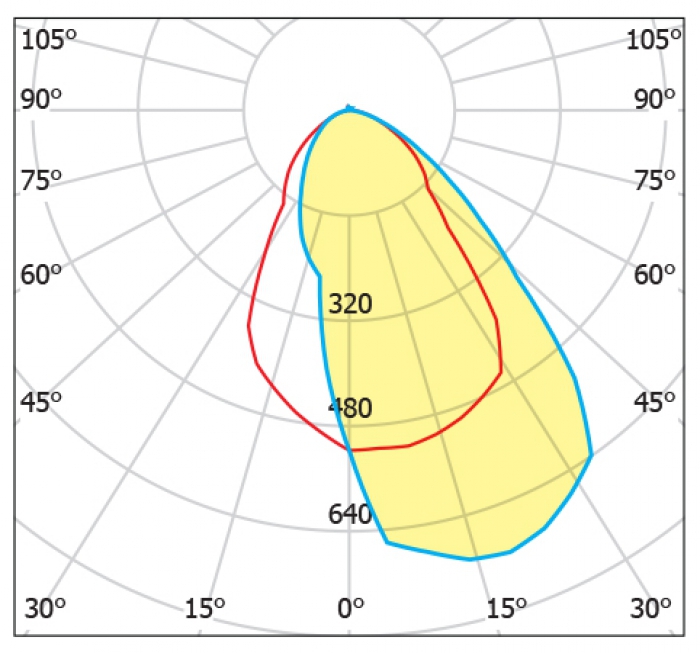

LIGHT DISTRIBUTION
LOTIS
TECHNICAL DRAWING
