Bayled

LUCUS

APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution

PRODUCT DESCRIPTION
Urban lights made of aluminium,
Body egzotic wood
Louver highest grade aluminium,
polished and anodised
Surface Treatment 3 layers of varnish
resist to external factors is applied.
Diffuser5mm policarbon glass
Silicon rubber gasket
Mounting detail anchor system
Base and Bracket manufactured from steel
LED power supply unit
Input170 –240V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP65
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.
LIGHT DISTRIBUTION
LUCUS
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
TYPE

60-60-150-X
150W
13050lm - 13950lm
830K-840K
HIT
60-60-70-X
70W
8637lm - 9088lm
3000K-4000K
LED
X: Led Color

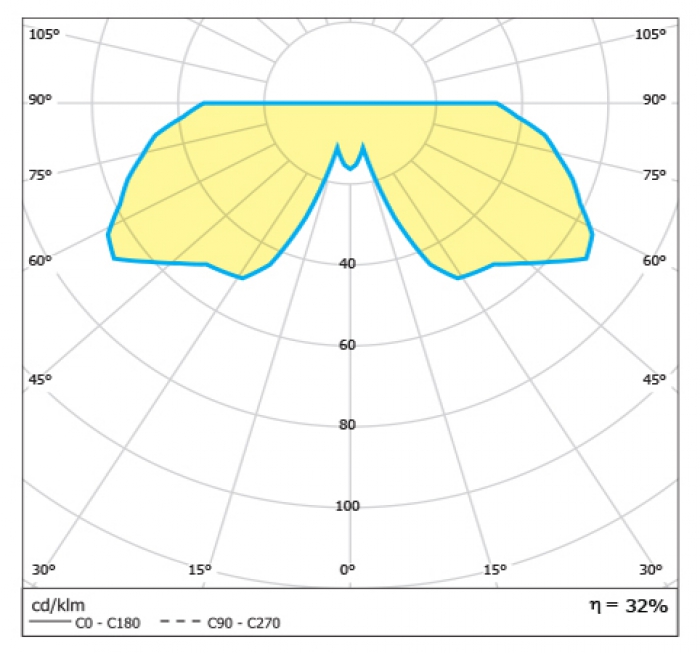

LIGHT CURVES
