DATA SHEETS
WALLWASHERS / MINARET

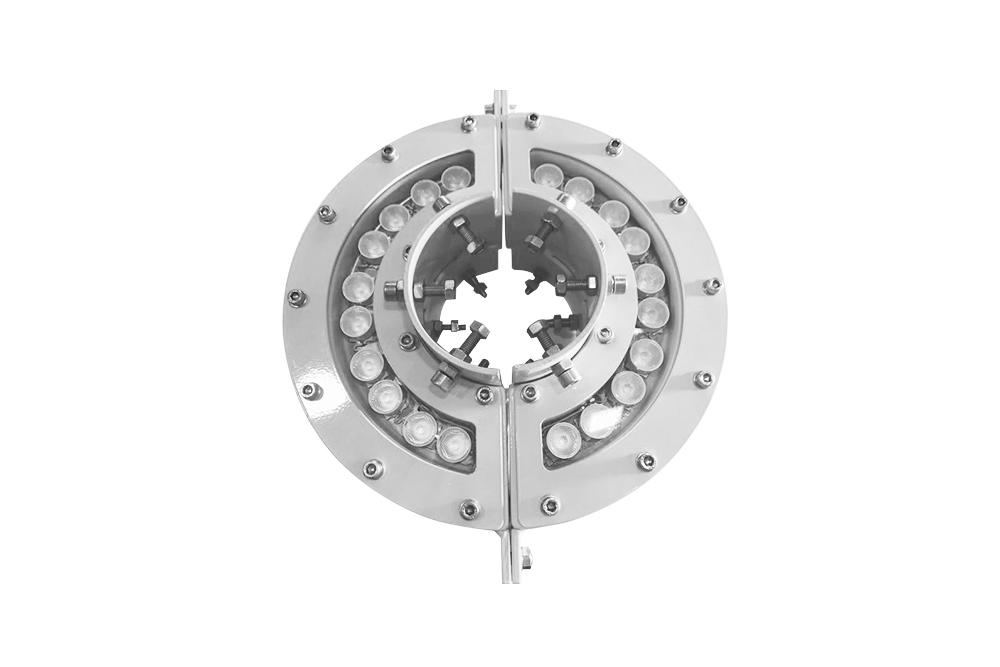

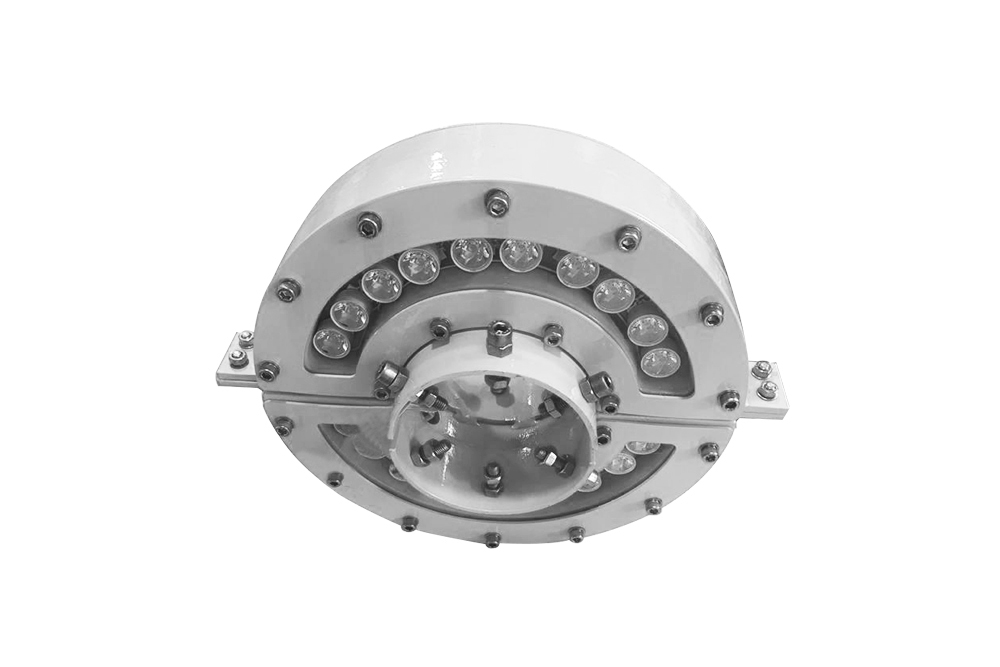

MINARET
APPLICATION
LED high-performance lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Luminaire made of aluminium,
Aluminium and stainless steel.
Clear plexiglass
Silicon rubber gasket
Mounting bracket made of aluminium
with electrostatic powder coating.
Lens angle 30°- 60°
Colour standard MT-X6-23
optional RAL codes.
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP65
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,23 m²
Weight: 7 kg
EULUMDAT files available
Complies with European standards

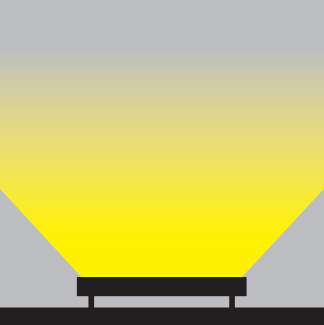

- Conformity mark.LIGHT DISTRIBUTION
TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
01-05-50-40-XX-X
50W
6579lm - 7065lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.
LIGHT CURVES
