MIRA MIRA MIRA MIRA

APPLICATION
LED high-performance surface mounted with wide & narrow beam light distribution.

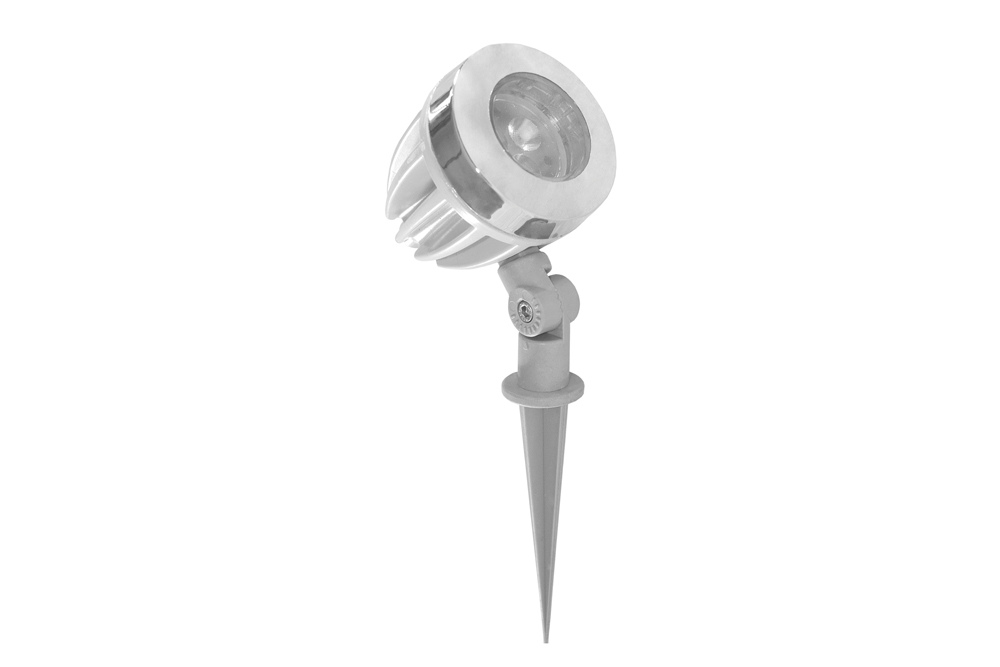

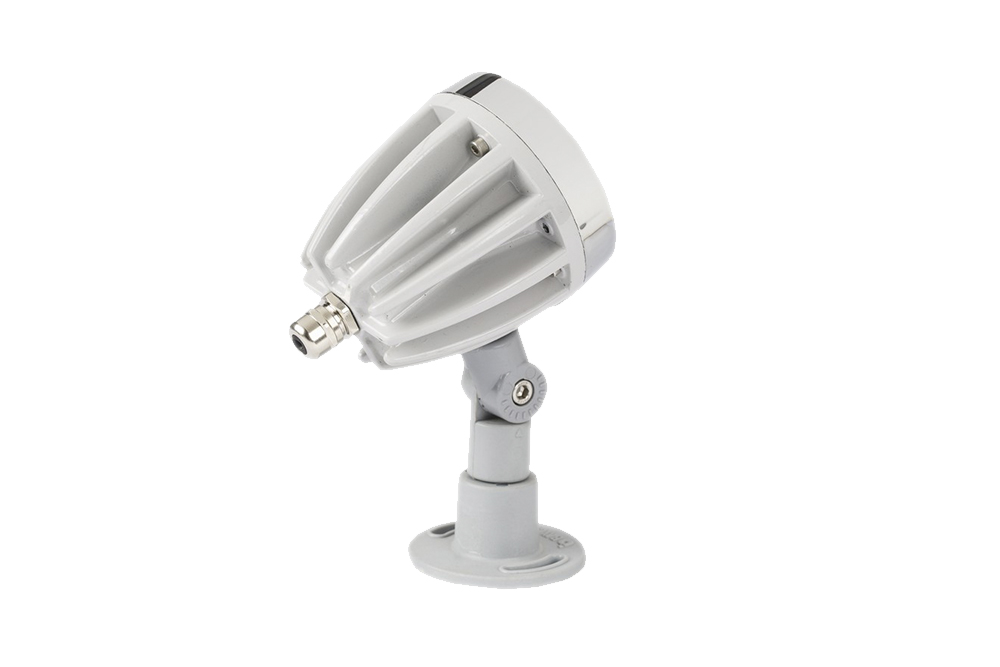

PRODUCT DESCRIPTION
Floodlight made of aluminium die cast,
Aluminium and stainless steel.
Clear 3mm safety glass
Silicon base seal gasket
Mounting bracket made of plastic.
Electrostatic powder coating.
Lens angle 25°- 45° (3 in1 full lens)
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 170 – 240V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Impact Stregth IK09
Protection class IP66
Operation temperature -25°C / +55°C
Weight: 0,75 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

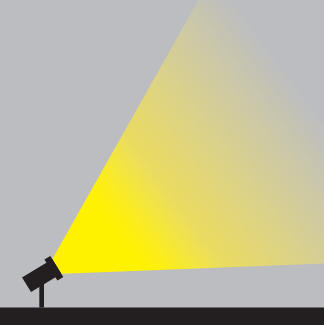

LIGHT DISTRIBUTION
MIRA

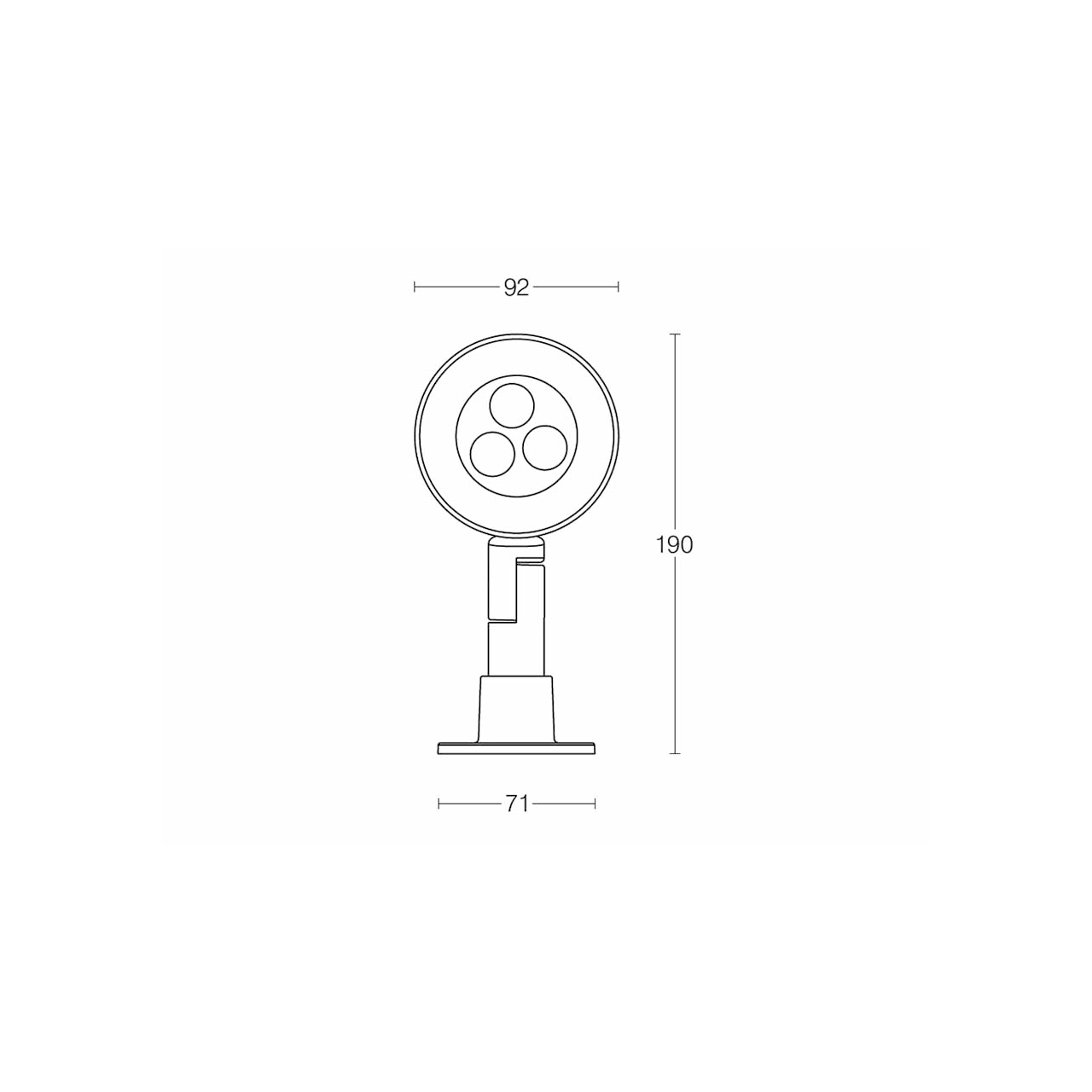

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

20-01-3-XX-X
3W
413lm - 435lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

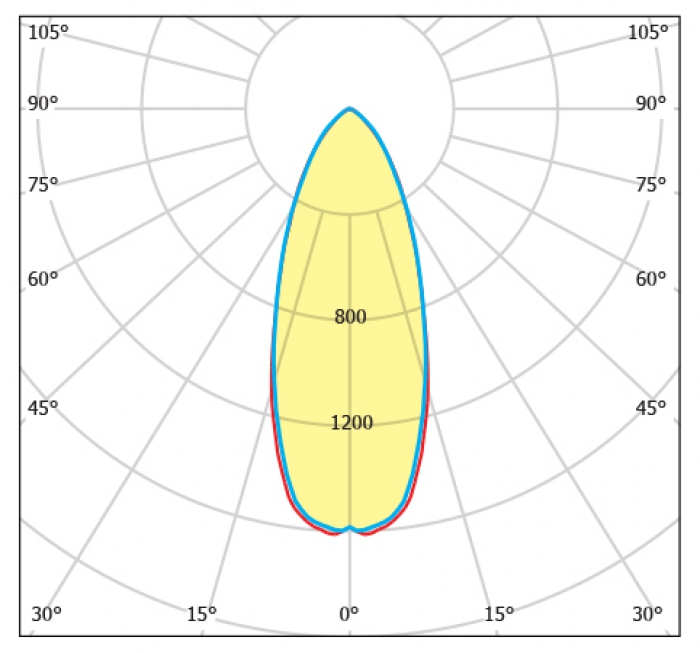

LIGHT CURVES
25°
