SURFACE MOUNT LUMINAIRES / MIRA RGB / RGBW(A)

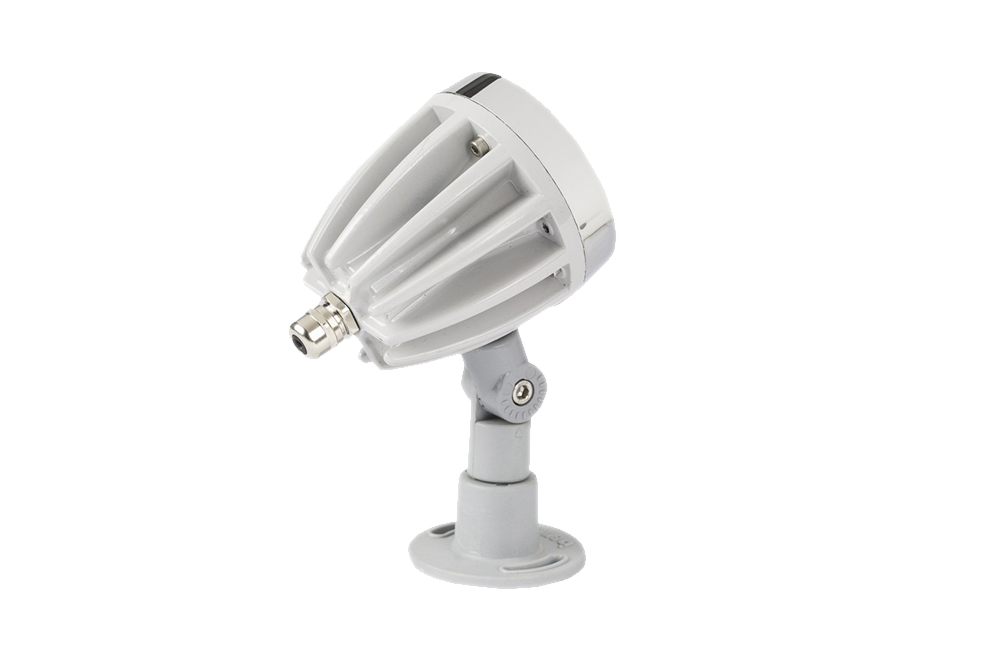

MIRA RGB / RGBW(A)

APPLICATION
LED high-performance surface mounted with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Surface mounted made of aluminium die cast,
Aluminium and stainless steel.
Clear 3mm safety glass
Silicon base seal gasket
Mounting bracket made of plastic.
Electrostatic powder coating.
Lens angle 25°- 45° (3 in1 full lens)
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 5V DC
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Impact Stregth IK09
Protection class IP66
Operation temperature -25°C / +55°C
Weight: 0,75 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

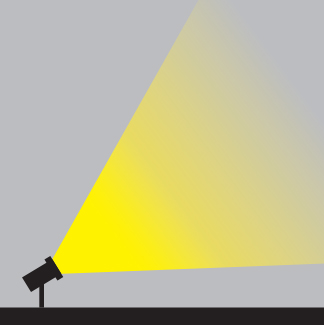

LIGHT DISTRIBUTION
MIRA RGB / RGBW(A)

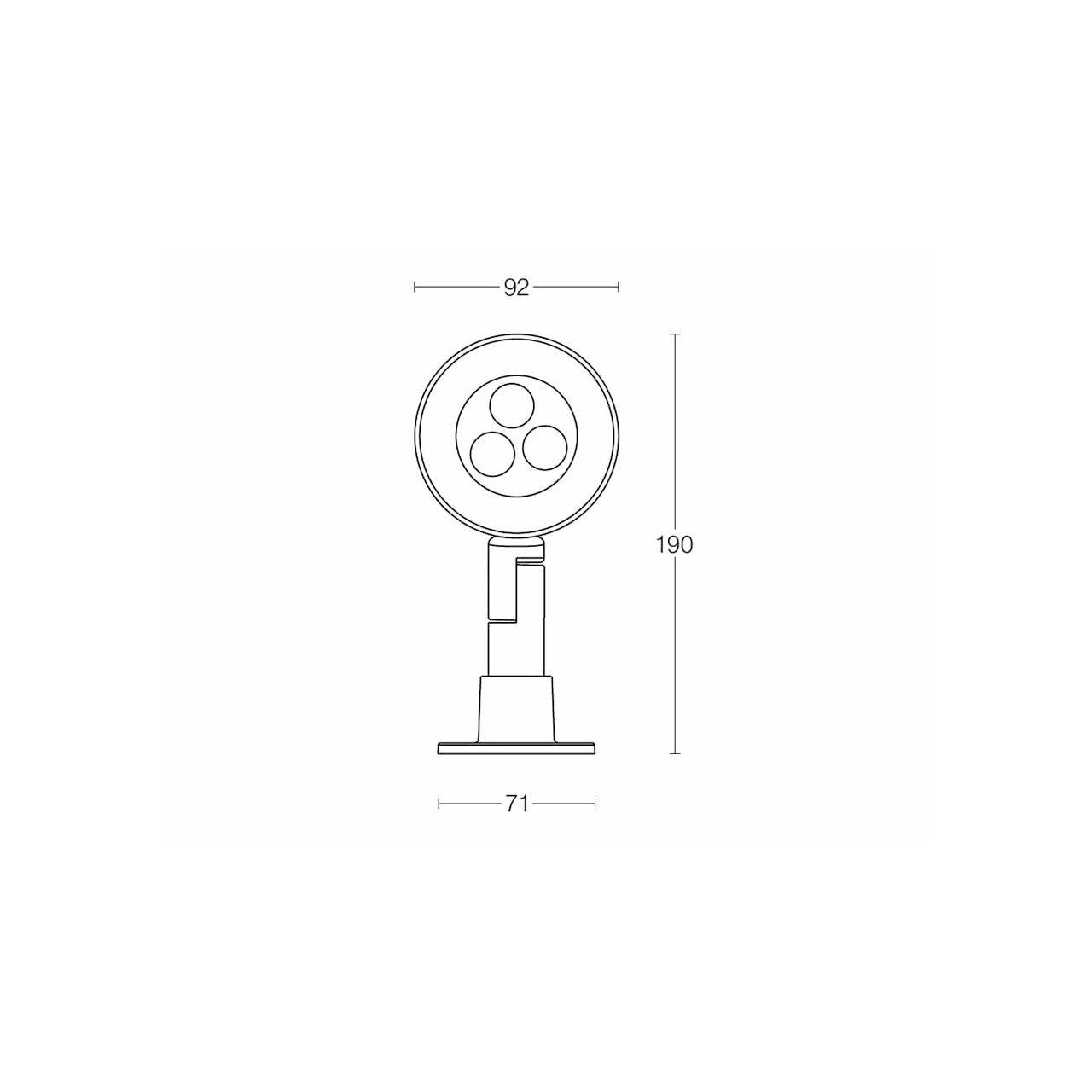

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
CONNECTION DIAGRAM(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
MIRA RGB
CODE
POWER
COLOR TEMPERATURE

20-01-03-08-XX-RGB
6W
RGB

MIRA RGBW(A)
CODE
POWER
COLOR TEMPERATURE

20-01-03-10-XX-RGBW
8W
RGBW(A)

XX: Lens Açısı

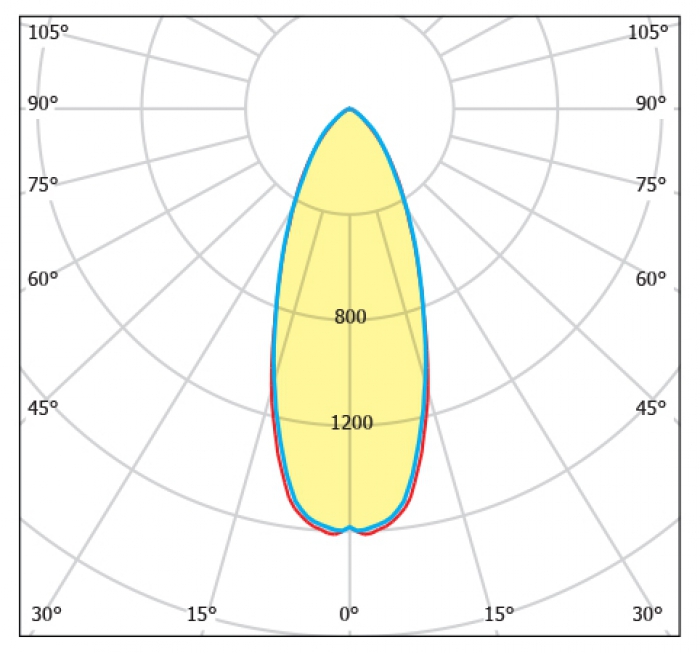

LIGHT CURVES
25°
ROHS NO UV NO IR LONG LIFE LED IP66 IK09 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class I Çekiç CE
