UNDERWATER LUMINAIRES / ORCA 18 RGB / RGBW(A)

ORCA 18 RGB / RGBW(A)

APPLICATION
LED high-performance underwater with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Under water made of stainless steel,
Clear 3mm policarbon glass
Silicon base seal gasket
Mounting bracket made of stainless steel.
Lens angle 8°-25°-45°-60°
Front cover colour standard (chrome)
LED power supply unit
Input 24V DC
Power factor > 93% full load
DMX 512 controllable
Safety class I
Protection class IP68
Operation temperature -25°C / +55°C
Weight: 0,78 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.
LIGHT DISTRIBUTION
ORCA 18 RGB / RGBW(A)

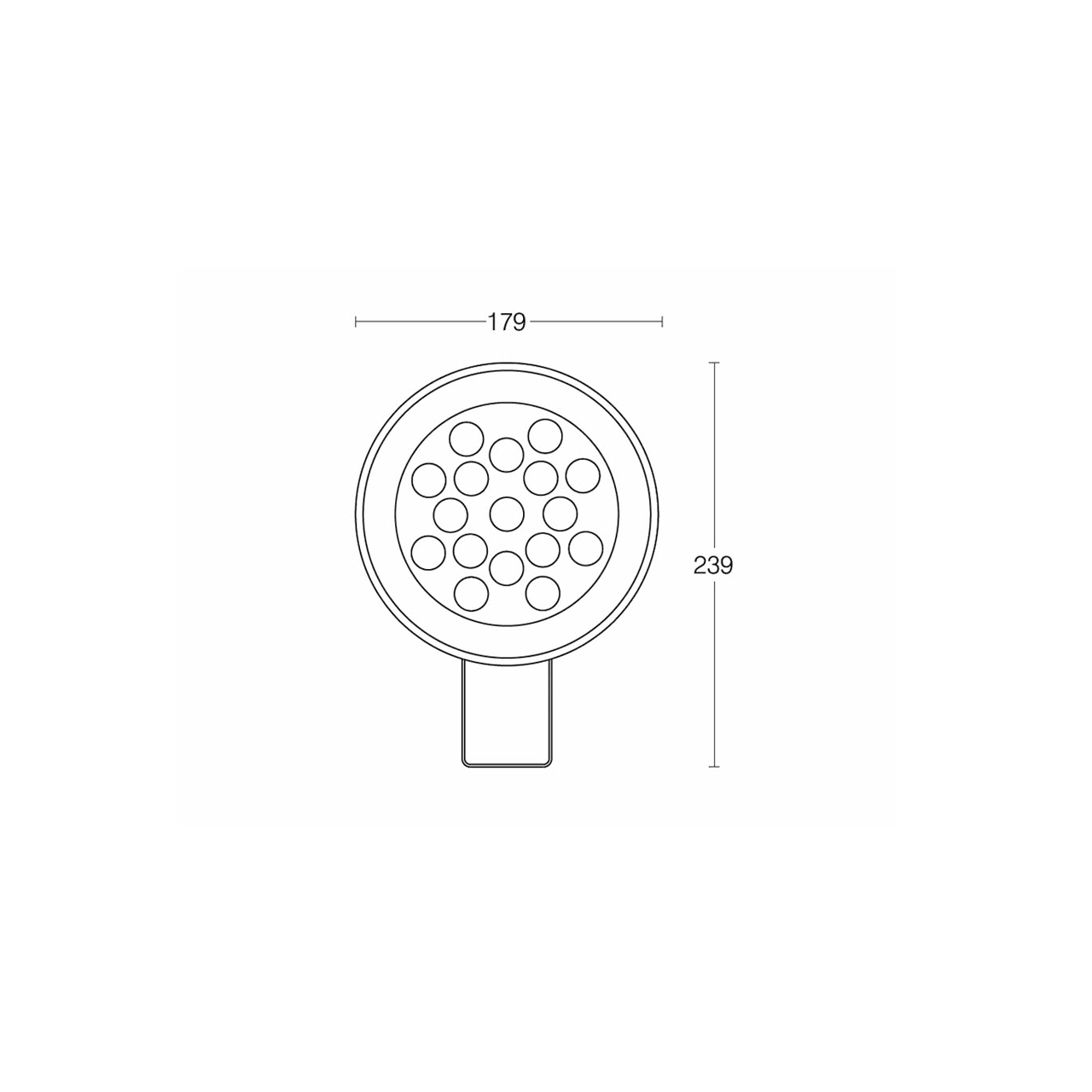

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
CONNECTION DIAGRAM(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
ORCA 18 RGB
CODE
POWER
COLOR TEMPERATURE

30-03-24-18-XX-RGB
18W
RGB

ORCA 18 RGBW(A)
30-03-24-18-XX-RGBW
18W
RGBW(A)

XX: Lens Açısı

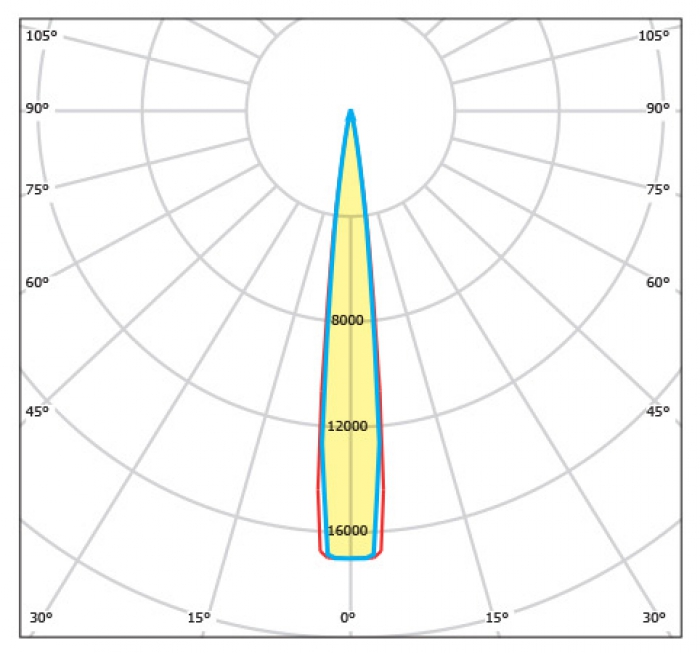

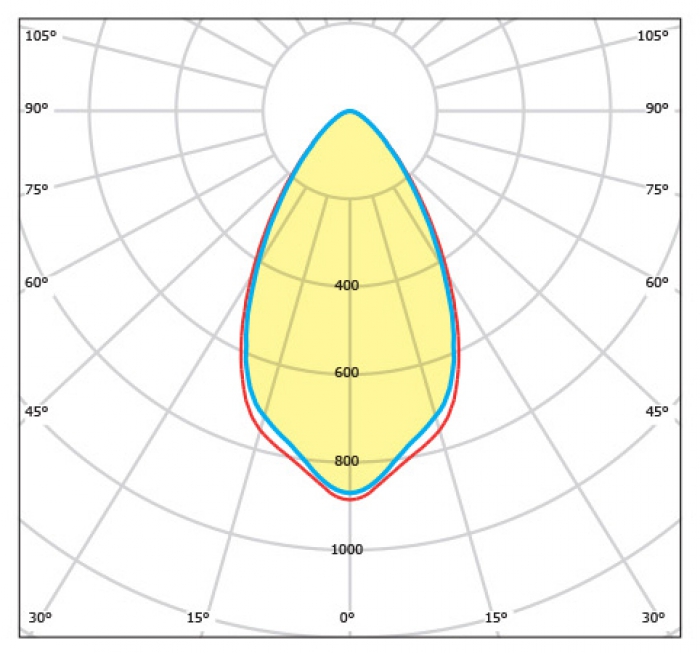

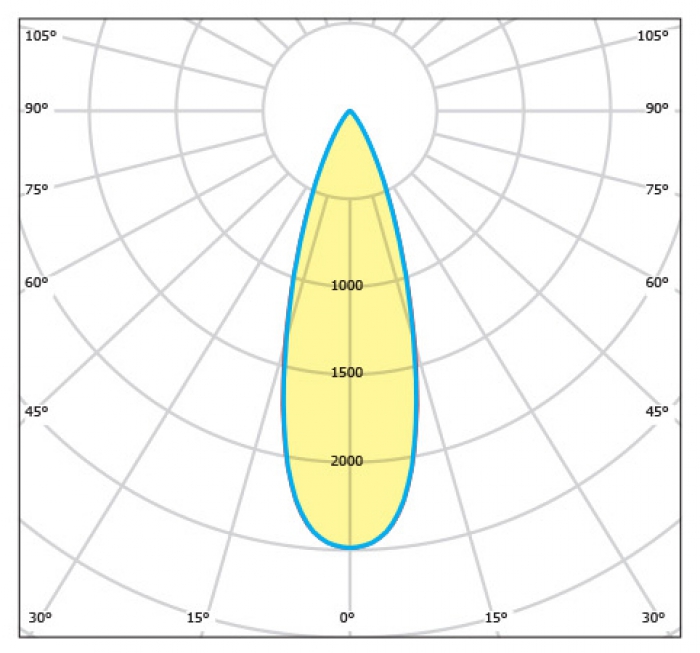

LIGHT CURVES
25°
45°
60°
ROHS NO UV NO IR LONG LIFE LED IP68 Geri Dönüşüm Energy Saver DIM Dekoratif Damla CO2 Class I Çekiç CE
