KENTSEL AYDINLATMA / ORION 45 1D 1B

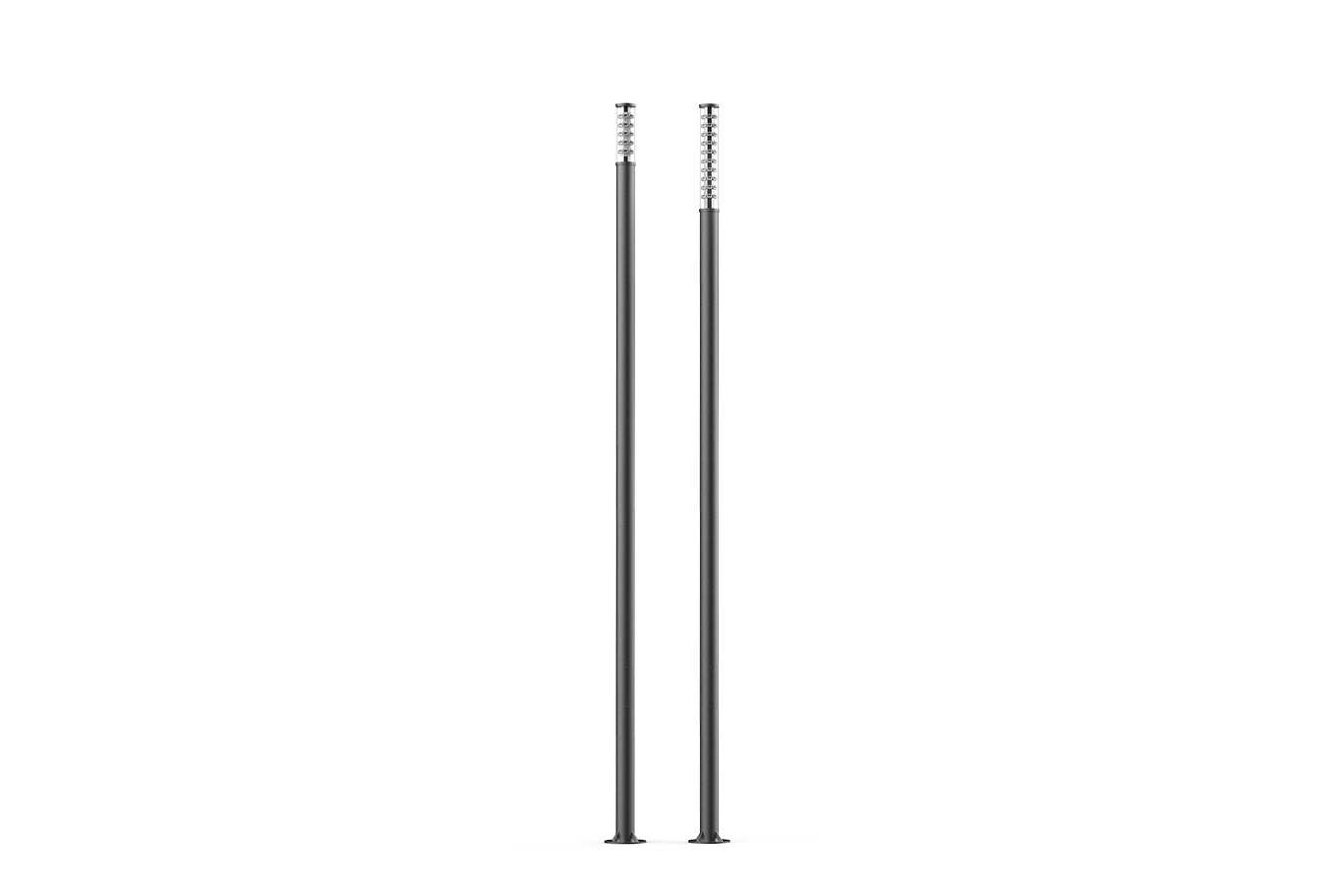

ORION 45 1D 1B
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium / steel extrusion die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

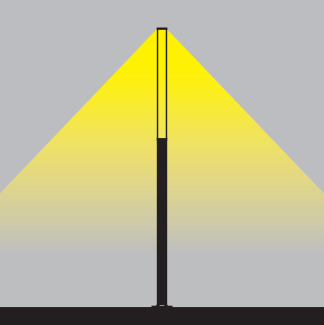

- Conformity mark.IŞIK DAĞITIMI

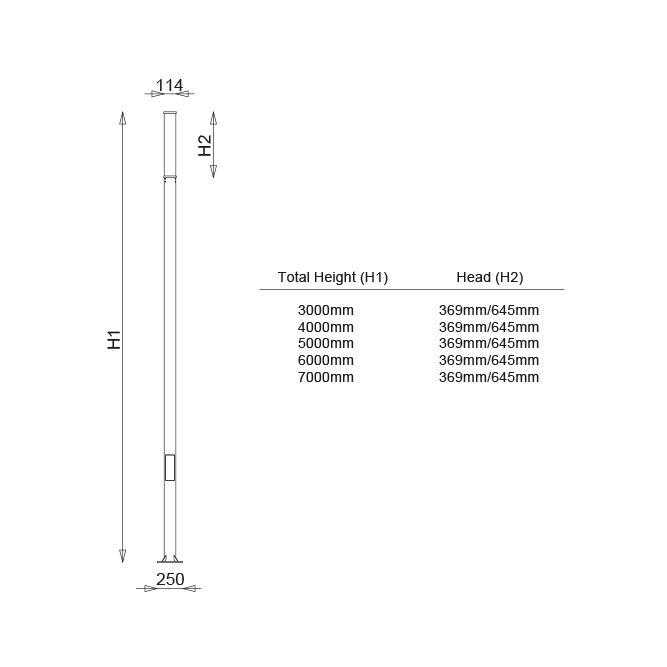

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
YÜKSEKLİK
60-74-031-01-20-40-XX-X (40 LED)
20W
2813lm - 3020lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-40-40-XX-X (40 LED)
40W
5247lm - 5633lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-50-40-XX-X (40 LED)
50W
6415lm - 6887lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-60-40-XX-X (40 LED)
60W
7469lm - 8018lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-70-40-XX-X (40 LED)
70W
8522lm - 9149lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-30-80-XX-X (80 LED)
30W
4300lm - 4617lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-40-80-XX-X (80 LED)
40W
5652lm - 6067lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-50-80-XX-X (80 LED)
50W
6953lm - 7464lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-60-80-XX-X (80 LED)
60W
8181lm - 8783lm
3000K-4000K
3-4-5-6-7m
60-74-031-01-70-80-XX-X (80 LED)
70W
9403lm - 10094lm
3000K-4000K
3-4-5-6-7m
X: Led Rengi, XX: Yükseklik

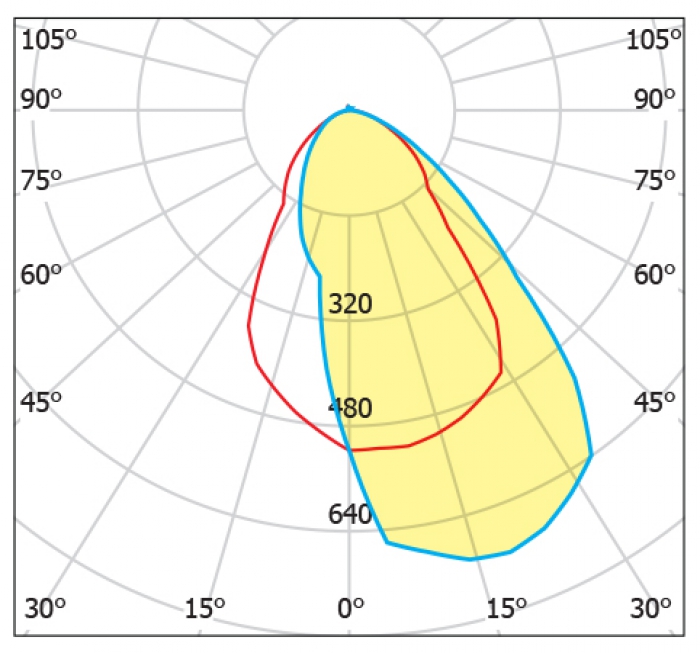

IŞIK EĞRİLERİ
