ORION 45 1D 2B
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium / steel extrusion die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

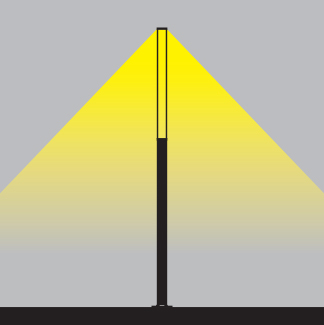

- Conformity mark.LIGHT DISTRIBUTION

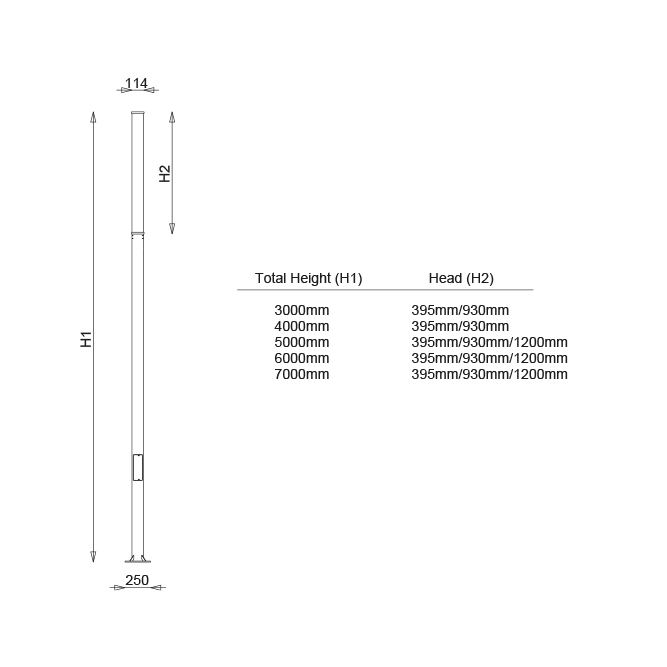

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMP.
HEIGHT
60-74-031-02-18-32-XX-X (32 LED)
18W
2514lm - 2699lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-32-32-XX-X (32 LED)
32W
4243lm - 4555lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-50-32-XX-X (32 LED)
50W
6299lm - 6762lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-64-32-XX-X (32 LED)
64W
7713lm - 8281lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-74-32-XX-X (32 LED)
74W
8680lm - 9318lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-40-80-XX-X (80 LED)
40W
5564lm - 5973lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-50-80-XX-X (80 LED)
50W
6868lm - 7374lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-60-80-XX-X (80 LED)
60W
8005lm - 8593lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-70-80-XX-X (80 LED)
70W
9230lm - 9908lm
3000K-4000K
3-4-5-6-7m
60-74-031-02-56-112-XX-X (112 LED)
56W
7830lm - 8406lm
3000K-4000K
5-6-7m
60-74-031-02-70-112-XX-X (112 LED)
70W
9720lm - 10435lm
3000K-4000K
5-6-7m
60-74-031-02-80-112-XX-X (112 LED)
80W
10819lm - 11614lm
3000K-4000K
5-6-7m
60-74-031-02-95-112-XX-X (112 LED)
95W
12686lm - 13619lm
3000K-4000K
5-6-7m
X: Led Color, XX: Pole Height
