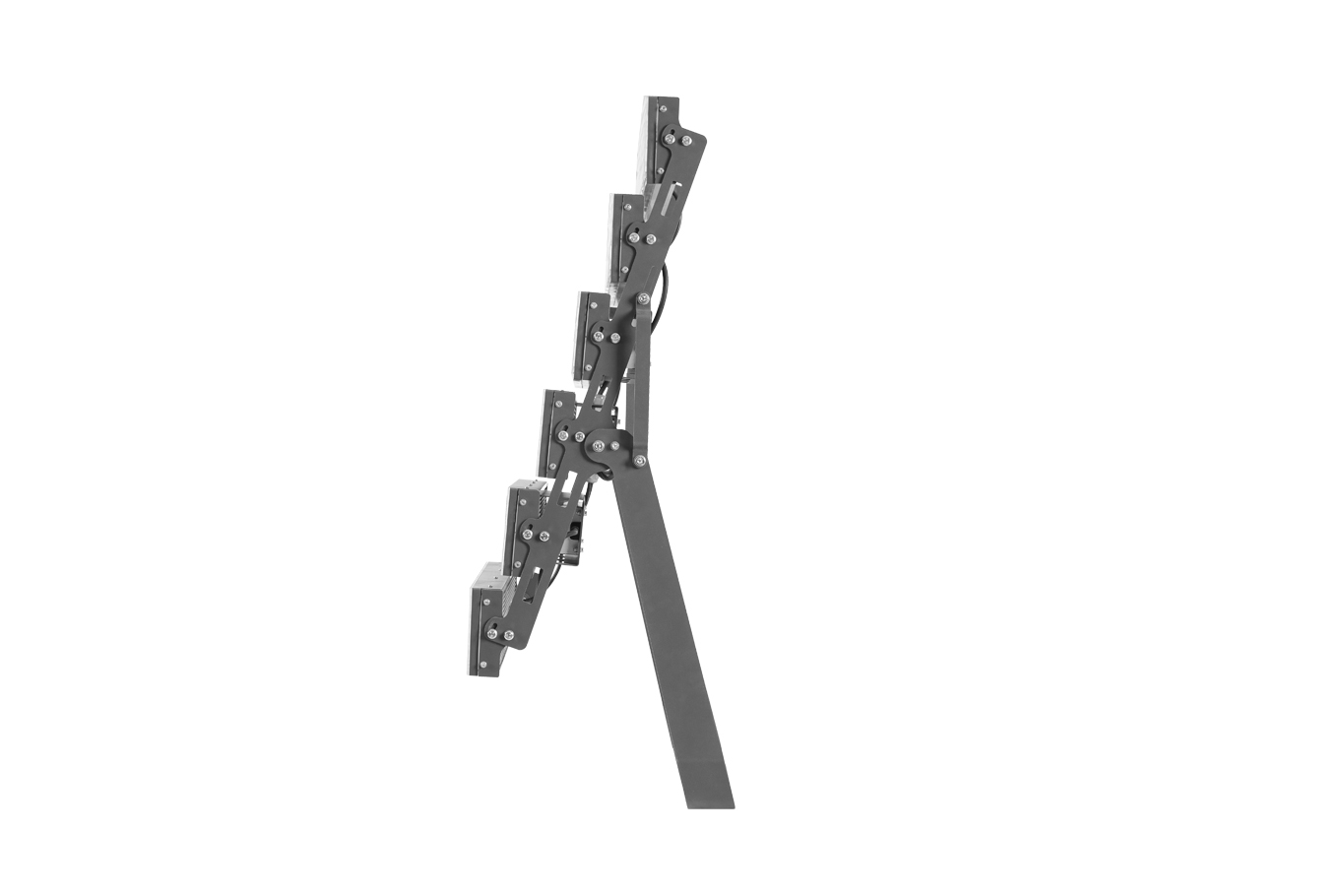

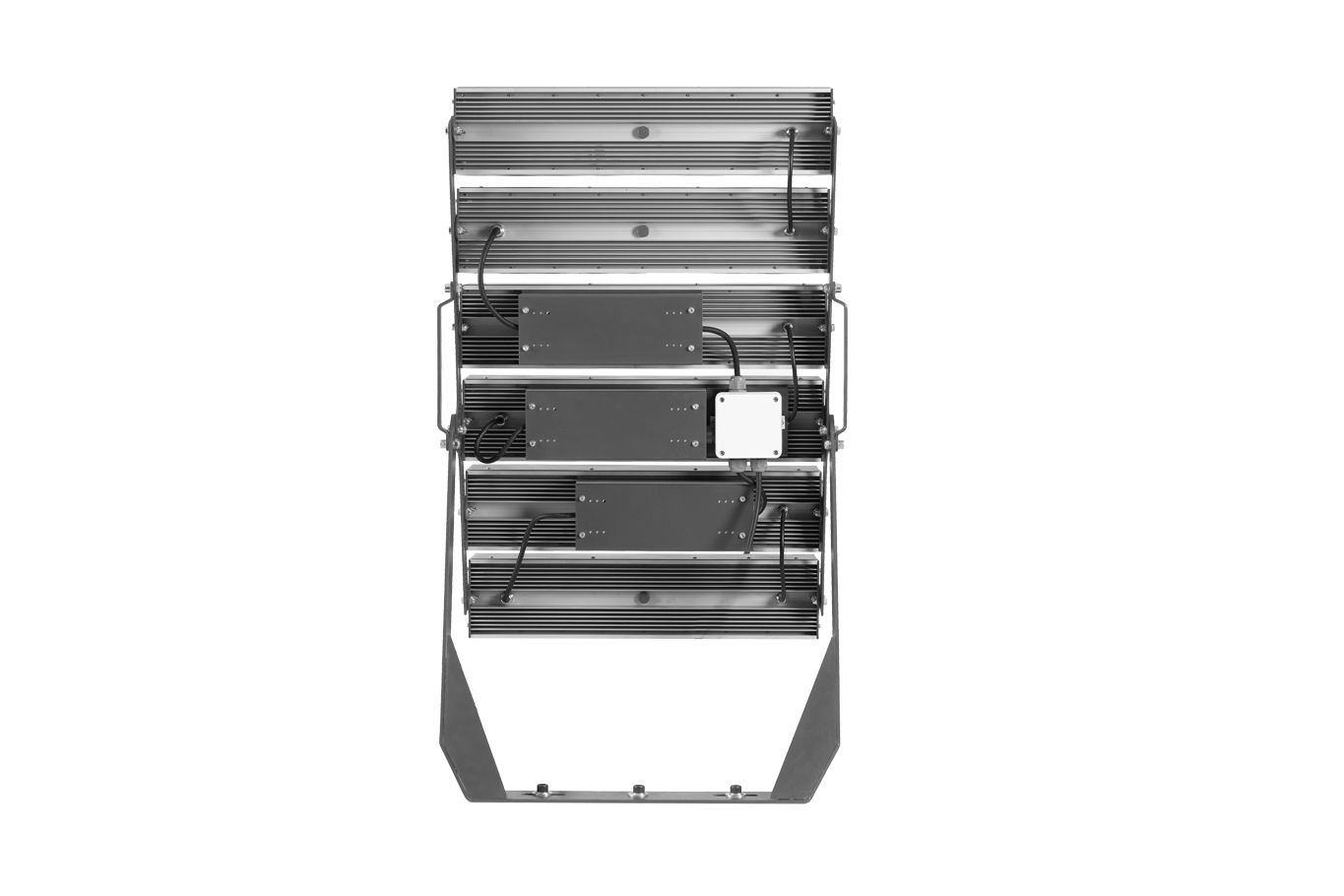

FLOODLIGHTS / PRIMUS PRL- 6 (MOVABLE)

PRIMUS PRL- 6 (MOVABLE)

Product Description

Housing material Aluminium extrusion
Lens material PMMA
Light distribution 15° - 40° - Asym
Input Voltage 100-305 V AC
Power factor (min.) 0.92
Dimmable (optional) 1-10V, DALI
Protection class IP66
Impact protection   IK09
Net weight  29,6 kg
Certificate EN 60598, CE

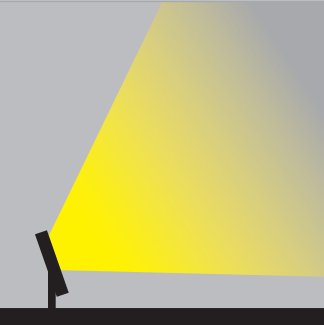

LIGHT DISTRIBUTION
PRIMUS PRL- 6 (MOVABLE)

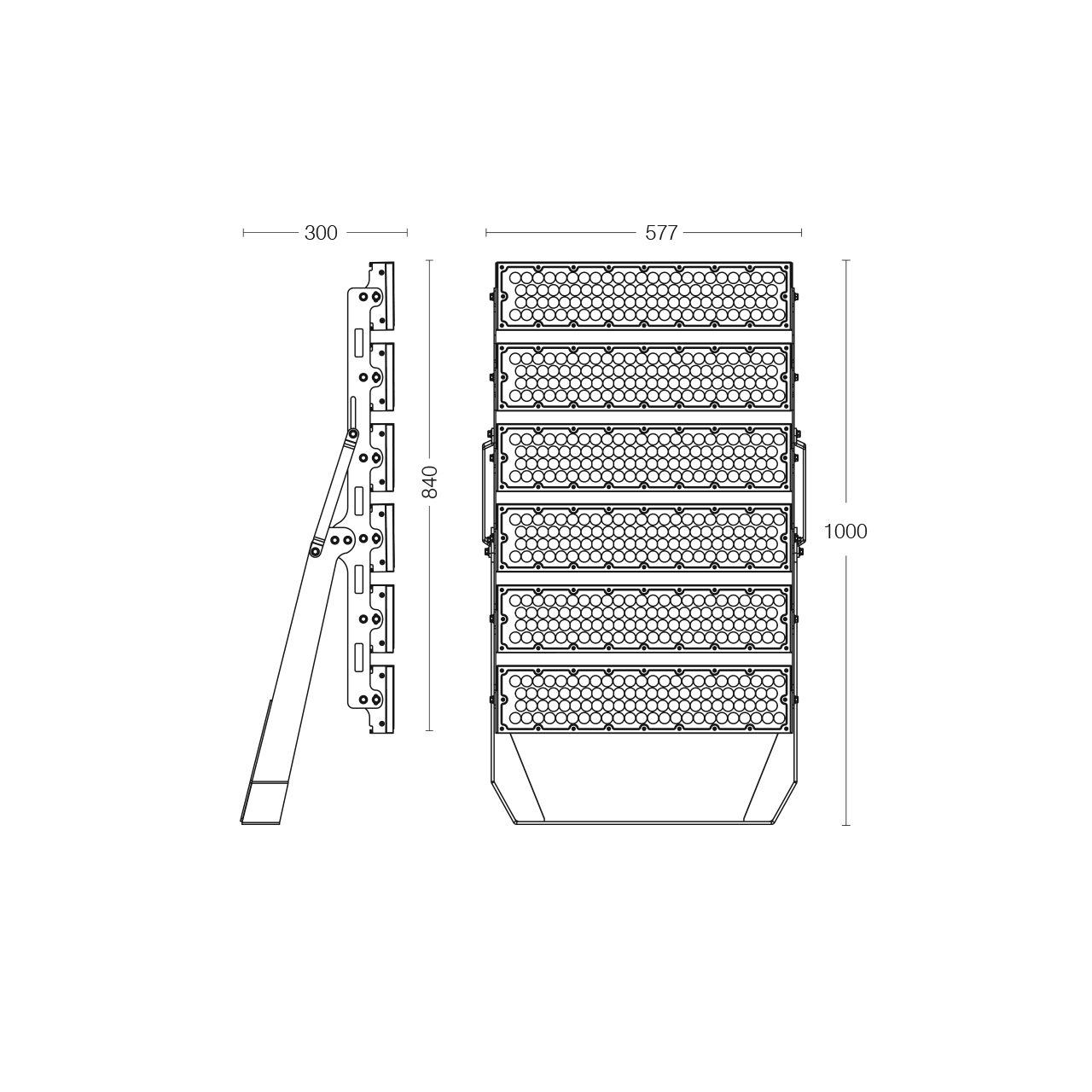

TECHNICAL DRAWING
DOWNLOADS
×
CATALOG PAGES
×
TECHNICAL DRAWING (AUTOCAD FILE)
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
STANDARD LUMEN OUTPUT (Beam angle options: 15°-40°-ASYM)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-32-600-576-XX-X
600W
99000lm - 102600lm
3000K-4000K

45-32-700-576-XX-X
700W
114100lm - 117600lm
3000K-4000K

SPORT ILLUMINATION (Beam angle options: 15°-40°-ASYM)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-37-600-576-XX-X
600W
62400lm
5700K

45-37-700-576-XX-X
700W
71400lm
5700K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

LIGHT CURVES

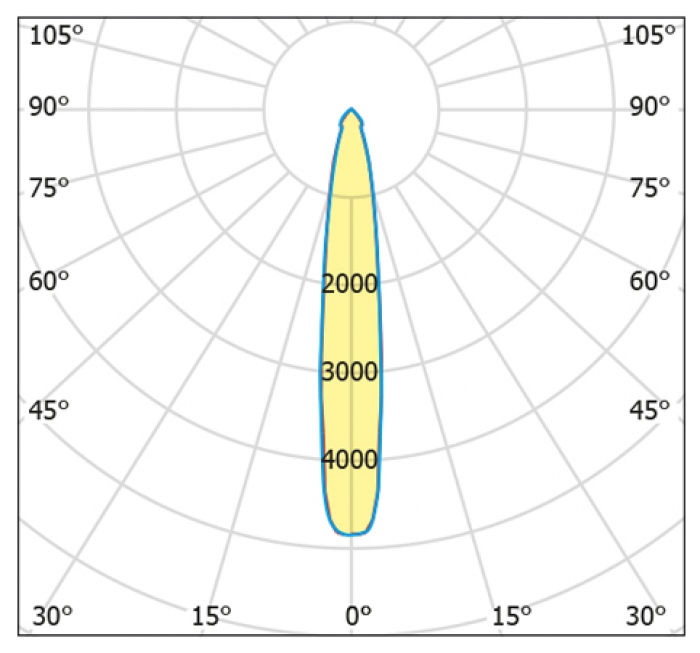

15°

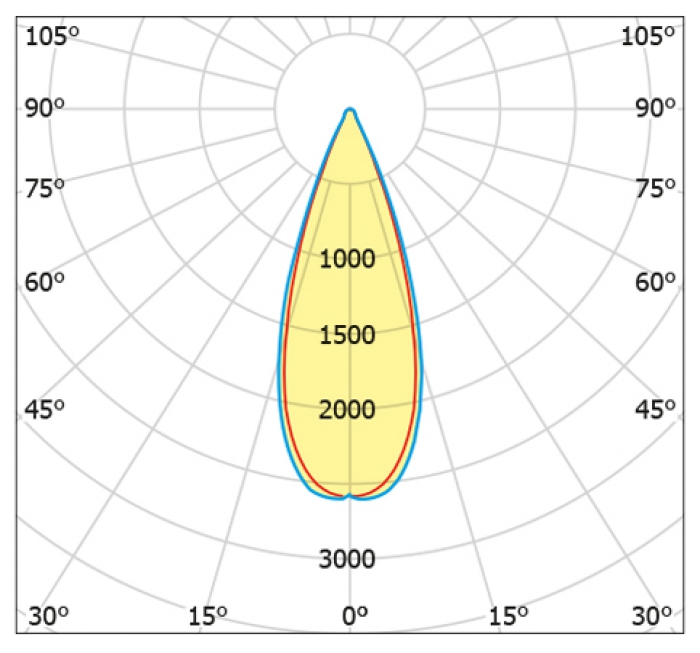

40°

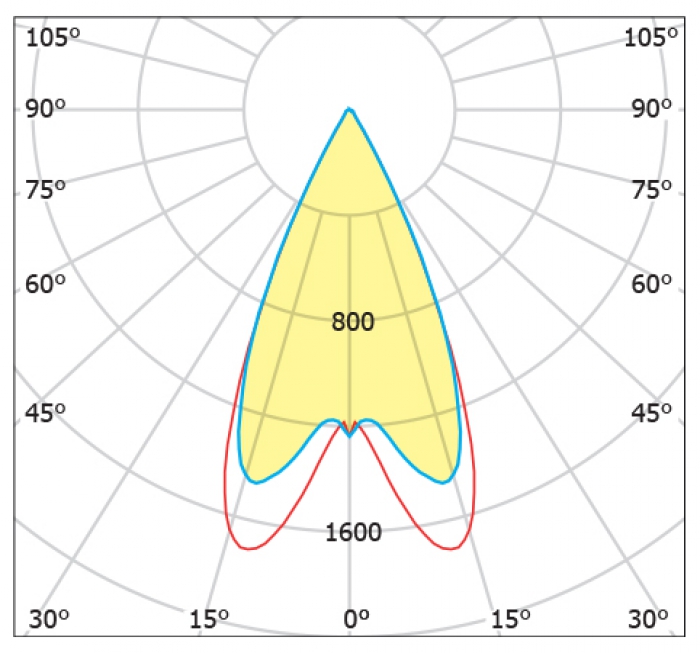

ASYM
40°(SPORT 4K)
