DATA SHEETS
UP / DOWN SCONCES / QUARK ROUND
QUARK ROUND
APPLICATION
LED high-performance sconce with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Made of aluminium die cast and extrusion
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 30°-50° ( 9 in 1 full lens)
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 90 – 264V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 3,38 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.LIGHT DISTRIBUTION

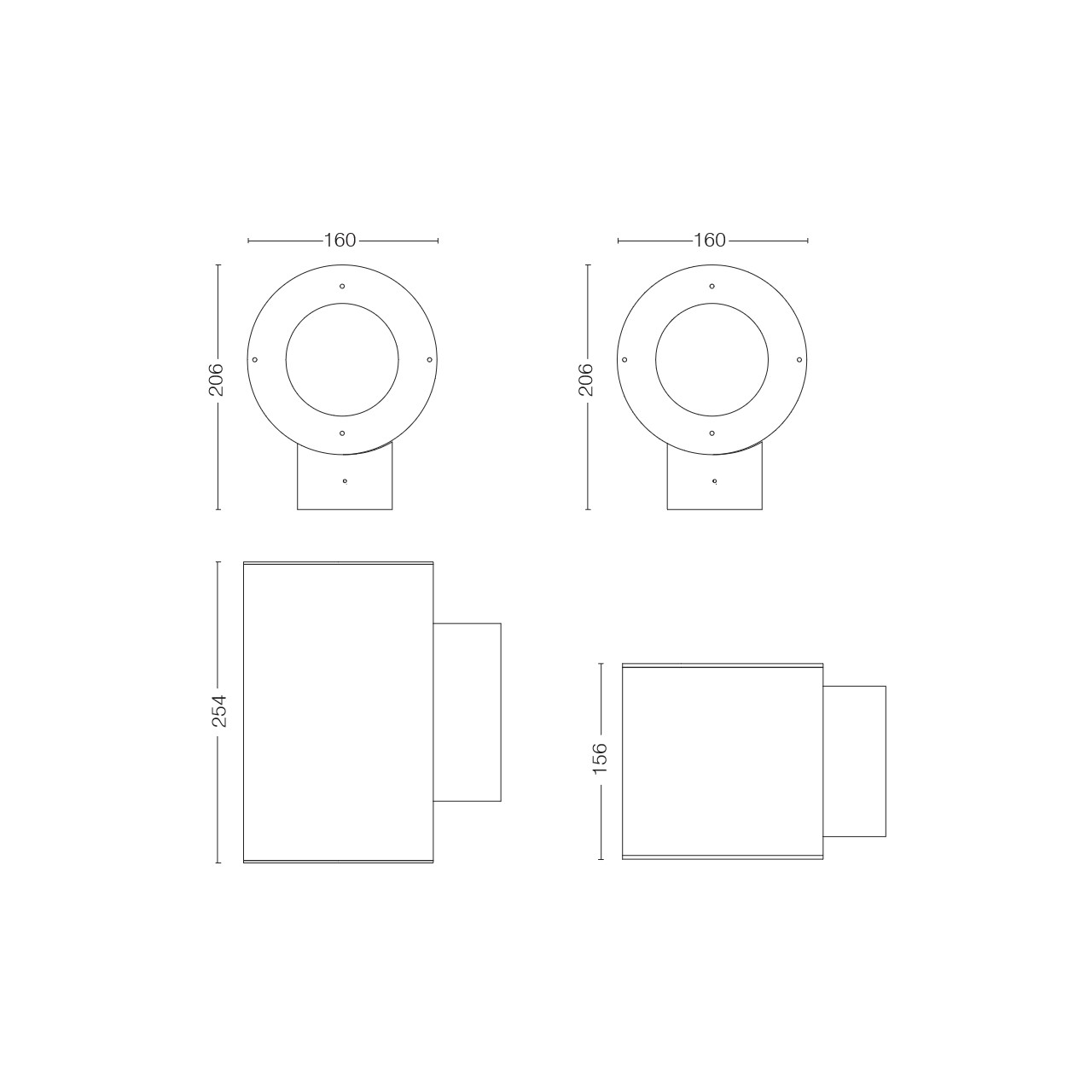

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
TYPE
20-011-09-09-XX-X
9W
756lm - 796lm
3000K-4000K
SINGLE HEAD
20-011-015-09-XX-X
15W
1111lm - 1169lm
3000K-4000K
SINGLE HEAD
20-011-018-018-XX-X
18W
1512lm - 1584lm
3000K-4000K
DOUBLE HEAD
20-011-018-030-XX-X
30W
2220lm - 2340lm
3000K-4000K
DOUBLE HEAD
X: Led Color
LIGHT CURVES
30°
