SURFACE MOUNT LUMINAIRES / RIO
RIO
APPLICATION
LED high-performance surface mounted with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Floodlight made of aluminium die cast,
Aluminium and stainless steel.
Clear 3mm polycarbon glass
Silicon base seal gasket
Mounting bracket made of plastic.
Electrostatic powder coating.
Lens angle 8°- 25°- 45°- 60°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 90 – 264V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Operation temperature -25°C / +55°C
Weight: 2,23 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.LIGHT DISTRIBUTION
TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
20-03-18-XX-X
18W
2046lm - 2152lm
3000K-4000K
20-03-25-XX-X
25W
2631lm - 2769lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

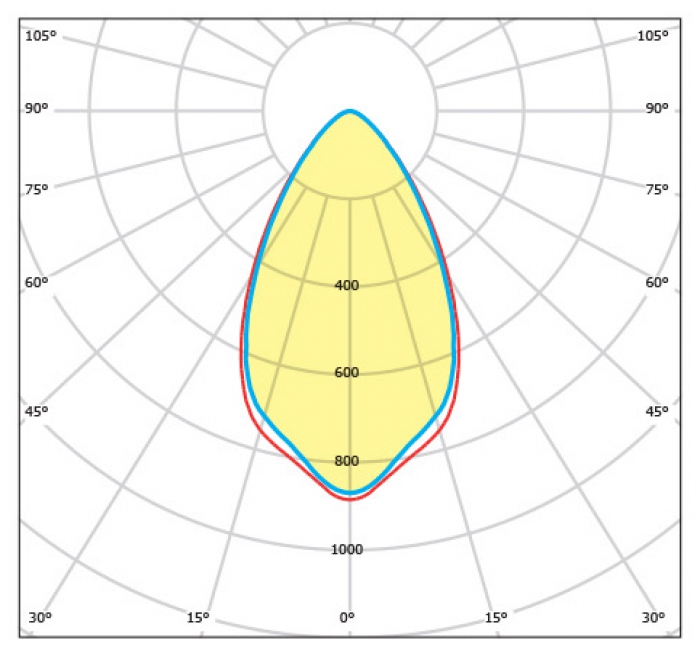

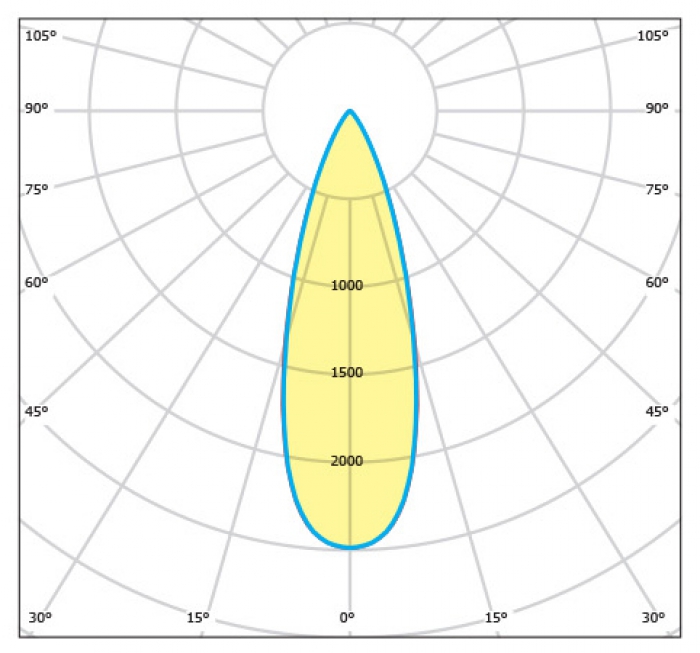

LIGHT CURVES
8°
25°
45°
60°
