FLOODLIGHTS / ROON S

ROON S

Product Description

Housing material Aluminium die-cast
Lens material PMMA
Light distribution 15°, 40°, 60°, 90°, 15°x40°
Input Voltage 100-305 V AC
Power factor (min.) 0.92
Dimmable (optional) 1-10V, DALI
Protection class IP66
Impact protection   IK09
Net weight  5,9 kg
Certificate EN 60598, CE

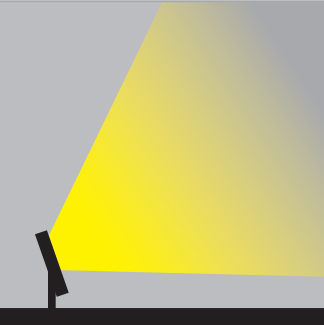

LIGHT DISTRIBUTION
ROON S

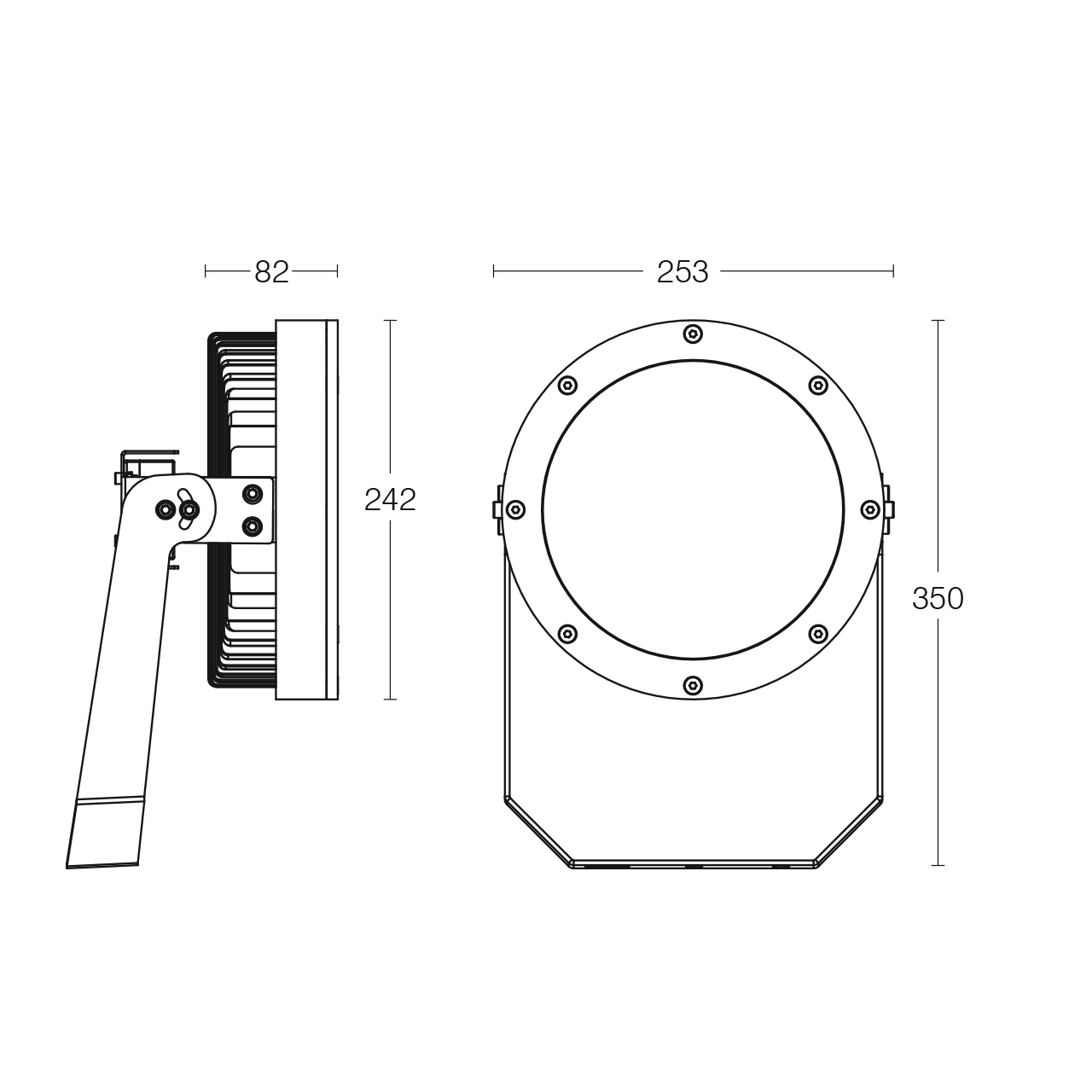

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
MIDPOWER LED - STANDART LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-28-40-48-XX-X
40W
5166lm - 5436lm
3000K-4000K

45-28-50-48-XX-X
50W
6162lm - 6484lm
3000K-4000K

HIGHPOWER LED - HIGH LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-28-60-48-XX-X
60W
7409lm - 7957lm
3000K-4000K

45-28-70-48-XX-X
70W
8458lm - 9082lm
3000K-4000K

45-28-80-48-XX-X
80W
9445lm - 10142lm
3000K-4000K

45-28-40-48-XX-R
40W
2083lm
RED

45-28-50-48-XX-R
50W
2512lm
RED

45-28-60-48-XX-R
60W
2920lm
RED

45-28-70-48-XX-R
70W
3306lm
RED

45-28-80-48-XX-R
80W
3681lm
RED

45-28-40-48-XX-G
40W
3996lm
GREEN

45-28-50-48-XX-G
50W
4648lm
GREEN

45-28-60-48-XX-G
60W
5220lm
GREEN

45-28-70-48-XX-G
70W
5736lm
GREEN

45-28-80-48-XX-G
80W
6216lm
GREEN

45-28-40-48-XX-B
40W
1463lm
BLUE

45-28-50-48-XX-B
50W
1718lm
BLUE

45-28-60-48-XX-B
60W
1946lm
BLUE

45-28-70-48-XX-B
70W
2155lm
BLUE

45-28-80-48-XX-B
80W
2345lm
BLUE

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

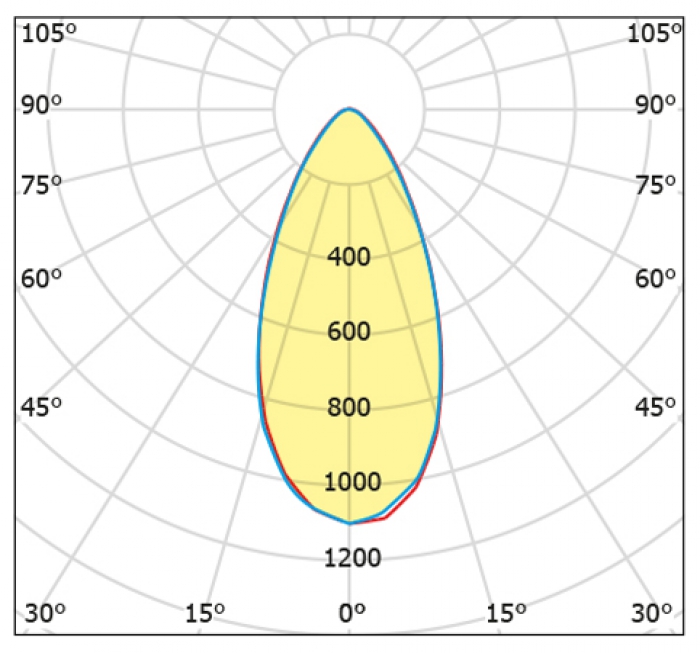

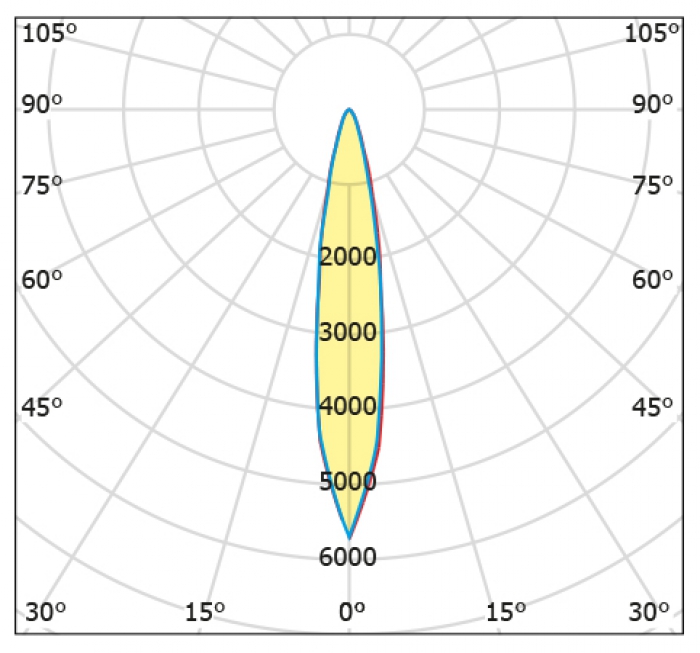

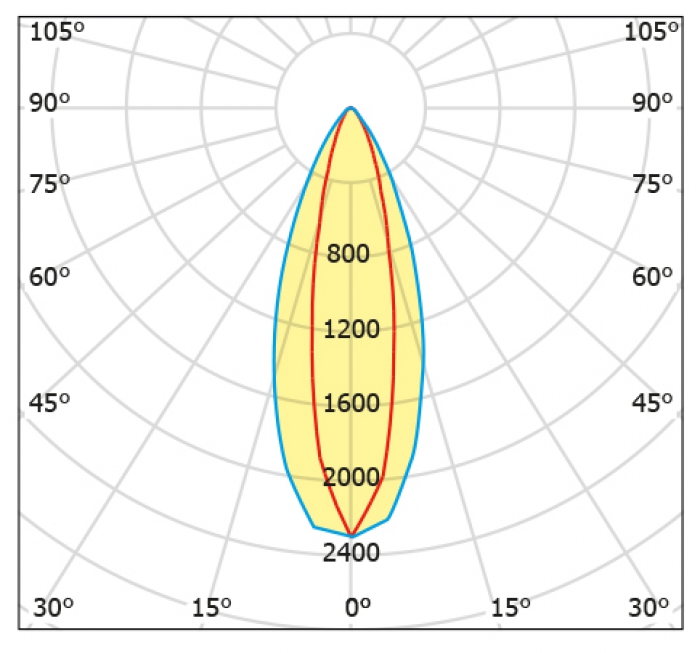

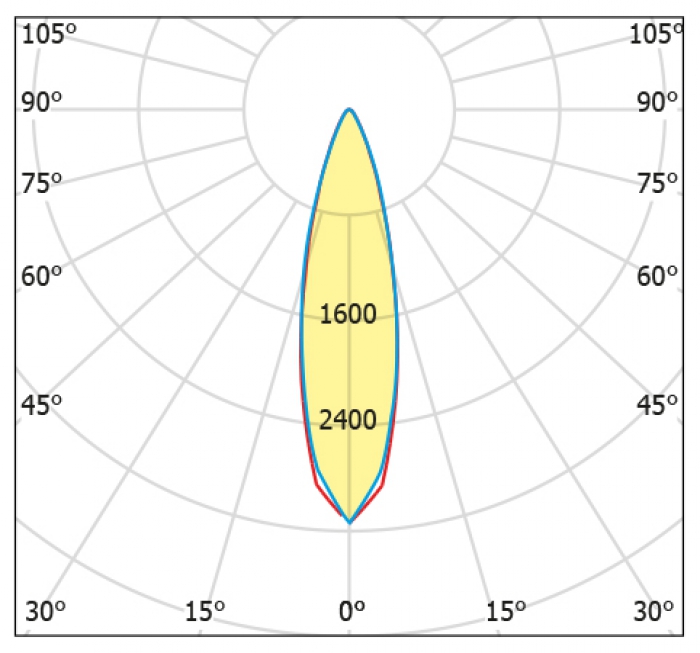

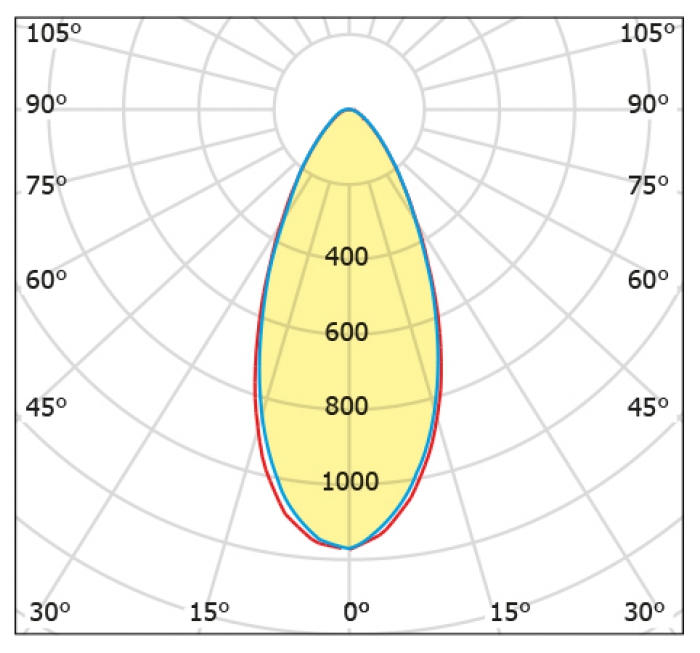

LIGHT CURVES
15°
40°
60°
90°
15x40°
