KENTSEL AYDINLATMA / SEGEL
SEGEL
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban Light made of aluminium die cast,
Body pole steel with electro galvanized
Clear 5mm safety glass
Silicon rubber gasket
Mounting detail anchor system
Mounting bracket made of steel
Colour standard MT-X6-23
All RAL Codes or
Special architectural paints
Lens angle 40°-60°-90°
LED power supply unit
Input 90 –264V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP66
Impact strenght IK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

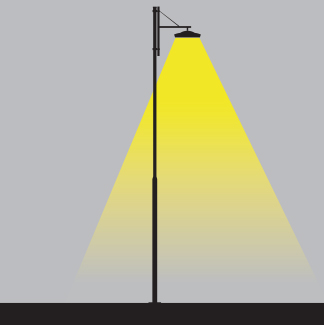

- Conformity mark.IŞIK DAĞITIMI
TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
MODEL
60-56-140-XX-X
140W
19745lm - 20777lm
3000K-4000K
LED
60-56-175-XX-X
175W
23535lm - 24765lm
3000K-4000K
LED
60-56-190-XX-X
190W
25158lm - 26473lm
3000K-4000K
LED
60-56-230-XX-X
230W
29035lm - 30553lm
3000K-4000K
LED
XX: Lens Açısı, X: Led Rengi
Standart renk sıcaklığı 4000K, istenildiği taktirde 6500K olarak üretilebilir.

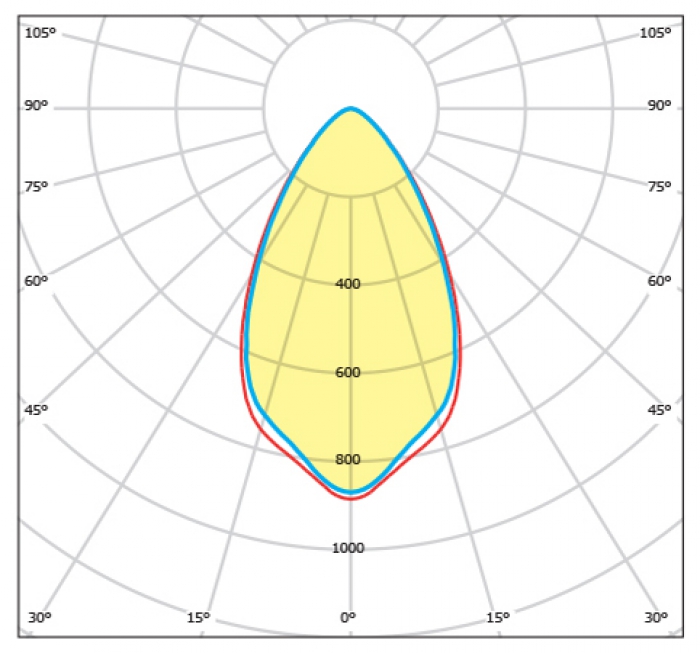

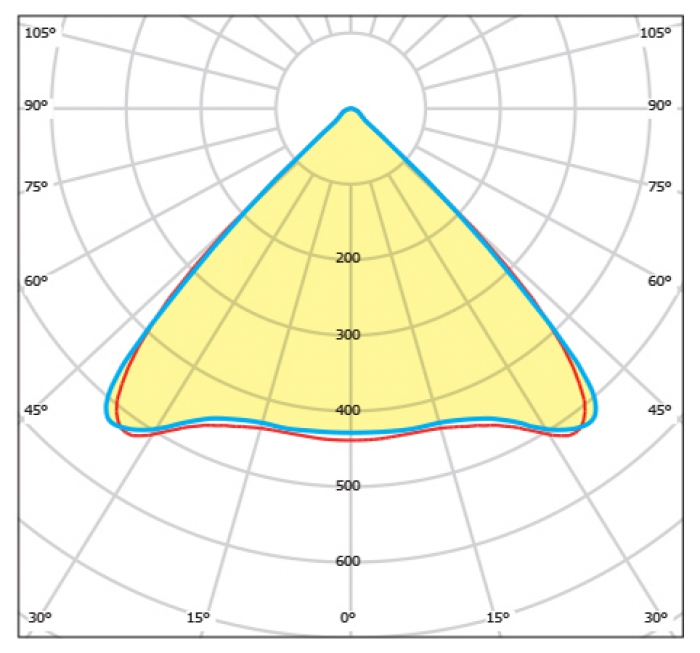

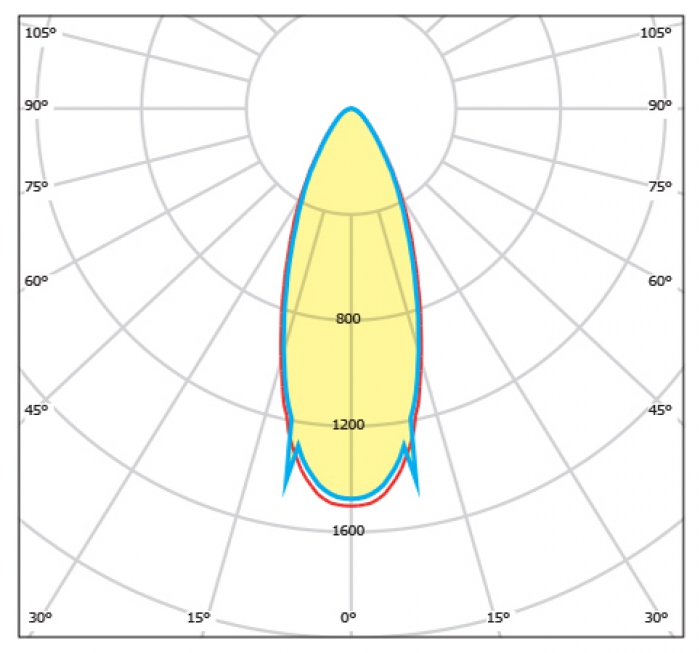

IŞIK EĞRİLERİ
40°
60°
90°
