Bayled
FLOODLIGHTS / SIRUS L RGB / RGBW(A)

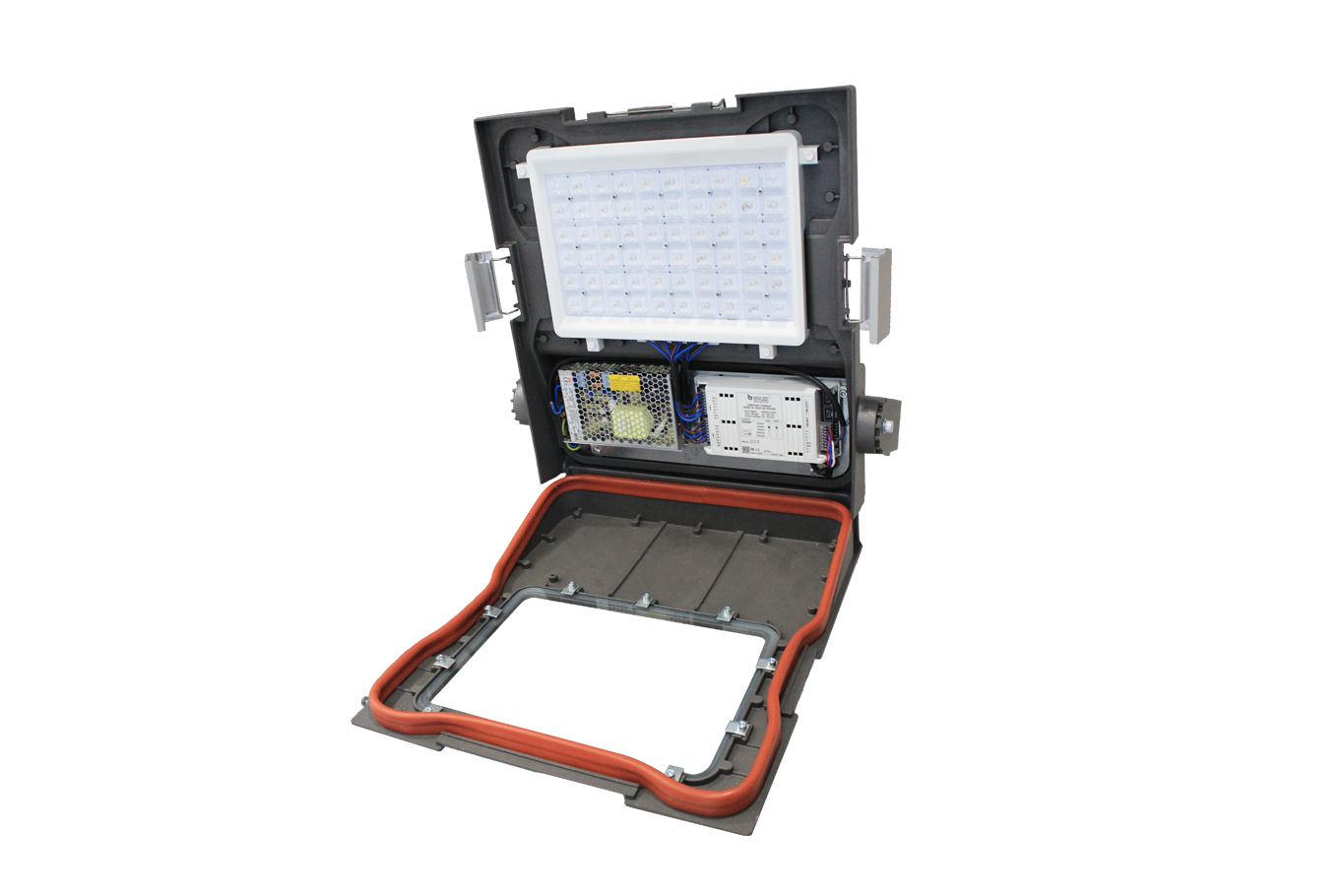

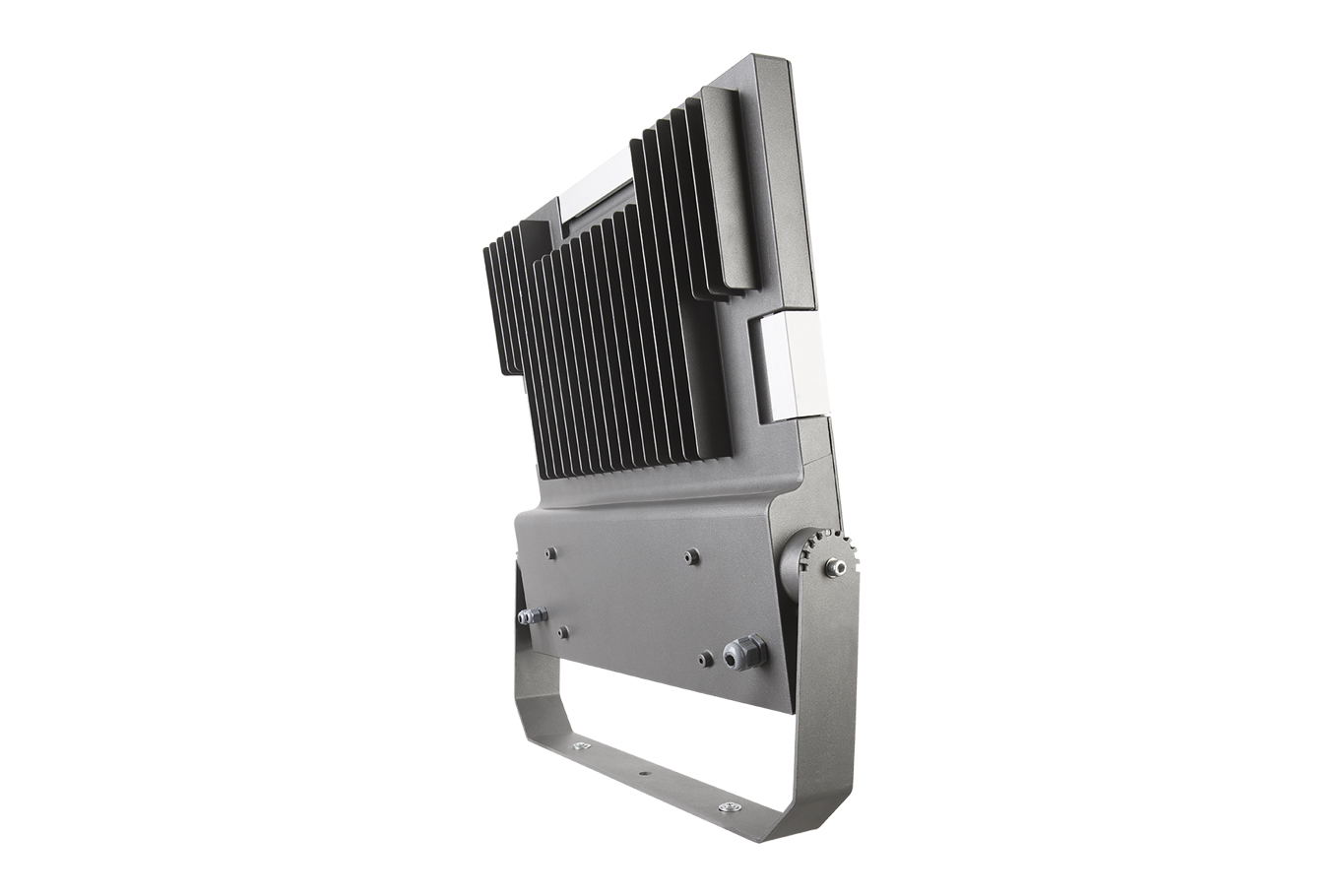

SIRUS L RGB / RGBW(A)

Product Description

Housing material Aluminium die-cast
Lens material PMMA
Light distribution 30°-60°-90°-ASYM
Input Voltage 85-264 V AC
Power factor (min.) 0.92
DMX DMX512
Protection class IP66
Impact protection   IK09
Net weight  14,86 kg
Certificate EN 60598, CE

LIGHT DISTRIBUTION
SIRUS L RGB / RGBW(A)

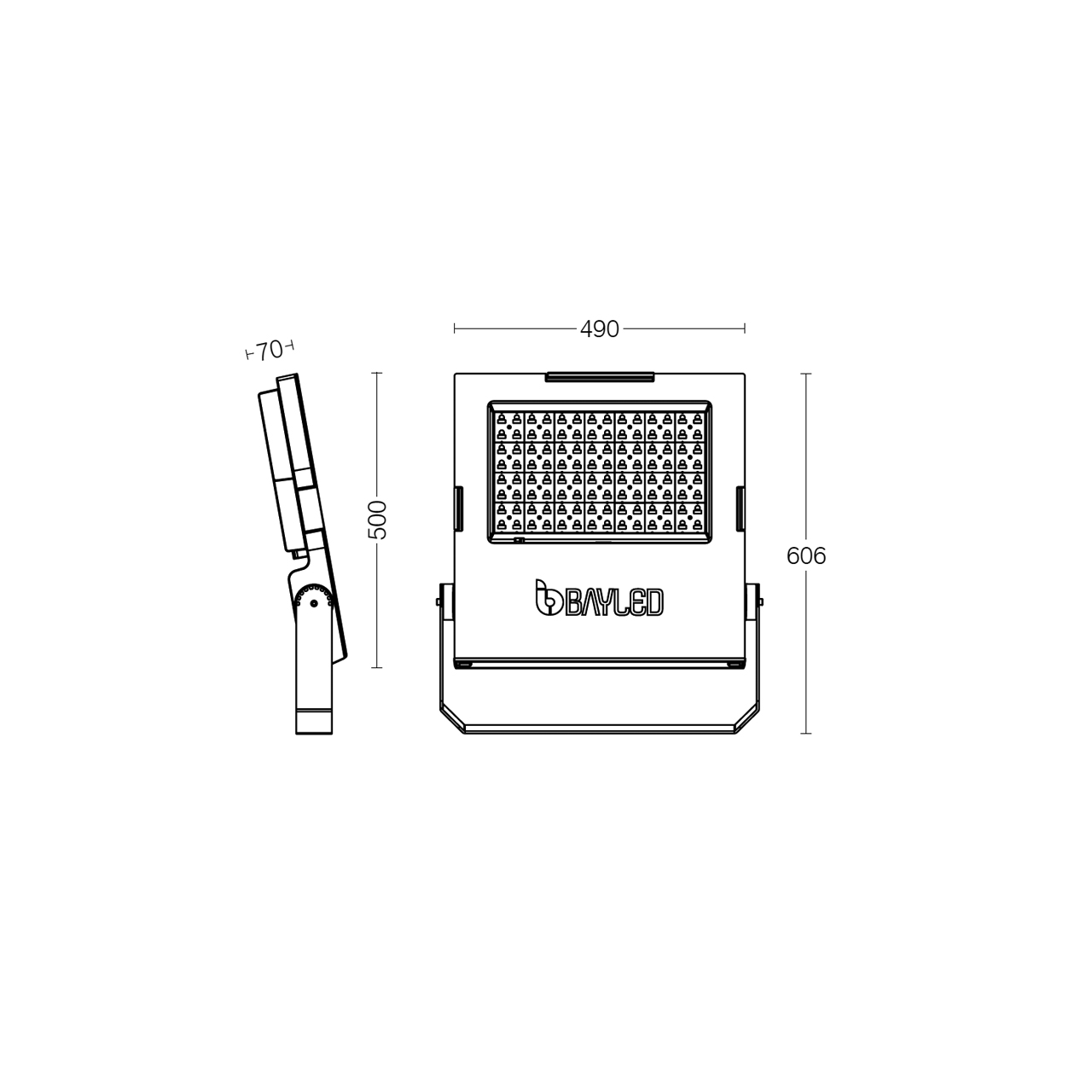

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
CONNECTION DIAGRAM(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS

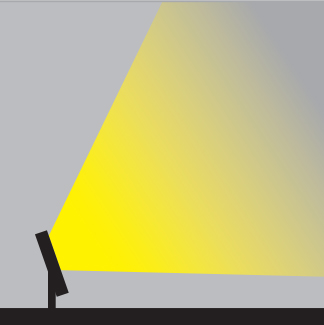

APPLICATIONS
PURCHASE ORDER TABLE
SIRUS L RGB
CODE
POWER
COLOR TEMPERATURE

45-01-145-108-XX-RGB
145W
RGB

45-01-210-108-XX-RGB
210W
RGB

45-01-290-108-XX-RGB
290W
RGB

SIRUS L RGBW(A)
CODE
POWER
COLOR TEMPERATURE

45-01-145-108-XX-RGBW
145W
RGBW(A)

45-01-210-108-XX-RGBW
210W
RGBW(A)

45-01-290-108-XX-RGBW
290W
RGBW(A)

XX: Lens Angle

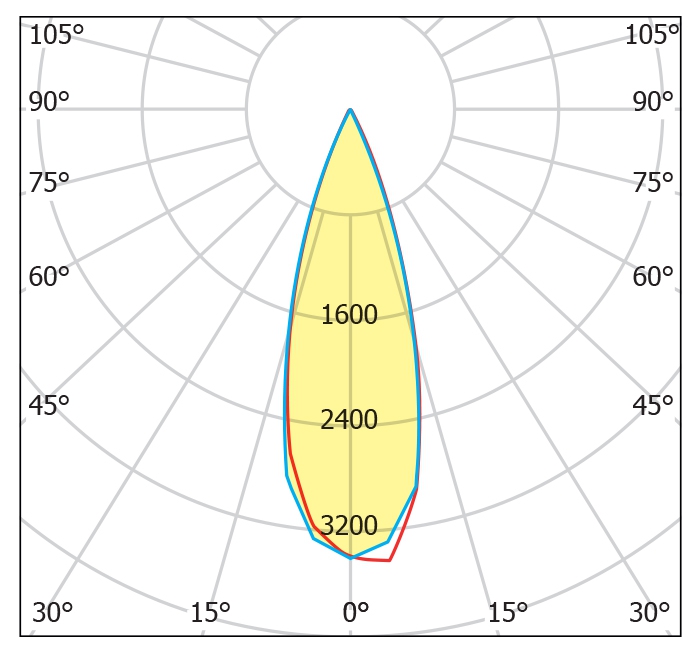

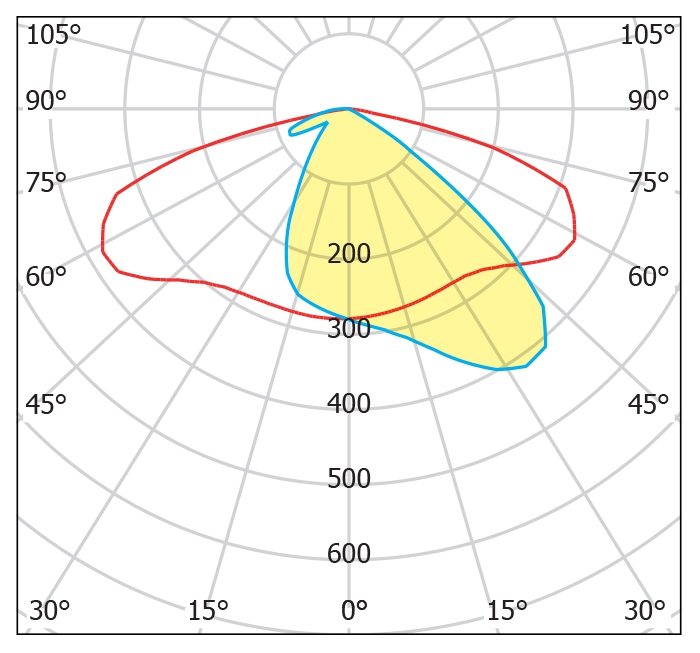

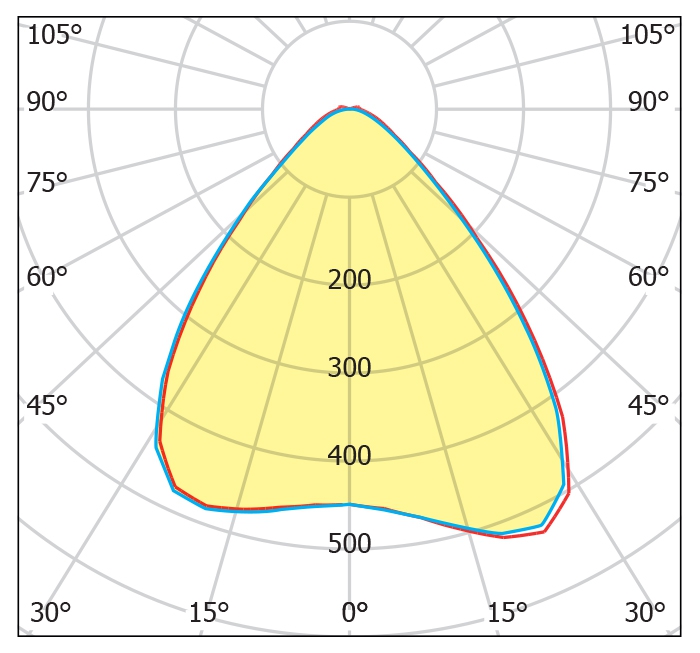

LIGHT CURVES
30°
60°
90°
ASYM
ROHS NO UV NO IR LONG LIFE LED IP66 IK08 Geri Dönüşüm Energy Saver DIM Dekoratif Damla CO2 Class I Çekiç CE
