FLOODLIGHTS / SIRUS M

SIRUS M SIRUS M SIRUS M SIRUS M SIRUS M

Product Description

Housing material Aluminium die-cast
Lens material PMMA
Light distribution 15°-40°- 60°- 90°- 30°x96°
Input Voltage 100-305 V AC
Power factor (min.) 0.92
Dimmable (optional) 1-10V, DALI
Protection class IP66
Impact protection   IK09
Net weight  10 kg
Certificate EN 60598, CE

LIGHT DISTRIBUTION
SIRUS M

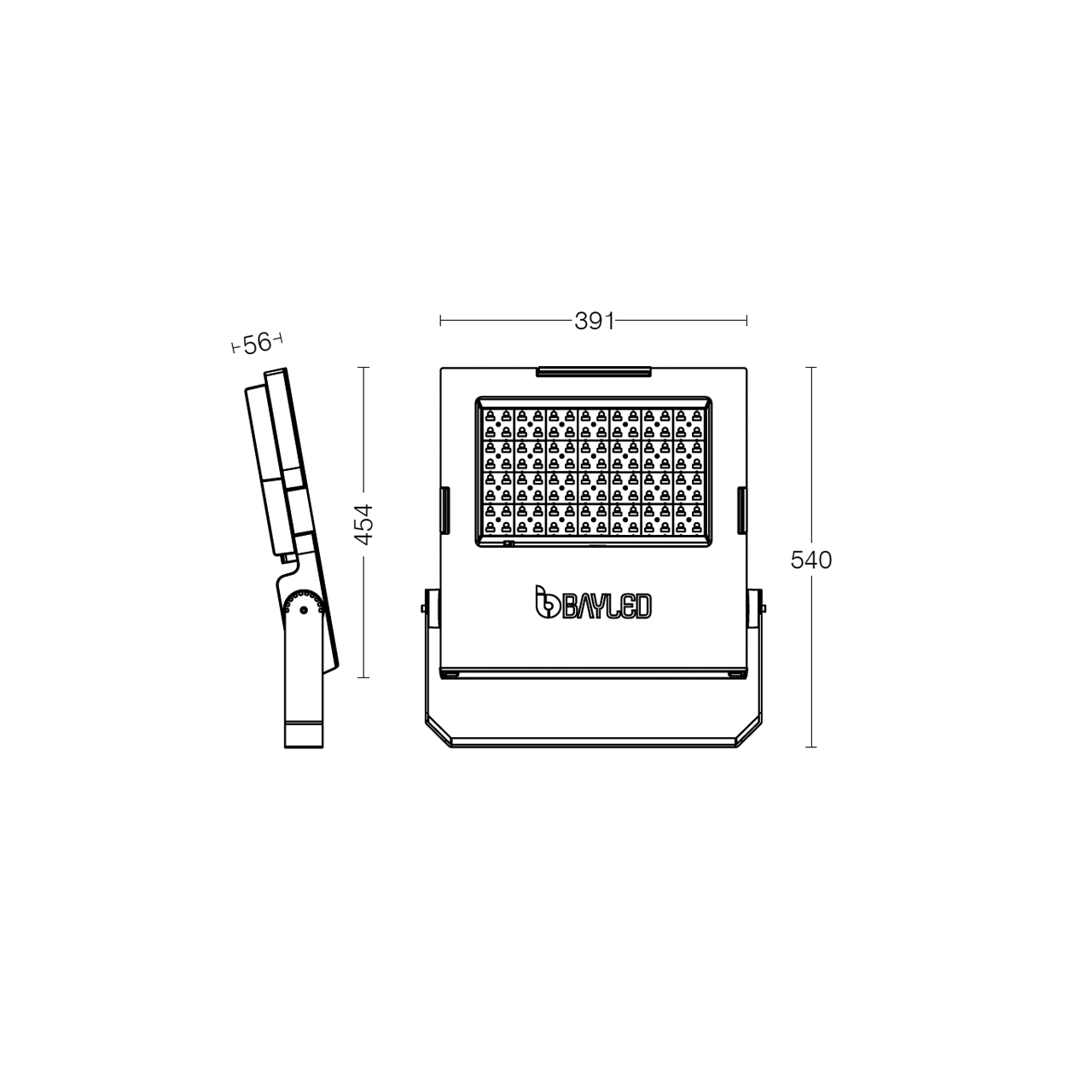

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS & CERTIFICATES
APPLICATIONS
PURCHASE ORDER TABLE
180 LED - STANDART LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-07-120-180-XX-X
120W
17579lm - 18498lm
3000K-4000K

45-07-150-180-XX-X
140W
19976lm - 21020lm
3000K-4000K

45-07-175-180-XX-X
175W
23173lm - 24385lm
3000K-4000K

45-07-200-180-XX-X
190W
24677lm - 25967lm
3000K-4000K

360 LED - HIGH LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-07-200-360-XX-X
200W
28032lm - 29400lm
3000K-4000K

45-07-240-360-XX-X
240W
32425lm - 34320lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

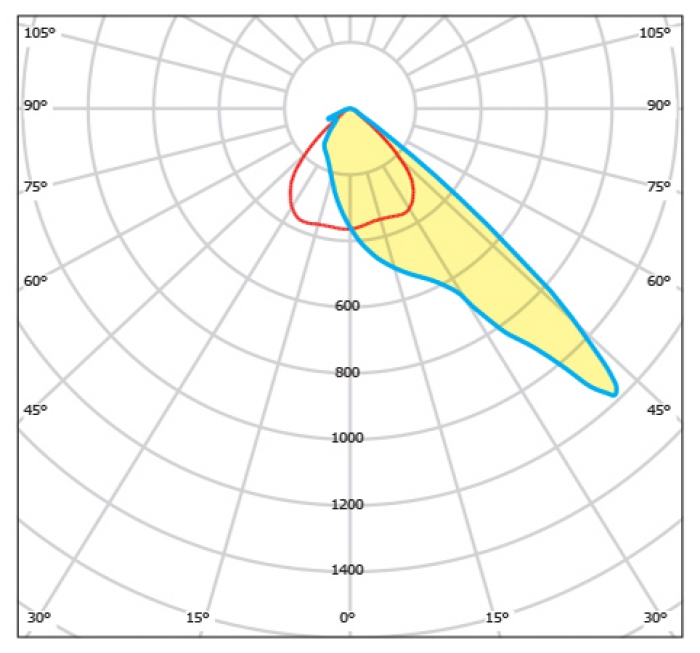

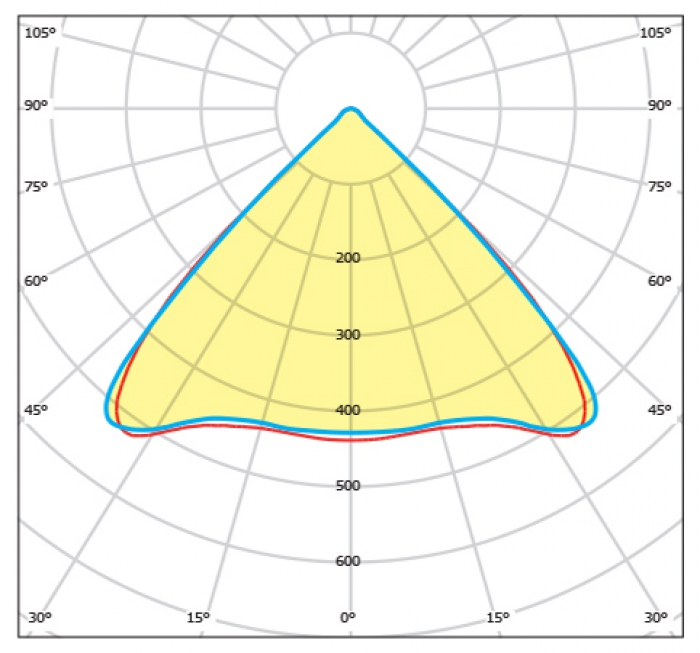

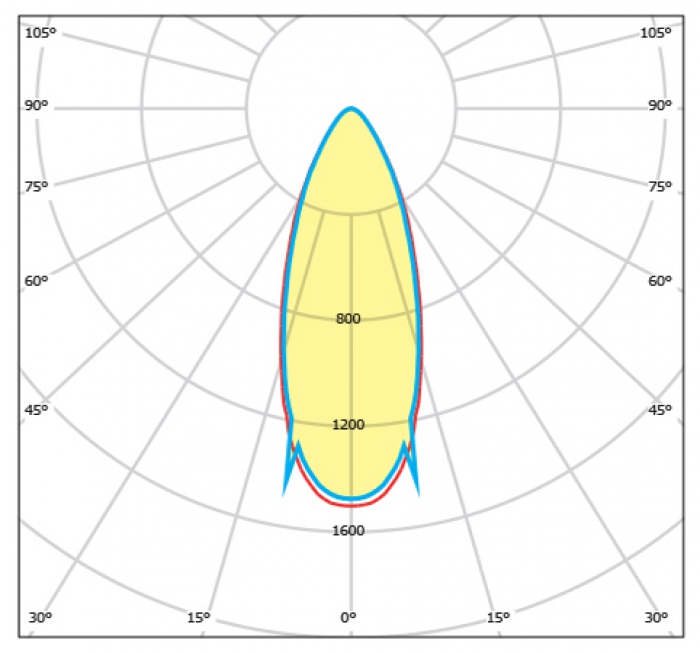

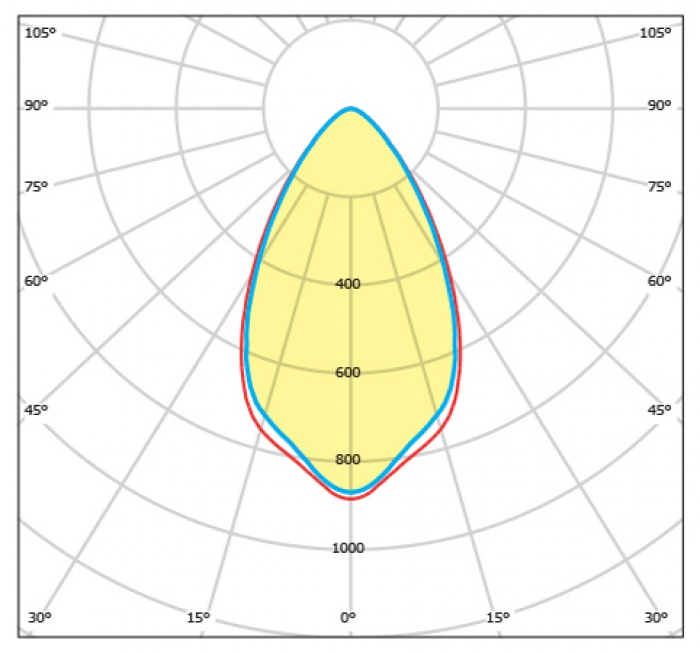

LIGHT CURVES
15°
40°
60°
90°
30x96°
ROHS NO UV NO IR LONG LIFE LED IP66 IK09 Geri Dönüşüm Energy Saver DIM Dekoratif Damla CO2 Class I Çekiç CE
