FLOODLIGHTS / SIRUS M RGB / RGBW(A)

SIRUS M RGB / RGBW(A)

Product Description

Housing material Aluminium die-cast
Lens material PMMA
Light distribution 30°-60°-90°-ASYM
Input Voltage 85-264 V AC
Power factor (min.) 0.92
DMX DMX512
Protection class IP66
Impact protection   IK09
Net weight  10 kg
Certificate EN 60598, CE

LIGHT DISTRIBUTION
SIRUS M RGB / RGBW(A)

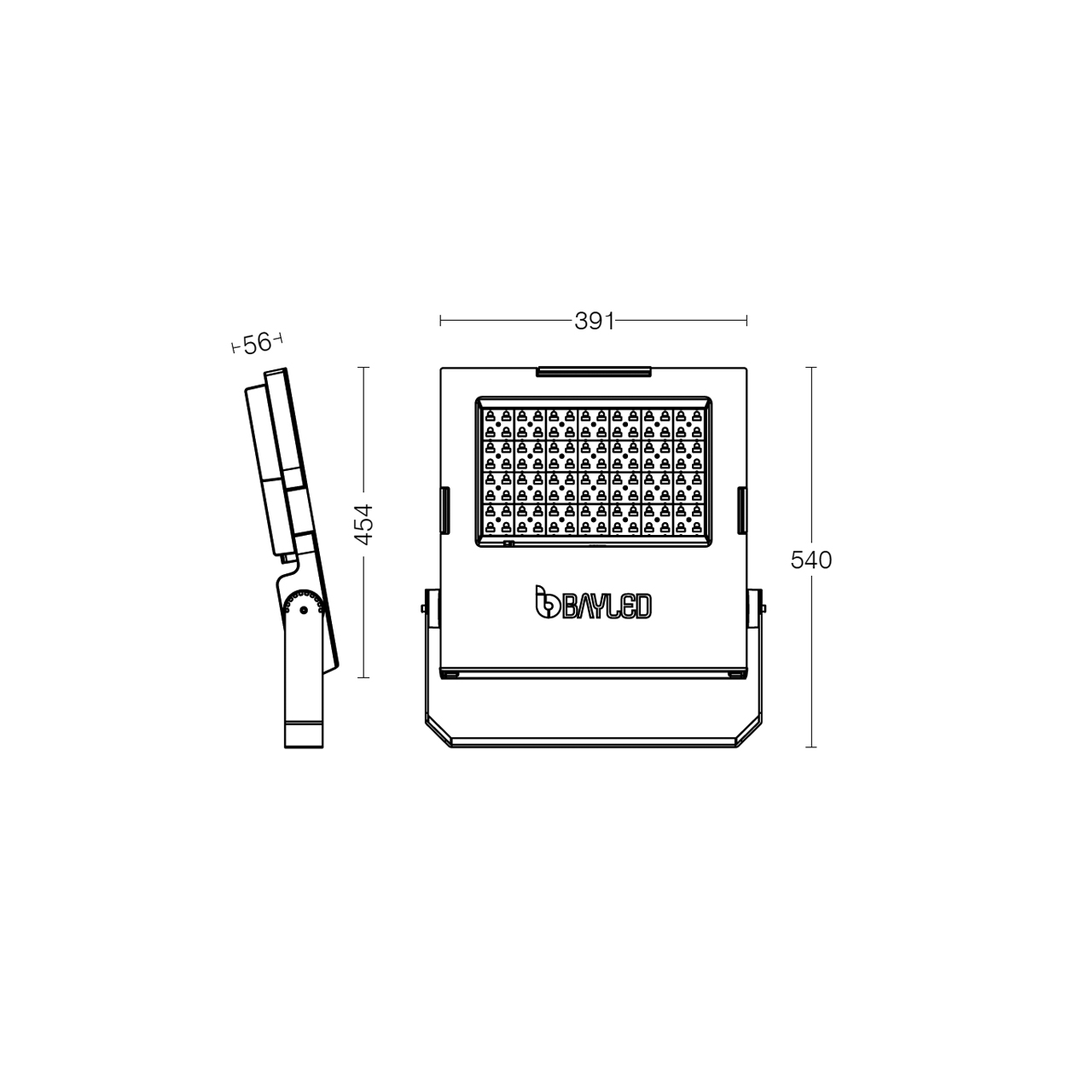

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
SPECIFICATION SHEET(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
TEST REPORTS
APPLICATIONS
PURCHASE ORDER TABLE
SIRUS M RGB
CODE
POWER
COLOR TEMPERATURE

45-07-80-60-XX-RGB
80W
RGB

45-07-115-60-XX-RGB
115W
RGB

45-07-160-60-XX-RGB
160W
RGB

SIRUS M RGBW(A)
CODE
POWER
COLOR TEMPERATURE

45-07-75-56-XX-RGBW
75W
RGBW(A)

45-07-110-56-XX-RGBW
110W
RGBW(A)

45-07-150-56-XX-RGBW
150W
RGBW(A)

XX: Lens Angle

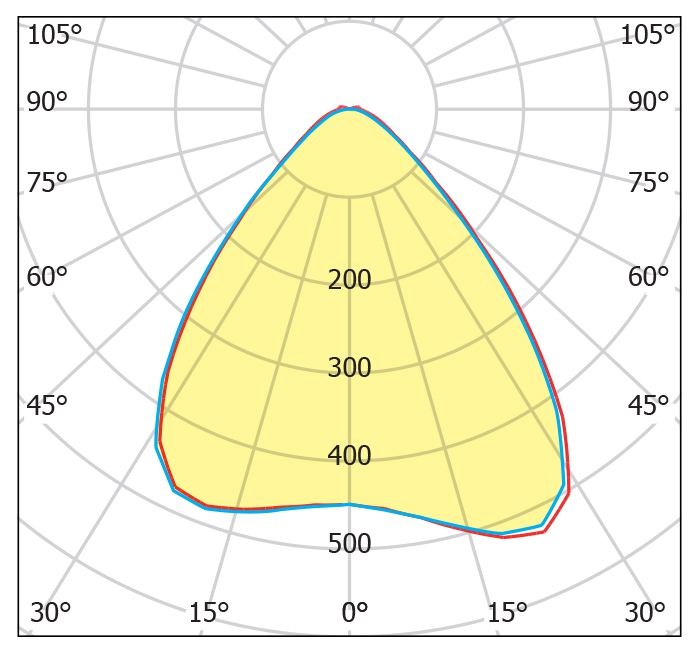

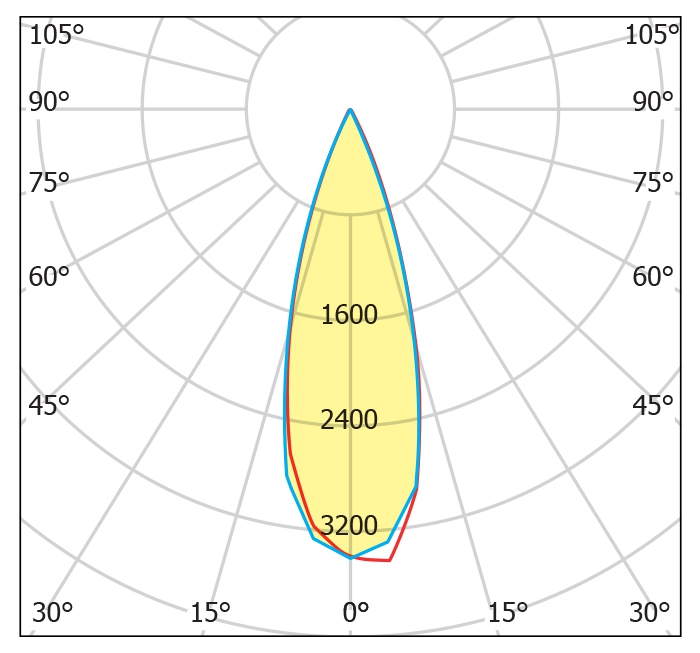

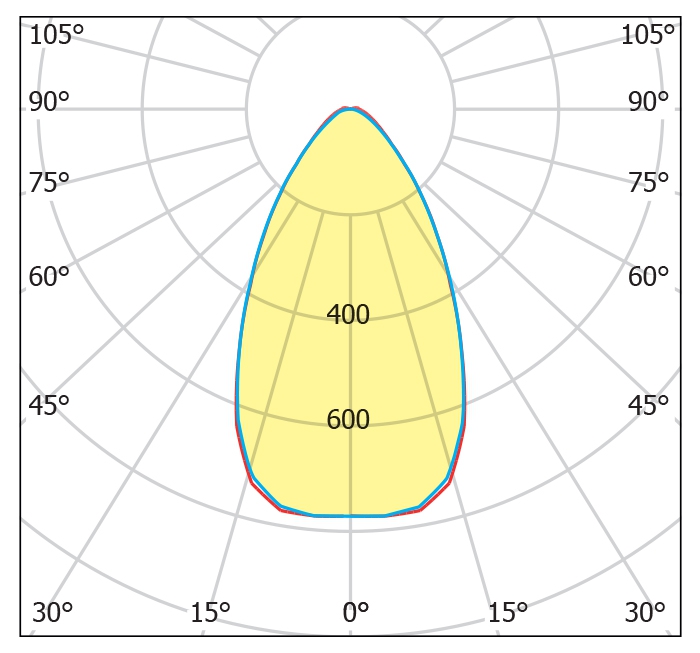

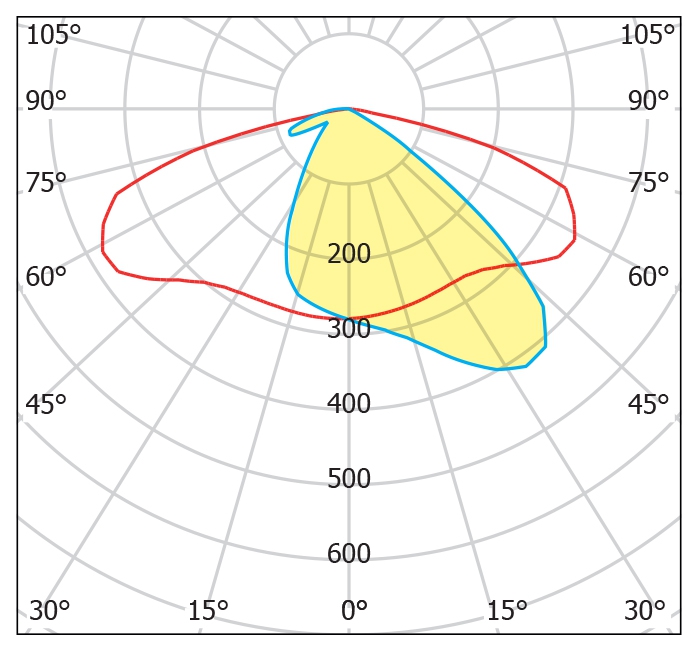

LIGHT CURVES
30°
60°
90°
ASYM
