FLOODLIGHTS / SIRUS RGB / RGBW(A)

SIRUS RGB / RGBW(A)

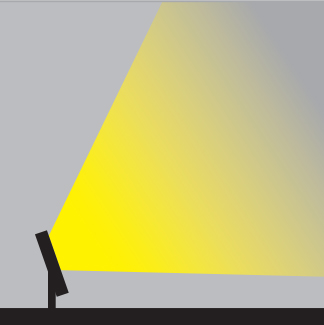

APPLICATION
LED high-performance RGB-RGBW(A) floodlights with wide & narrow beam light distribution.

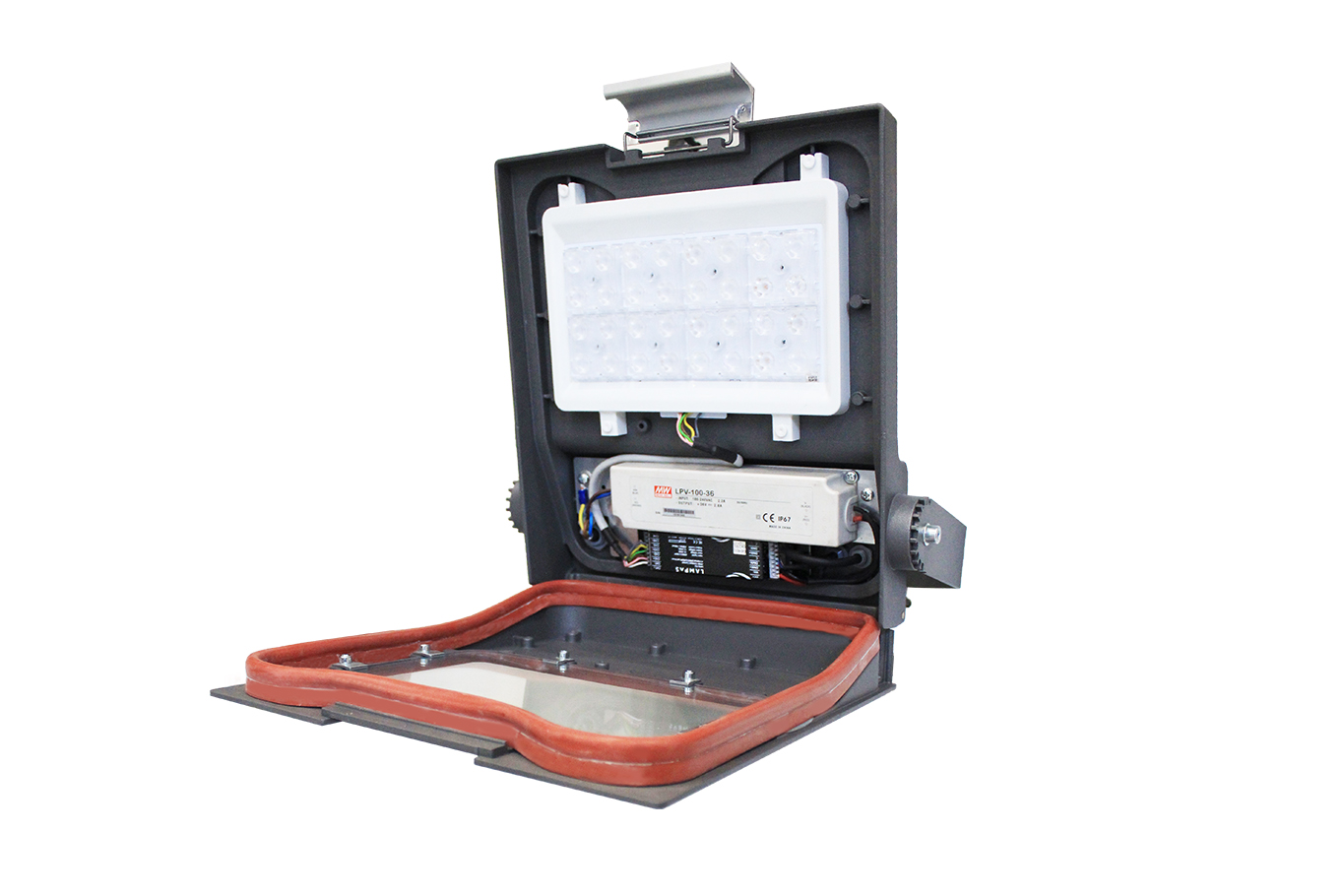

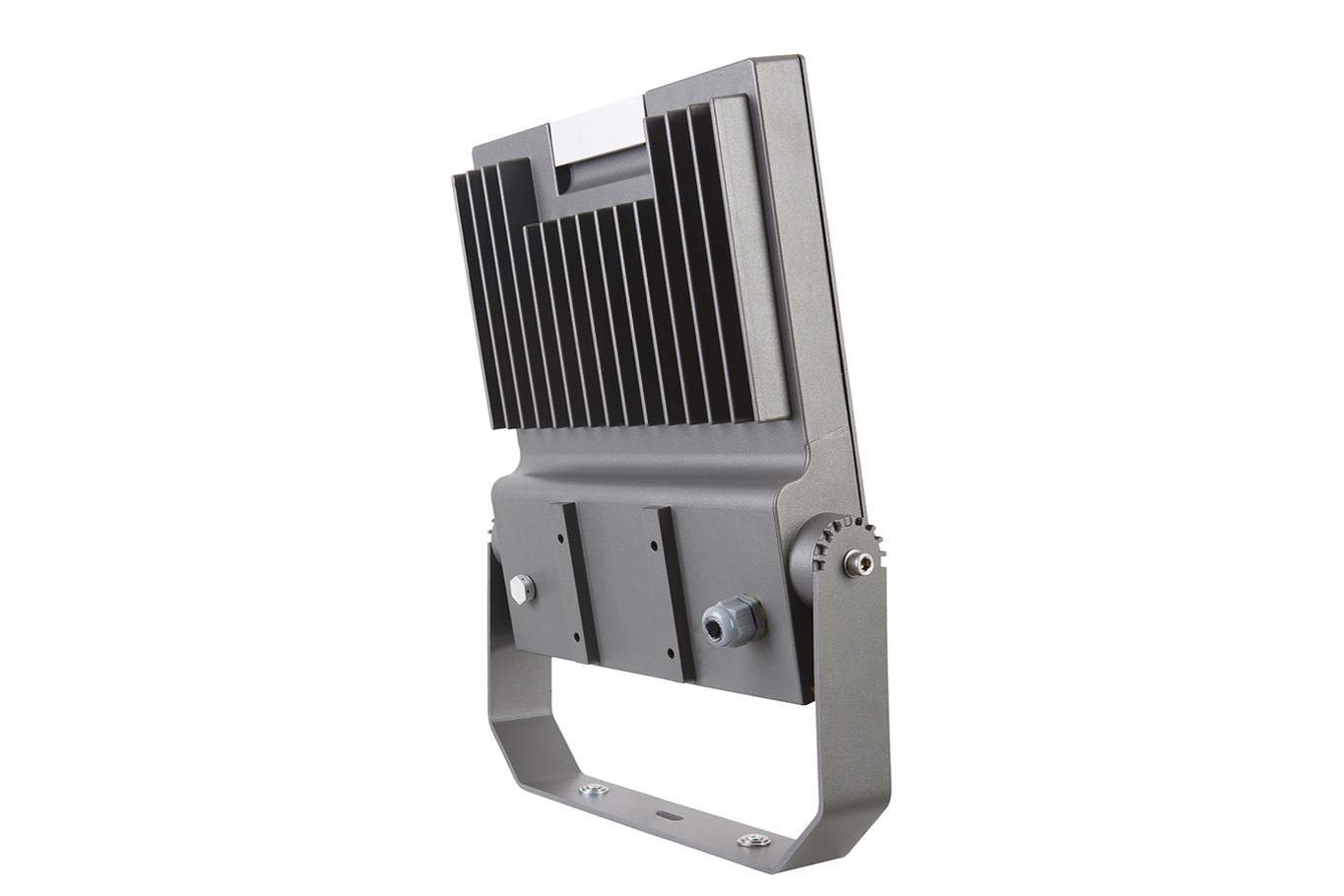

PRODUCT DESCRIPTION
Floodlight made of aluminium die cast,
Aluminium and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 180°
Mounting bracket made of steel with
Electrostatic powder coating.
Lens angle 30°-60°-90°-ASYM
Colour standard MT-X6-23
Optional RAL codes.
LED power supply unit
Input 100 – 270V AC 50 / 60 Hz
Power factor > 90% full load
RC (remote controle),
DMX 512 controllable.
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,10 m²
Weight: 7,8 kg
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.


LIGHT DISTRIBUTION
SIRUS RGB / RGBW(A)

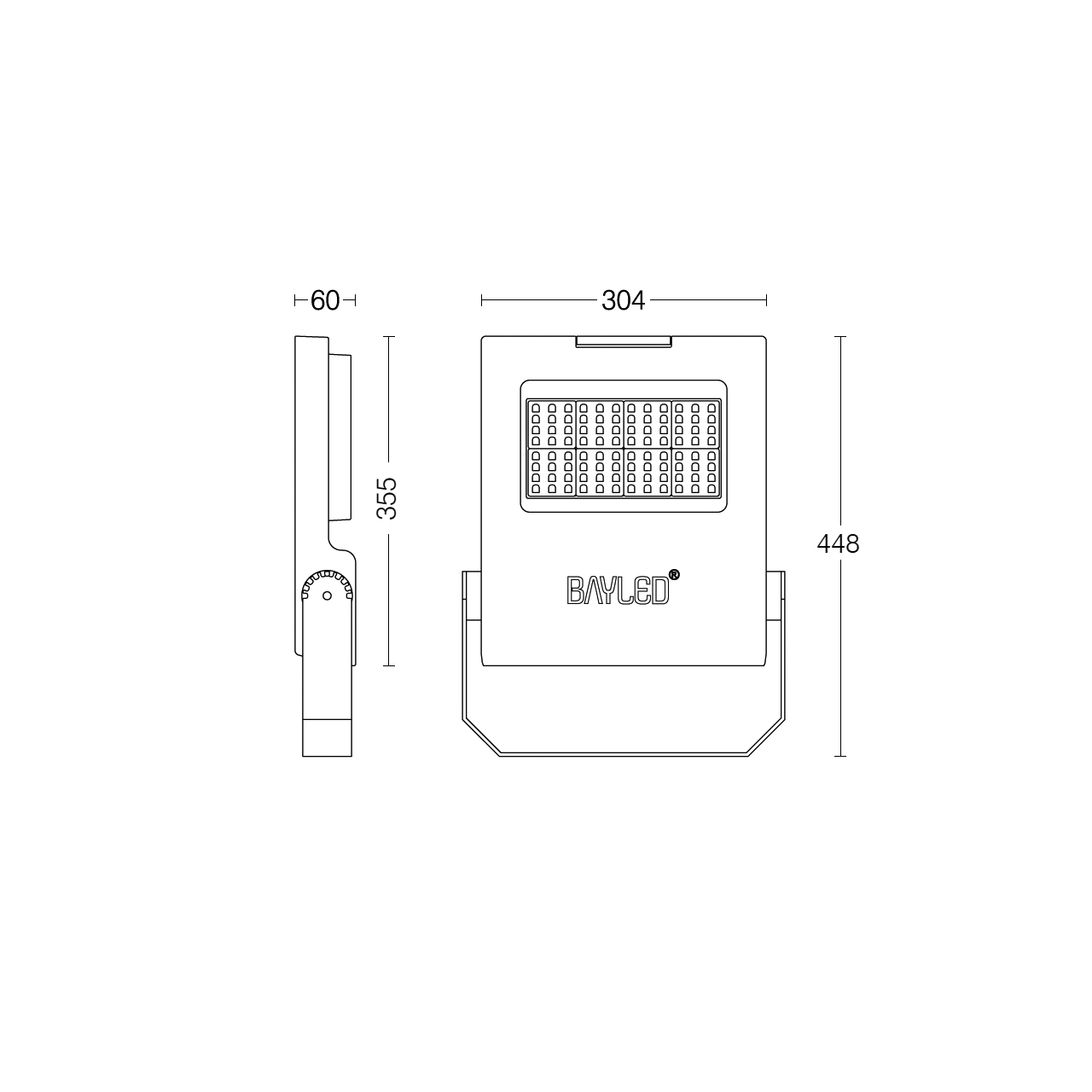

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
CONNECTION DIAGRAM(S)
TECHNICAL DRAWING (AUTOCAD FILE)
APPLICATIONS
PURCHASE ORDER TABLE
SIRUS RGB
CODE
POWER
COLOR TEMPERATURE

45-06-40-28-XX-RGB
40W
RGB

45-06-75-28-XX-RGB
75W
RGB

SIRUS RGBW(A)
CODE
POWER
COLOR TEMPERATURE

45-06-45-32-XX-RGBW
45W
RGBW(A)

45-06-85-32-XX-RGBW
85W
RGBW(A)

XX: Lens Angle

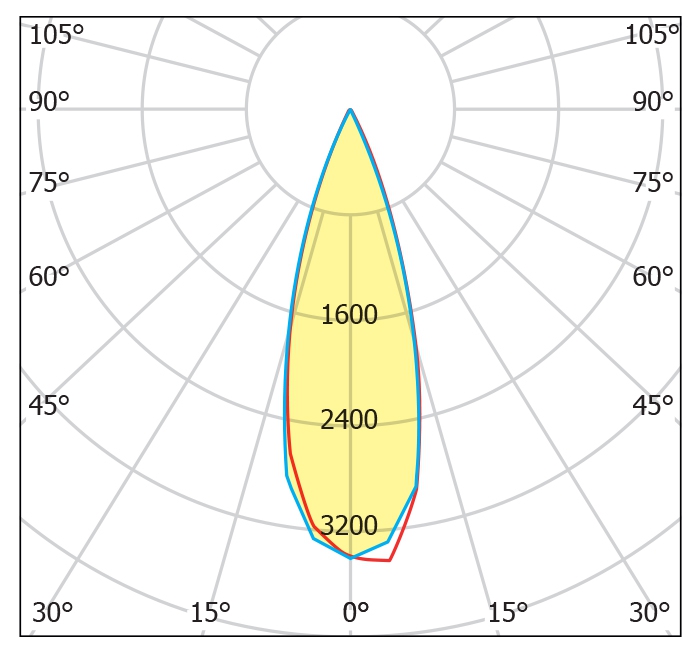

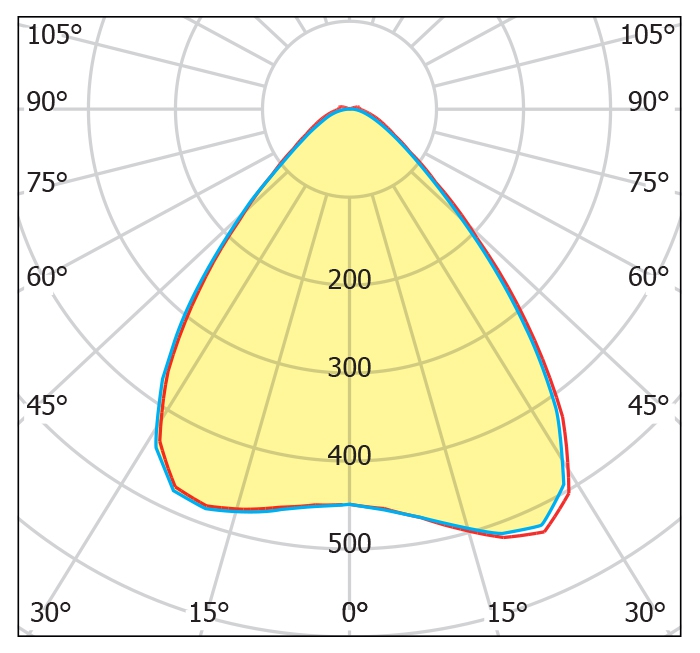

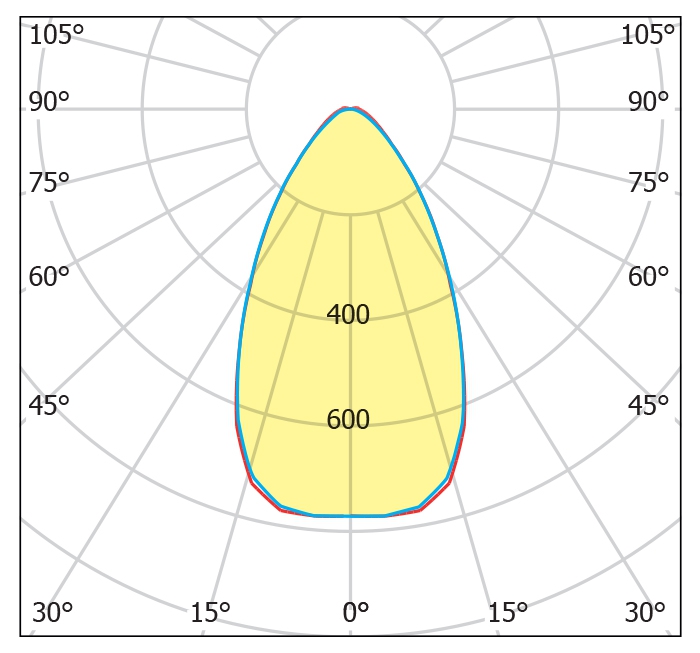

LIGHT CURVES
30°
60°
90°
ASYM
