DATA SHEETS
URBAN LIGHTING LUMINAIRES / SURGE 160 ROUND
SURGE 160 ROUND
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium extrusion & die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

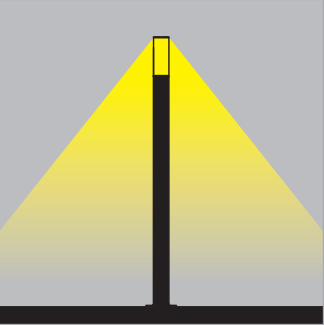

- Conformity mark.LIGHT DISTRIBUTION

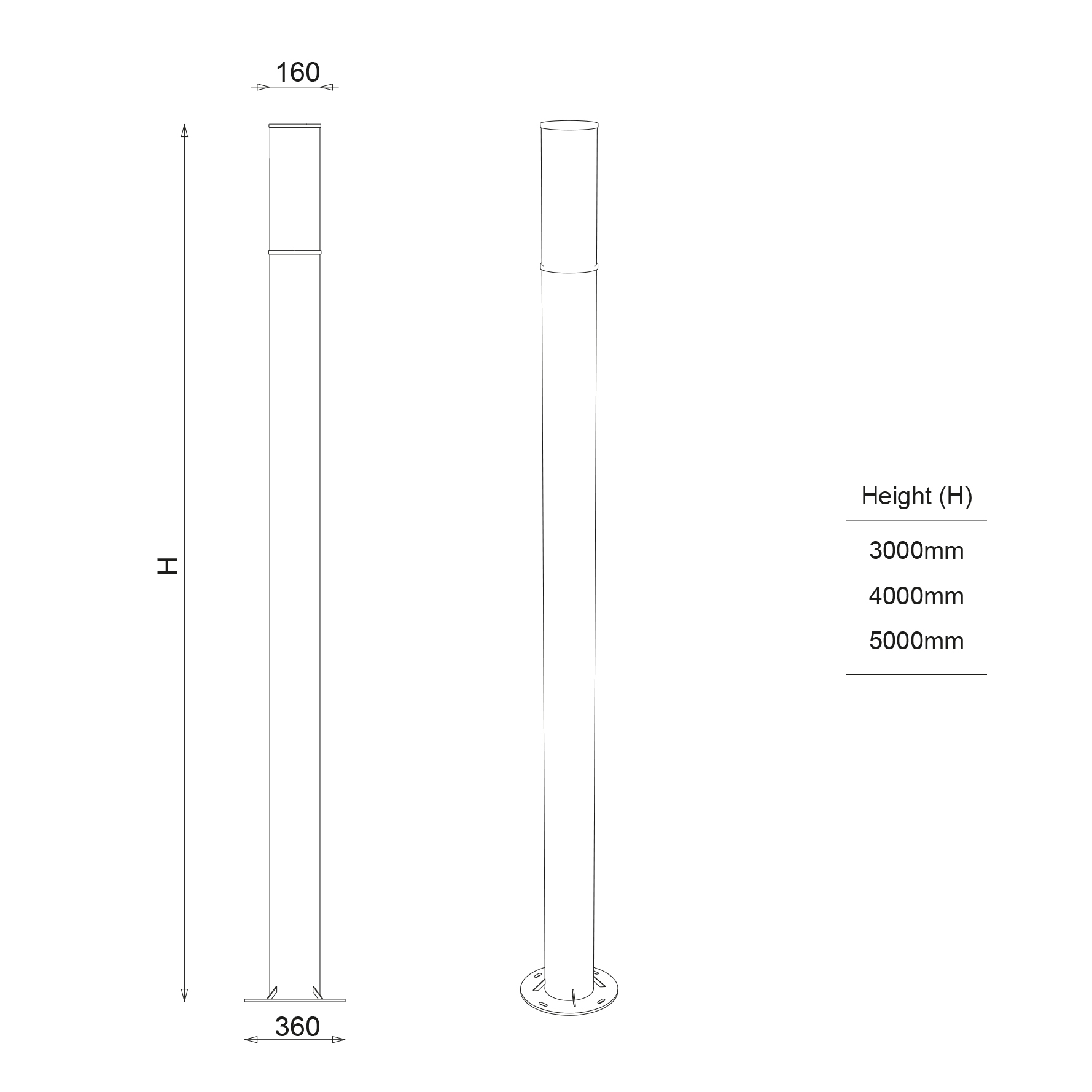

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
HEIGHT
60-76-01-30-108-03-120-X (2 MODULE)
30W
4320lm - 4470lm
3000K-4000K
3m
60-76-01-40-108-03-120-X (2 MODULE)
40W
5480lm - 5680lm
3000K-4000K
3m
60-76-01-45-162-045-120-X (3 MODULE)
45W
6390lm - 6615lm
3000K-4000K
4m
60-76-01-60-162-045-120-X (3 MODULE)
60W
8112lm - 8402lm
3000K-4000K
4m
60-76-01-60-216-055-120-X (4 MODULE)
60W
8403lm - 8705lm
3000K-4000K
5m
60-76-01-80-216-055-120-X (4 MODULE)
80W
10640lm - 11040lm
3000K-4000K
5m
X: Led Color

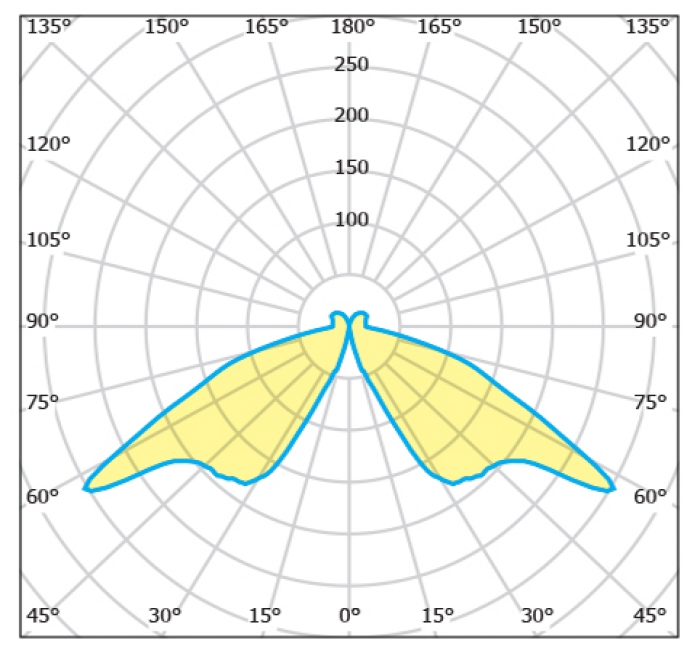

LIGHT CURVES
