SURGE LINEAR
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium extrusion & die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

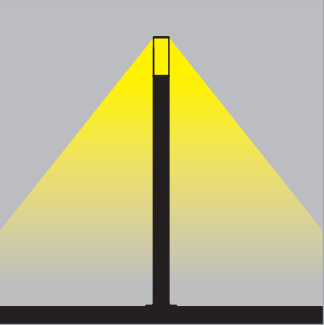

- Conformity mark.IŞIK DAĞITIMI

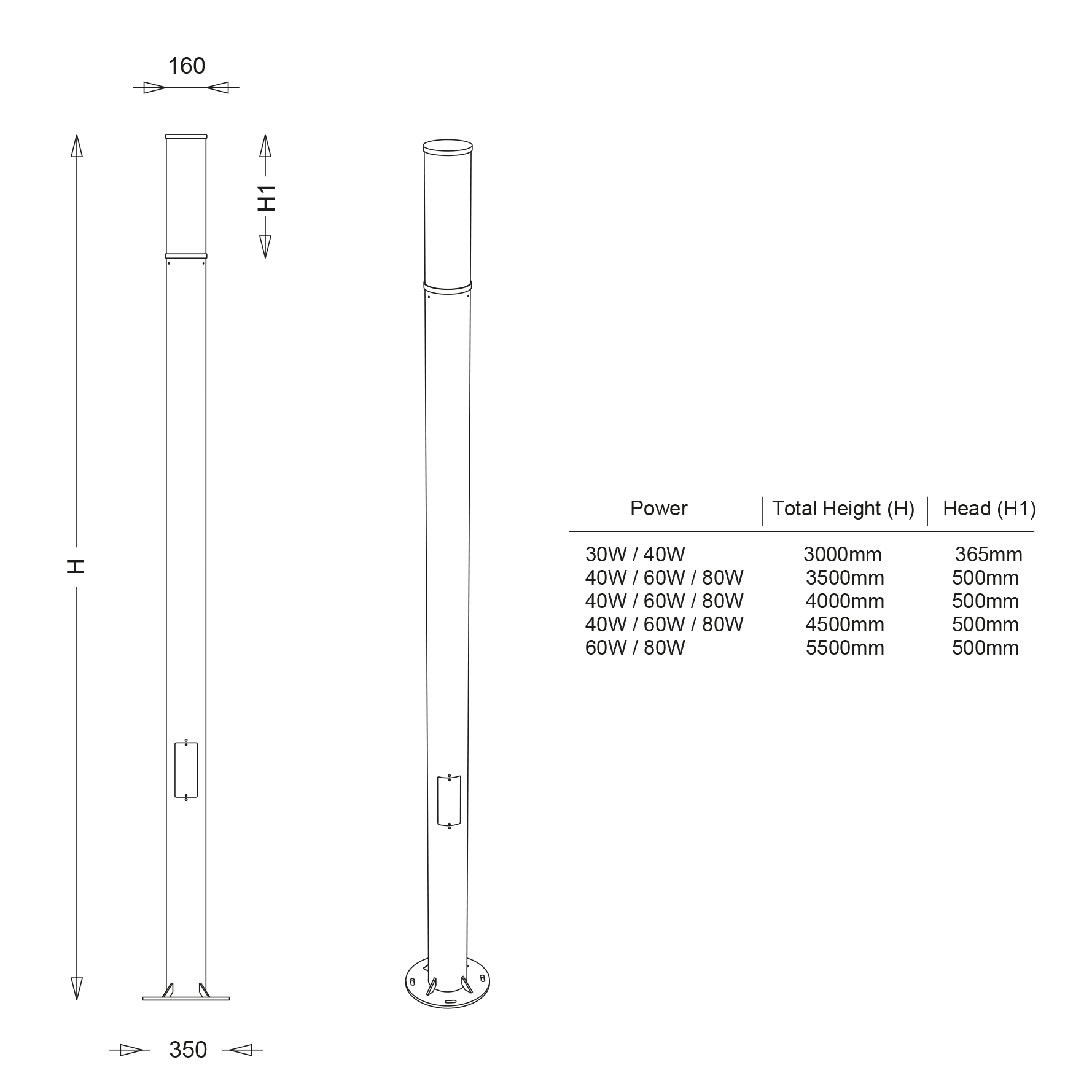

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
YÜKSEKLİK
60-74-023-30-40-03-0-X
30W
4084lm - 4384lm
3000K-4000K
3m
60-74-023-40-40-03-0-X
40W
5220lm - 5604lm
3000K-4000K
3m
60-74-023-40-80-035-0-X
40W
5521lm - 5926lm
3000K-4000K
3,5m
60-74-023-40-80-04-0-X
40W
5521lm - 5926lm
3000K-4000K
4m
60-74-023-40-80-045-0-X
40W
5521lm - 5926lm
3000K-4000K
4,5m
60-74-023-60-80-035-0-X
60W
7996lm - 8584lm
3000K-4000K
3,5m
60-74-023-60-80-04-0-X
60W
7996lm - 8584lm
3000K-4000K
4m
60-74-023-60-80-045-0-X
60W
7996lm - 8584lm
3000K-4000K
4,5m
60-74-023-60-80-055-0-X
60W
7996lm - 8584lm
3000K-4000K
5,5m
60-74-023-80-80-035-0-X
80W
10281lm - 11037lm
3000K-4000K
3,5m
60-74-023-80-80-04-0-X
80W
10281lm - 11037lm
3000K-4000K
4m
60-74-023-80-80-045-0-X
80W
10281lm - 11037lm
3000K-4000K
4,5m
60-74-023-80-80-055-0-X
80W
10281lm - 11037lm
3000K-4000K
5,5m
X: Led Rengi

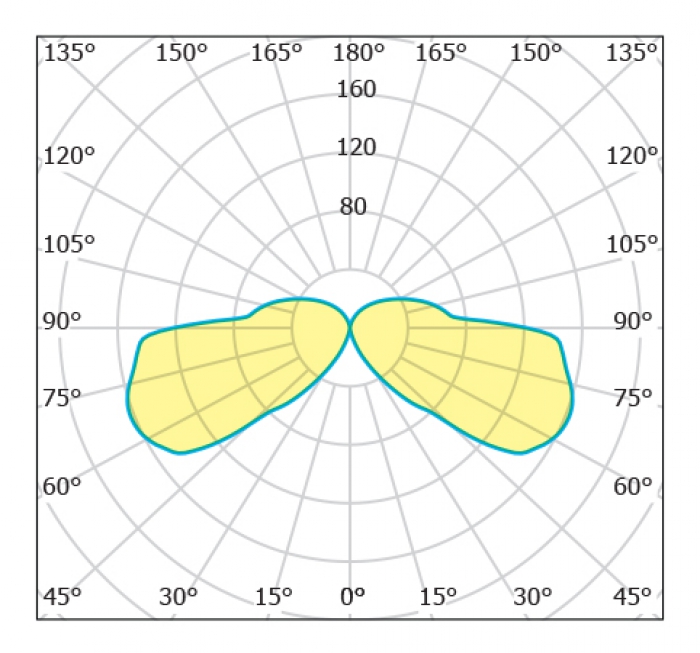

IŞIK EĞRİLERİ
