TETRA HIGH BAY HBL-1 TETRA HIGH BAY HBL-1

APPLICATION
LED high-performance High-Bays with wide & narrow beam light distribution.

PRODUCT DESCRIPTION

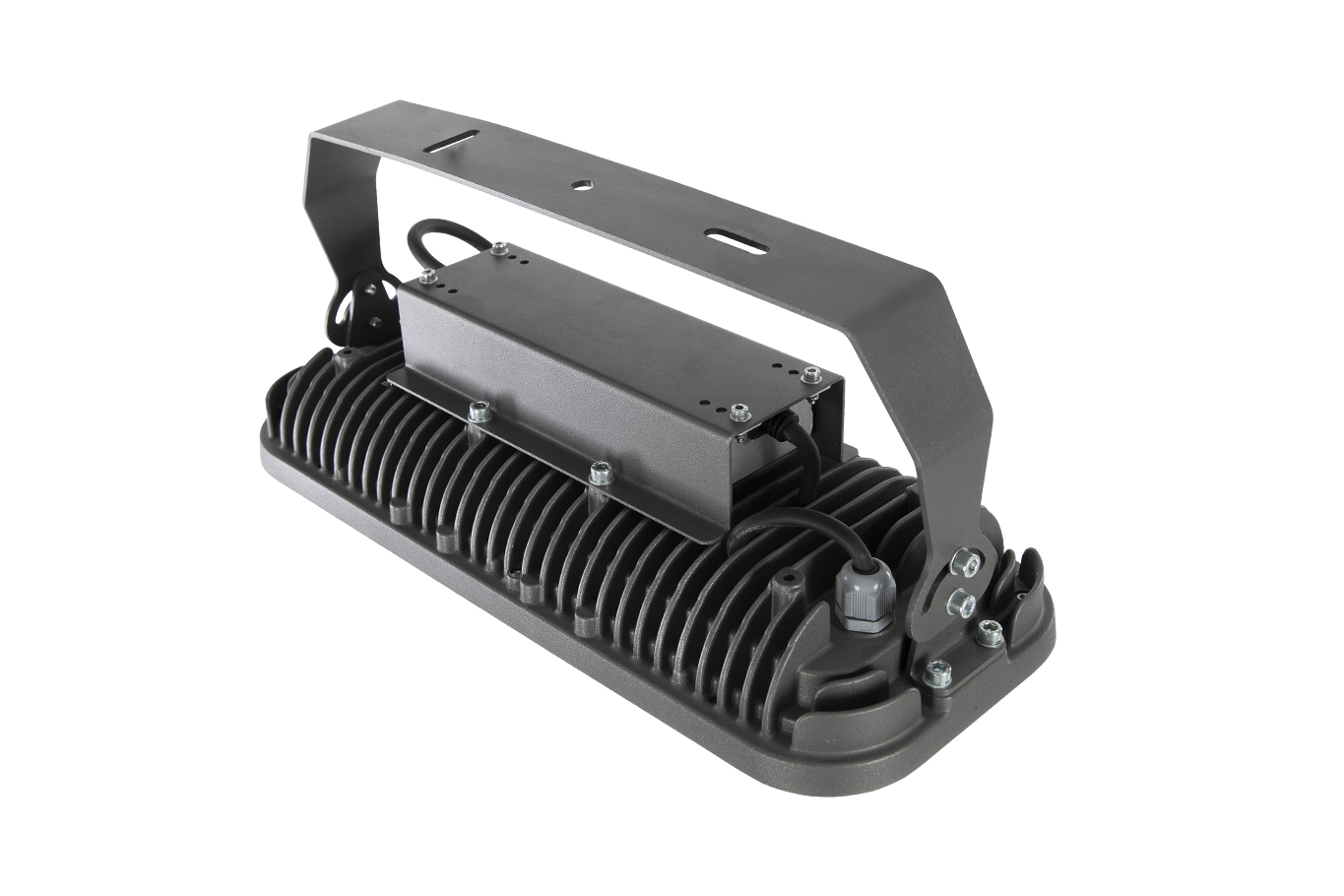

High-Bays made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket

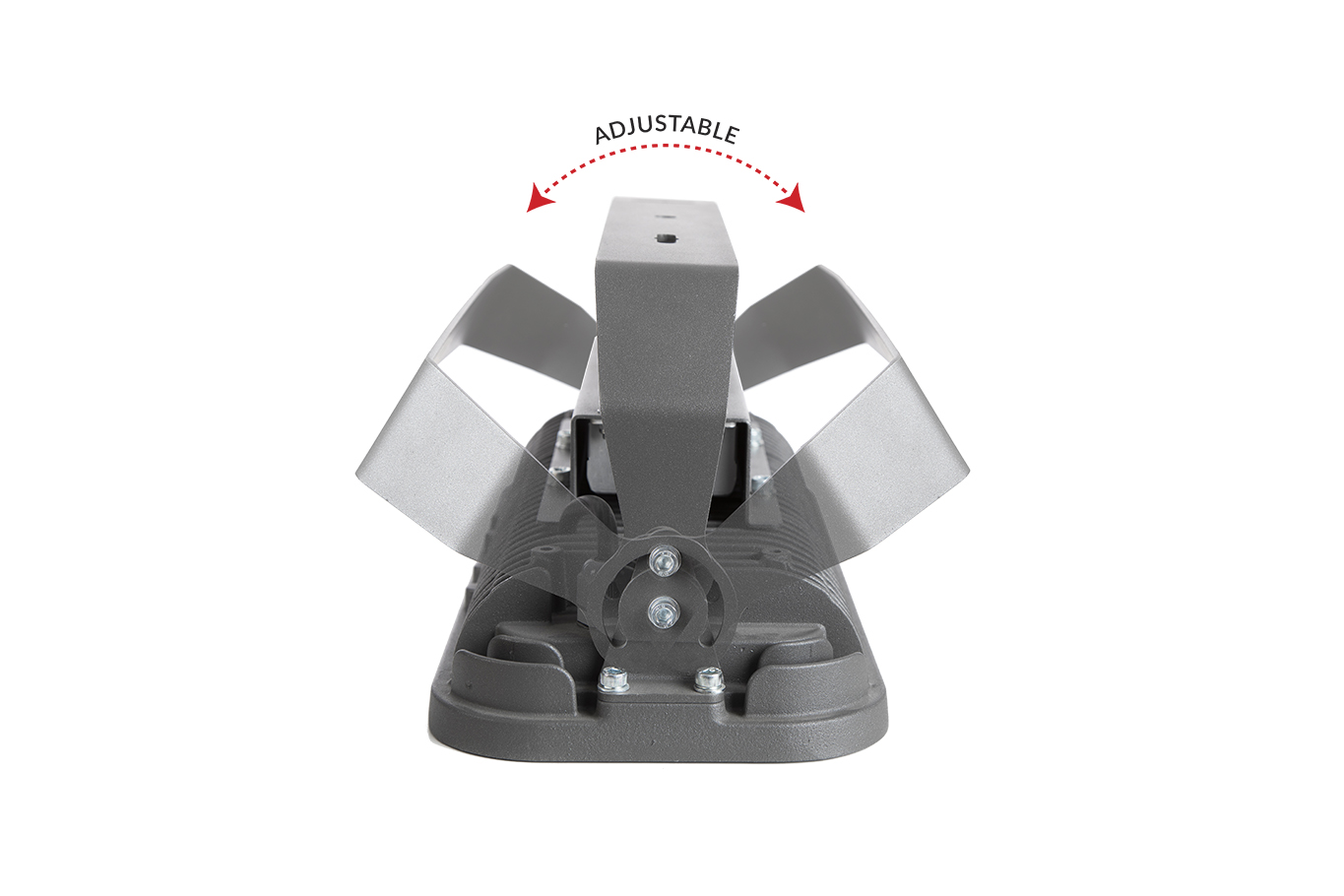

Mounting bracket made of steel with
Electrostatic powder coating.
Lens angle 8°-15°-22°-30°-40°-60°-90°
Colour standard MT-X6-23
OptionalRAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,08 m²
Weight: 5,8 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

РАСПРЕДЕЛЕНИЕ СВЕТА
TETRA HIGH BAY HBL-1

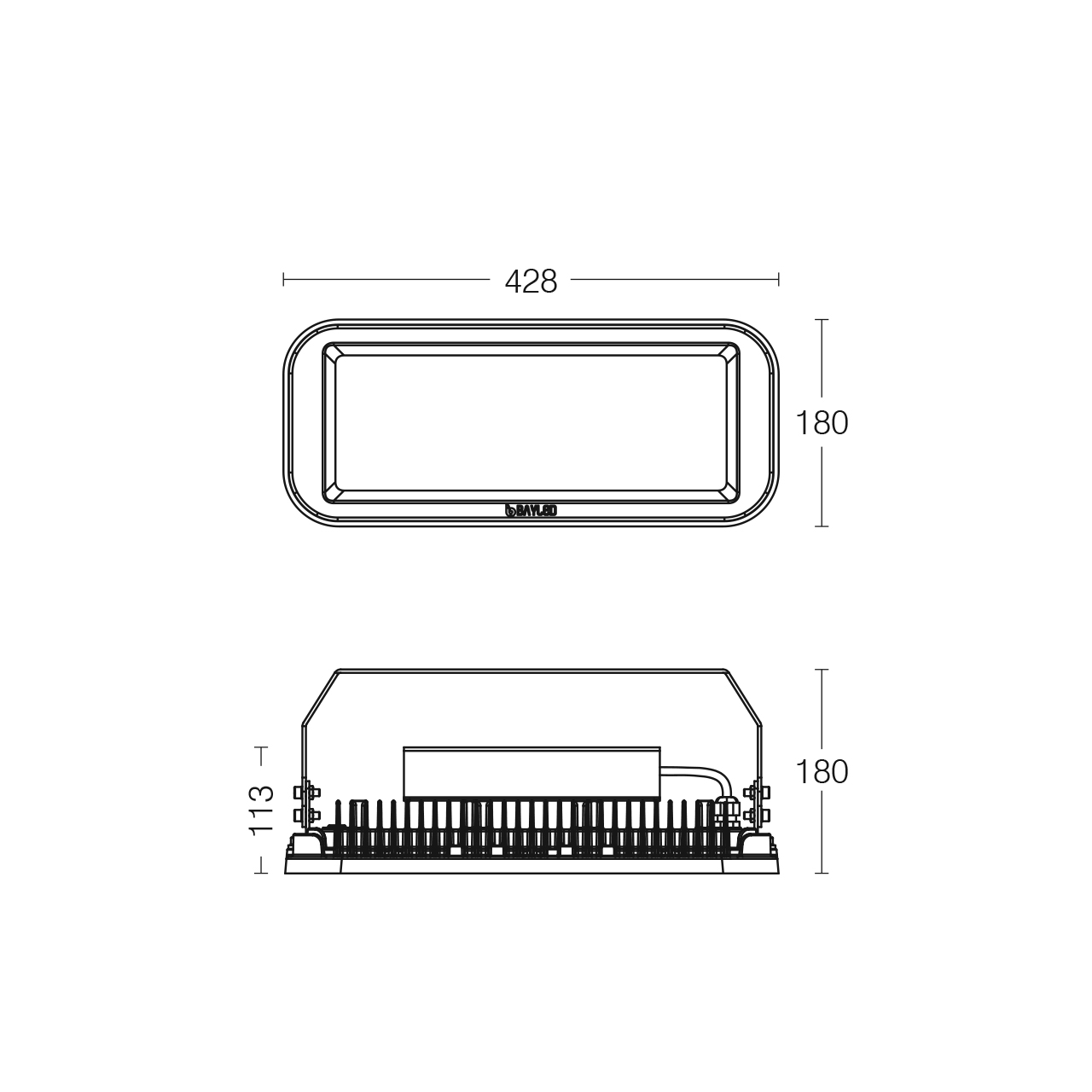

ТЕХНИЧЕСКИЙ РИСУНОК
СКИДКИ
ТЕХНИЧЕСКИЕ ДАННЫЕ
СТРАНИЦЫ КАТАЛОГА
LDT-ФАЙЛЫ
ТЕХНИЧЕСКИЙ ЧЕРТЕЖ (ФАЙЛ AUTOCAD)
ПРИЛОЖЕНИЯ
ПРИЛОЖЕНИЯ
128 LED - MID POWER LED / STANDART LUMEN OUTPUT (Beam angle options: 15°-40°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-03-50-128-XX-X
50W
7608lm - 8006lm
3000K-4000K

80-03-90-128-XX-X
90W
12409lm - 13058lm
3000K-4000K

80-03-120-128-XX-X
120W
15621lm - 16438lm
3000K-4000K

192 LED - MID POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-03-50-192-XX-X
50W
8276lm - 8514lm
3000K-4000K

80-03-75-192-XX-X
75W
11839m - 12179lm
3000K-4000K

80-03-100-192-XX-X
100W
15329lm - 15769lm
3000K-4000K

288 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT (Beam angle options: 22°-30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-03-75-288-XX-X
75W
12414lm - 12771lm
3000K-4000K

80-03-100-288-XX-X
100W
16072lm - 16553m
3000K-4000K

80-03-125-288-XX-X
125W
19451lm - 20009lm
3000K-4000K

48 LED - HIGH POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 8°-15°-25°-40°-60°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-03-135-48-XX-X
135W
18519lm
6500K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

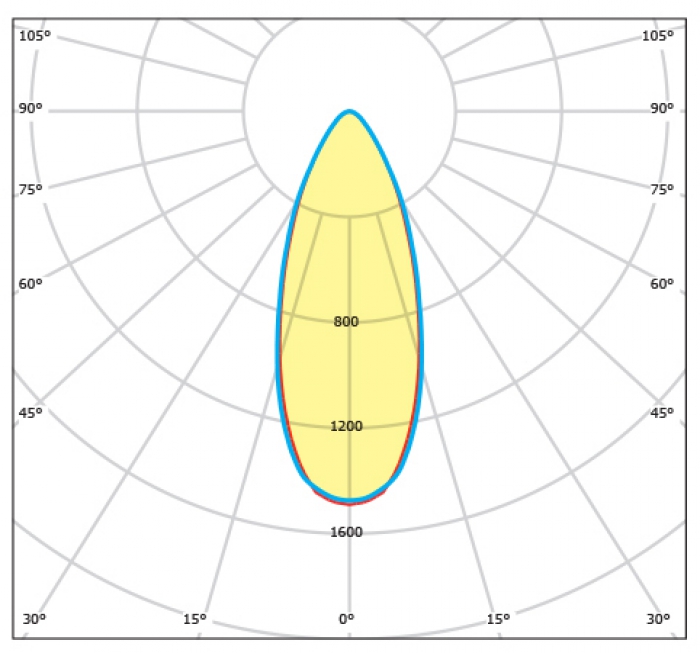

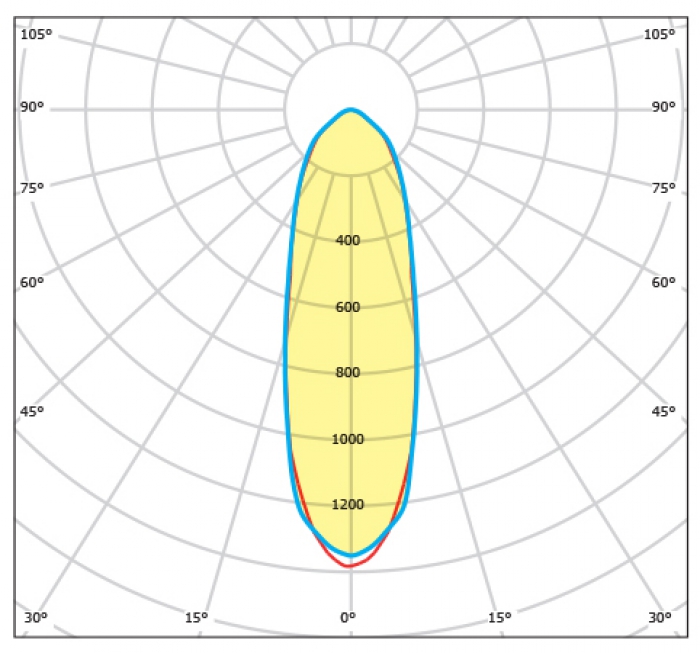

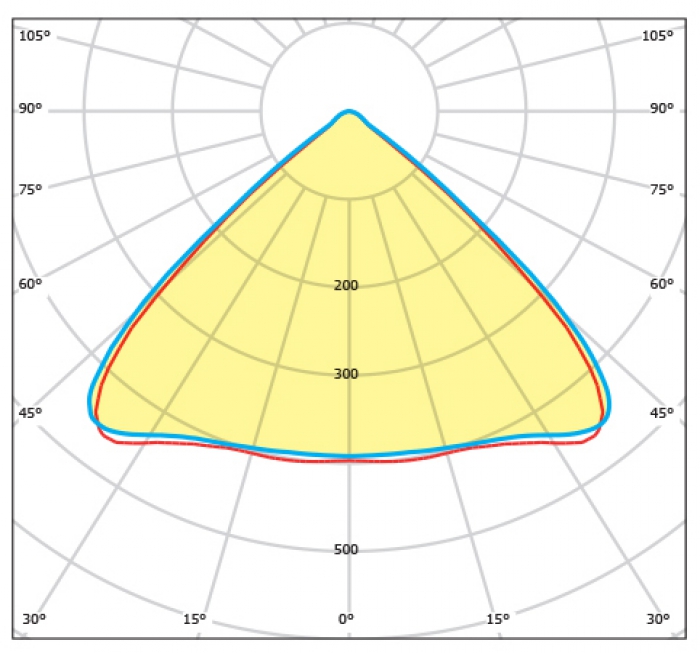

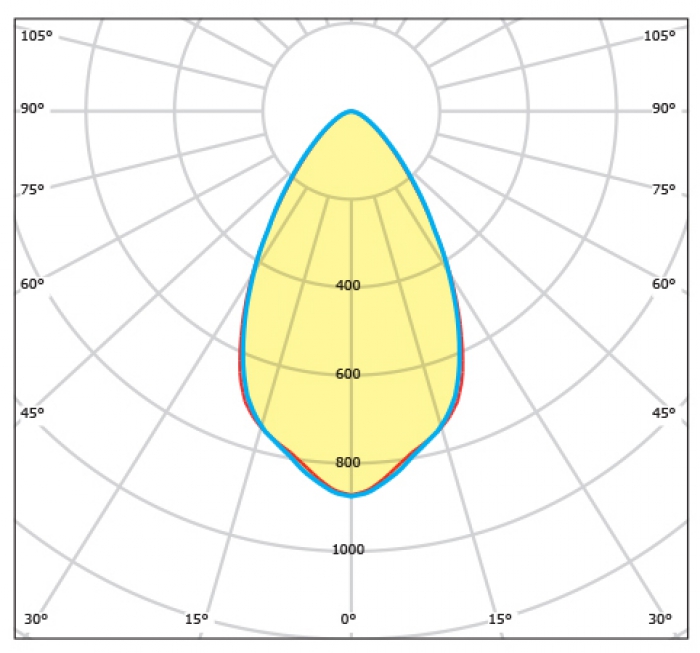

КРИВЫЕ ОСВЕЩЕНИЯ
30°
40°
60°
90°
