HIGH / LOW BAY LUMINAIRES / TETRA HIGH BAY HBV-3

TETRA HIGH BAY HBV-3 TETRA HIGH BAY HBV-3

APPLICATION
LED high-performance High-Bays with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
High-Bays made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel with
Electrostatic powder coating.
Lens angle 8°-15°-22°-30°-40°-60°-90°
Colour standard MT-X6-23
OptionalRAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,24 m²
Weight: 19 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.
LIGHT DISTRIBUTION

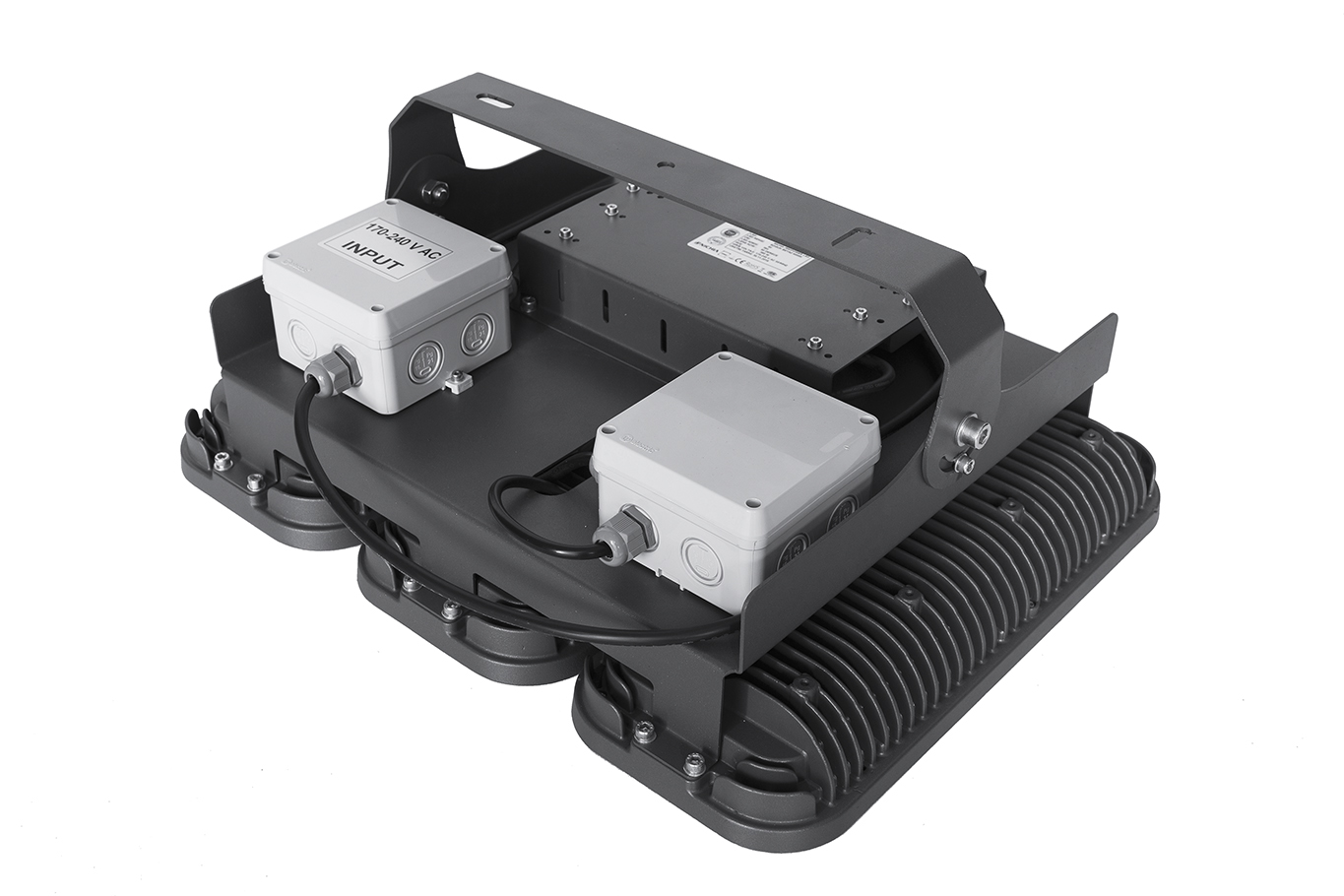

TETRA HIGH BAY HBV-3
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
384 LED - MID POWER LED / STANDART LUMEN OUTPUT (Beam angle options: 15°-40°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-07-270-384-XX-X
270W
37227lm - 39174lm
3000K-4000K

80-07-360-384-XX-X
360W
46863lm - 49314lm
3000K-4000K

576 LED - MID POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-07-225-576-XX-X
225W
35517m - 36537lm
3000K-4000K

80-07-300-576-XX-X
300W
45987lm - 47307lm
3000K-4000K

864 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT  (Beam angle options: 22°-30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-07-225-864-XX-X
225W
37242lm - 38313lm
3000K-4000K

80-07-300-864-XX-X
300W
48216lm - 49659lm
3000K-4000K

80-07-375-864-XX-X
375W
58353lm - 60027lm
3000K-4000K

144 LED - HIGH POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 8°-15°-25°-40°-60°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-07-405-144-XX-X
405W
55557lm
6500K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

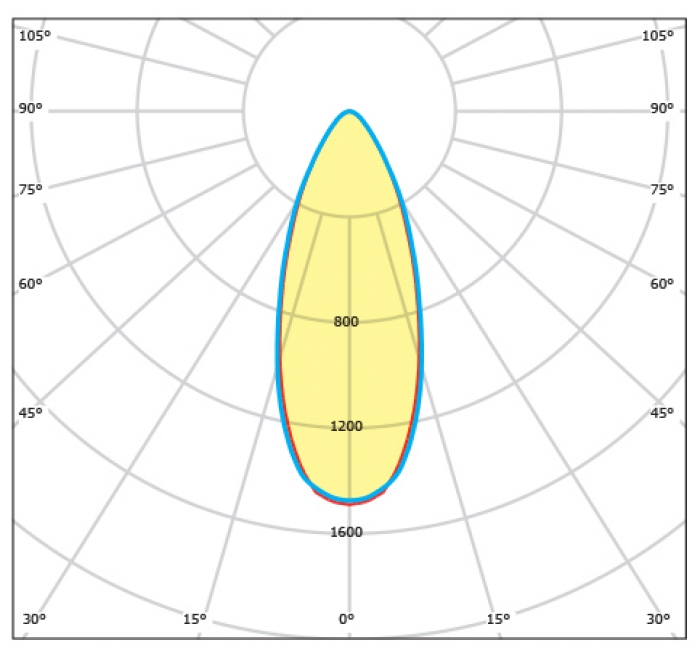

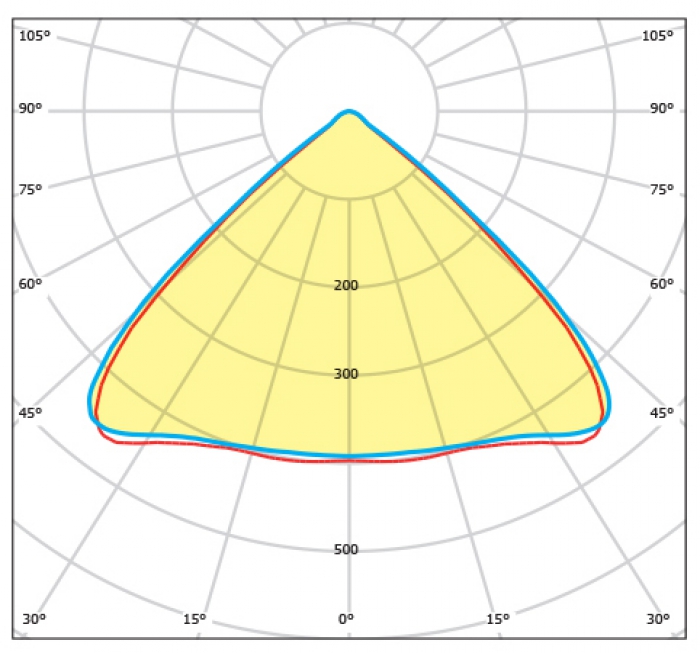

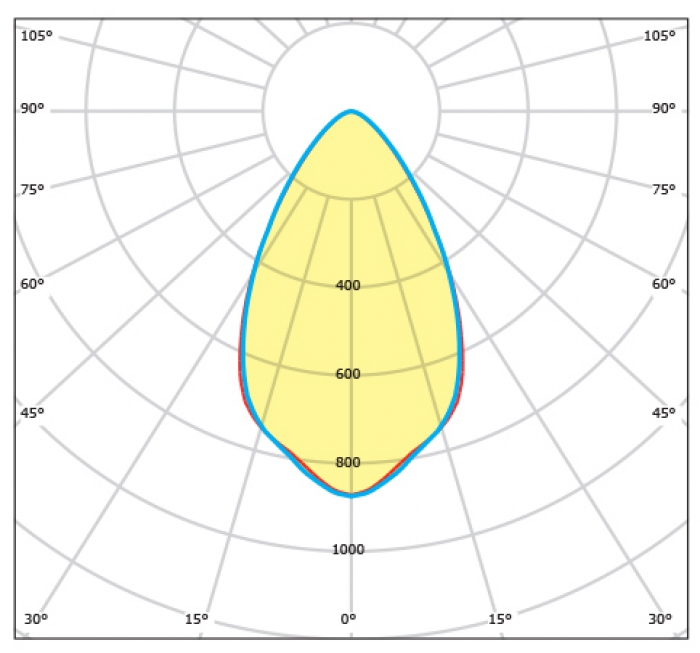

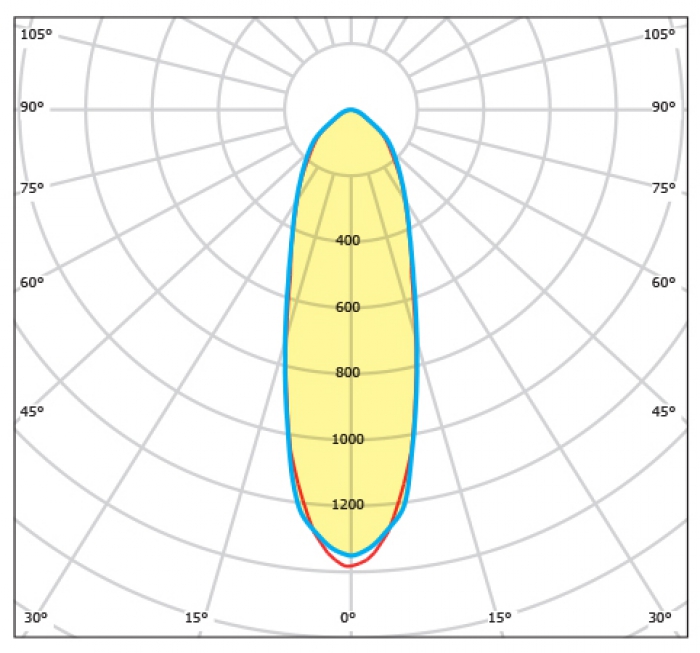

LIGHT CURVES
