HIGH / LOW BAY LUMINAIRES / TETRA HIGH BAY HBV-4

TETRA HIGH BAY HBV-4 TETRA HIGH BAY HBV-4

APPLICATION

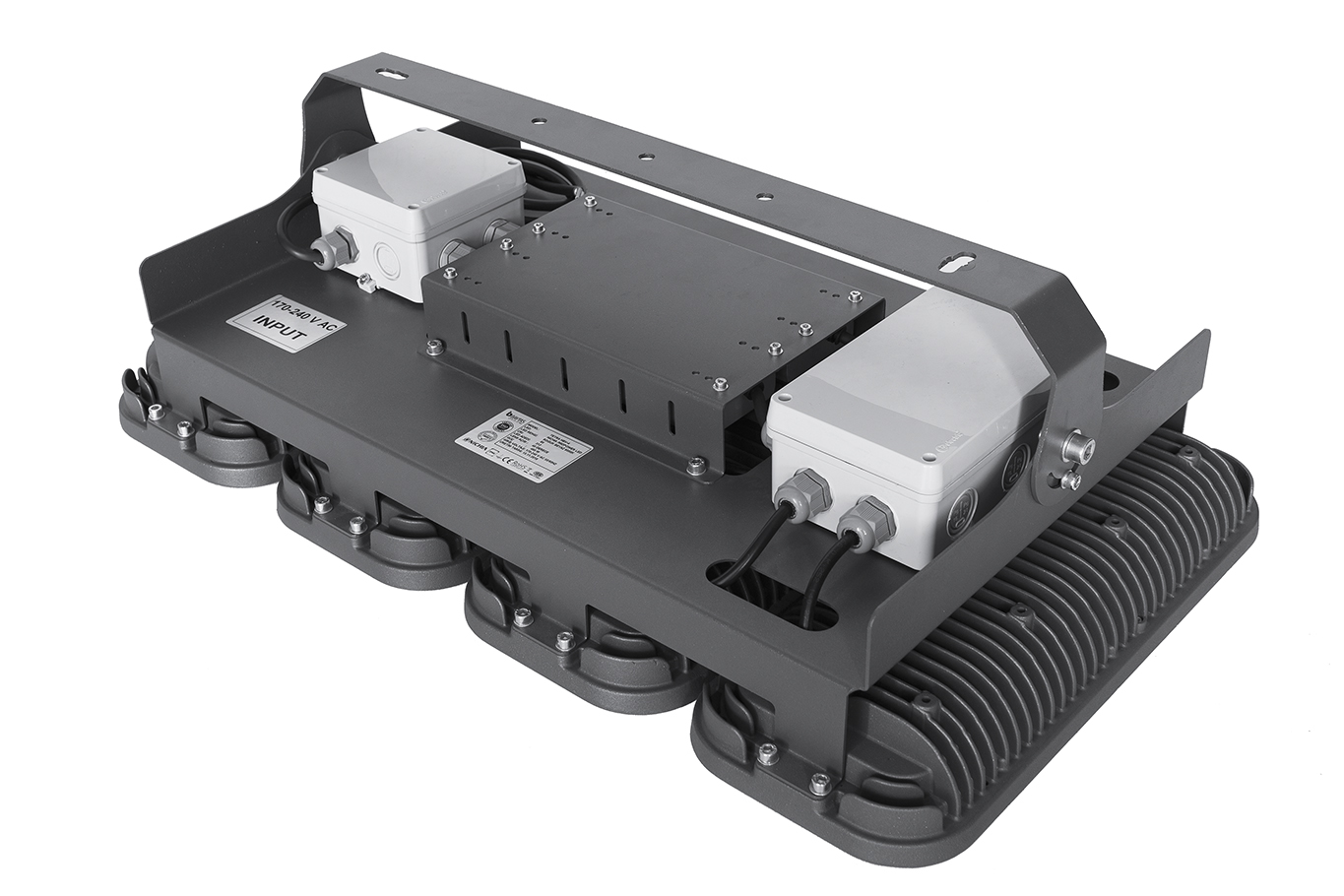

LED high-performance High-Bays with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
High-Bays made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel with
Electrostatic powder coating.
Lens angle 8°-15°-22°-30°-40°-60°-90°
Colour standard MT-X6-23
OptionalRAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,32 m²
Weight: 25 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

LIGHT DISTRIBUTION
TETRA HIGH BAY HBV-4
TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
512 LED - MID POWER LED / STANDART LUMEN OUTPUT (Beam angle options: 15°-40°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-08-360-512-XX-X
360W
49636lm - 52232lm
3000K-4000K

80-08-460-512-XX-X
460W
62362lm - 65623lm
3000K-4000K

768 LED - MID POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-08-300-768-XX-X
300W
51284lm - 52760lm
3000K-4000K

80-08-400-768-XX-X
400W
63340lm - 65156lm
3000K-4000K

1152 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT (Beam angle options: 22°-30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-08-300-1152-XX-X
300W
49656lm - 51084lm
3000K-4000K

80-08-400-1152-XX-X
400W
64288lm - 66212lm
3000K-4000K

80-08-500-1152-XX-X
500W
77804lm - 80036lm
3000K-4000K

192 LED - HIGH POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 8°-15°-25°-40°-60°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-08-540-192-XX-X
540W
74076lm
6500K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

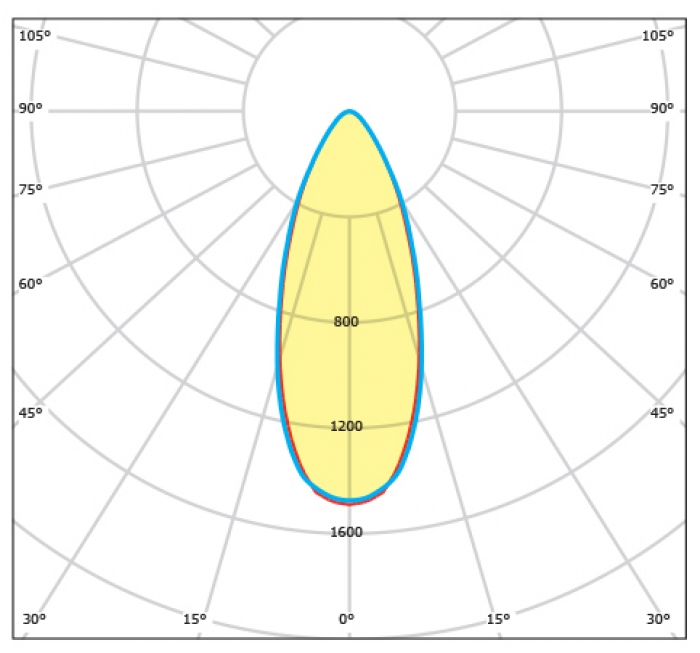

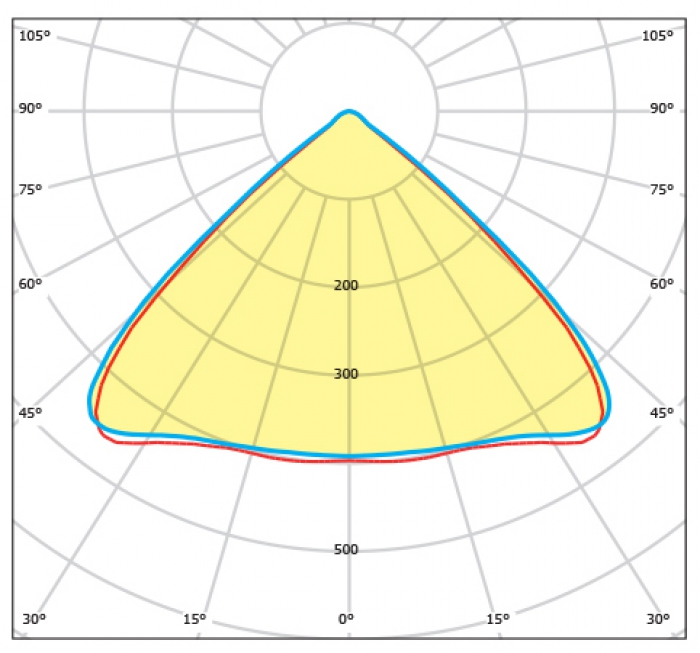

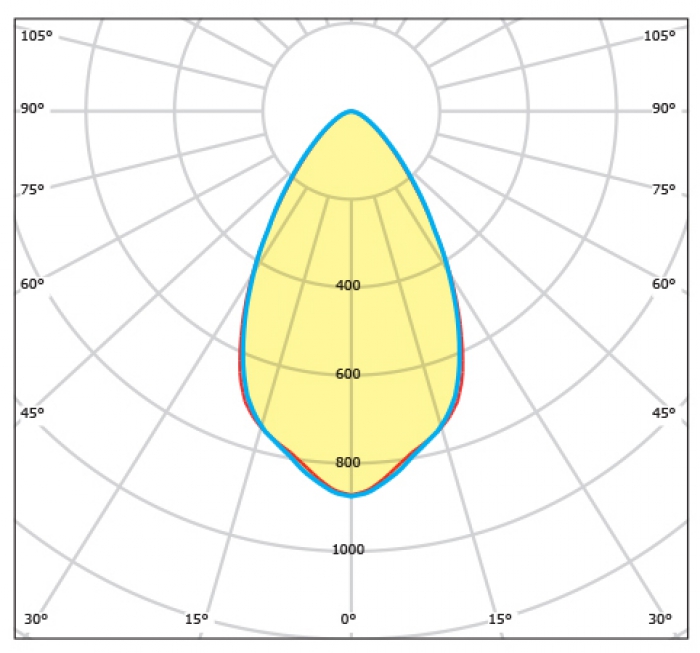

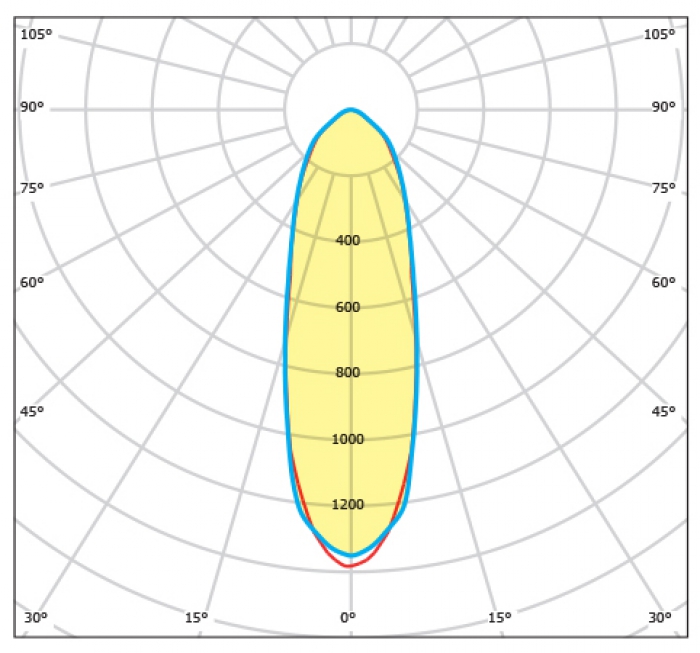

LIGHT CURVES
30°
40°
60°
90°
