DATA SHEETS
FLOODLIGHTS / TETRA PRL-3 RGB
TETRA PRL-3 RGB
Product Description
| Housing material | Aluminium die-cast |
| Lens material | PMMA |
| Light distribution | 8°- 15°- 30°- 60°- 90° |
| Input Voltage | 85-264 V AC |
| Power factor (min.) | 0.92 |
| DMX | DMX512 |
| Protection class | IP66 |
| Impact protection | IK09 |
| Net weight | 23,3 kg |
| Certificate | EN 60598, CE |

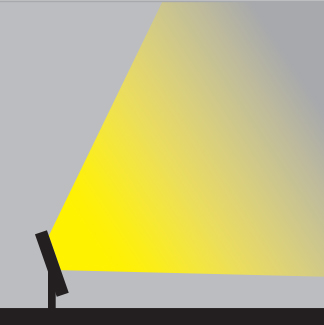

LIGHT DISTRIBUTION

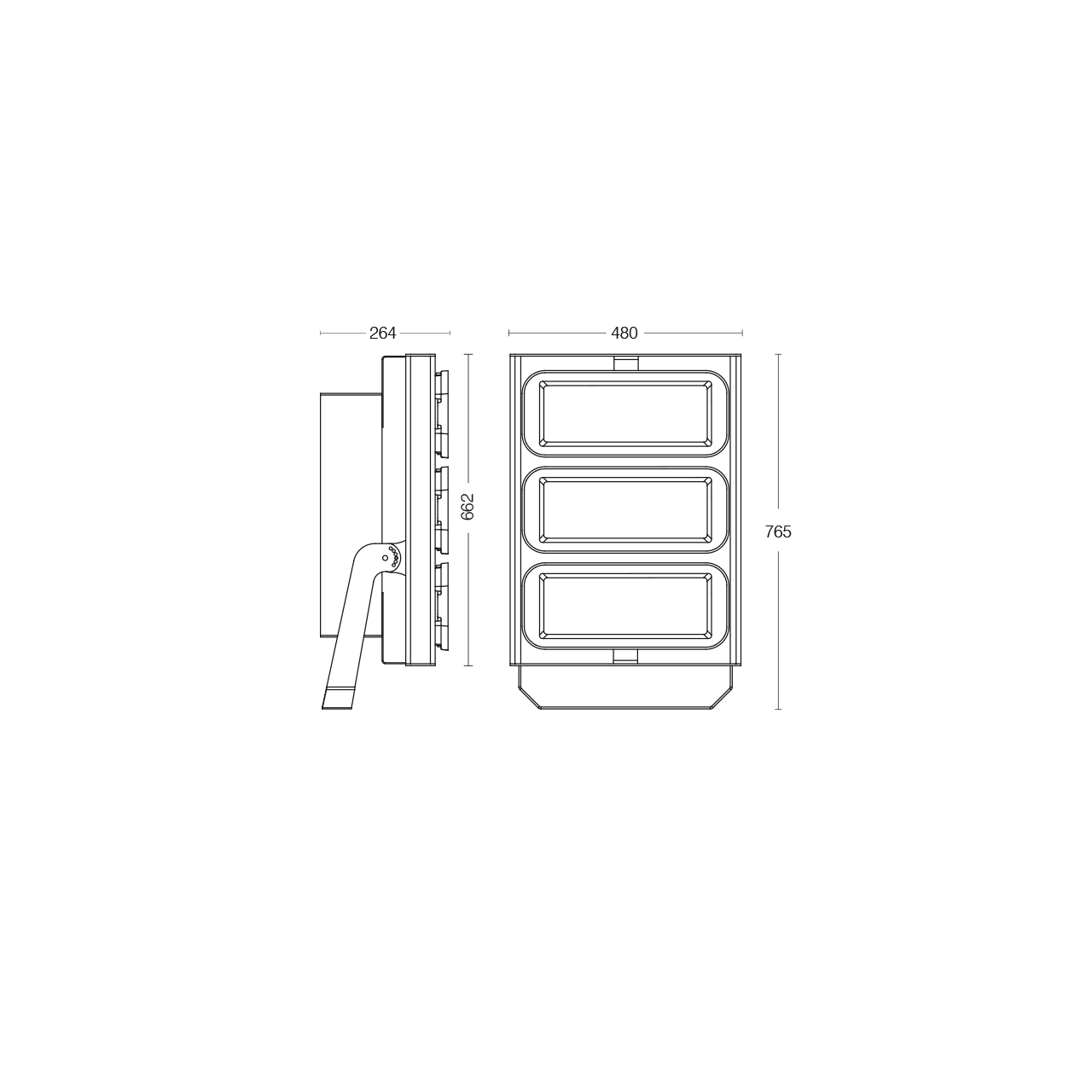

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
COLOR TEMPERATURE
45-19-155-144-XX-RGB
155W
RGB
45-19-255-144-XX-RGB
255W
RGB
XX: Lens Angle

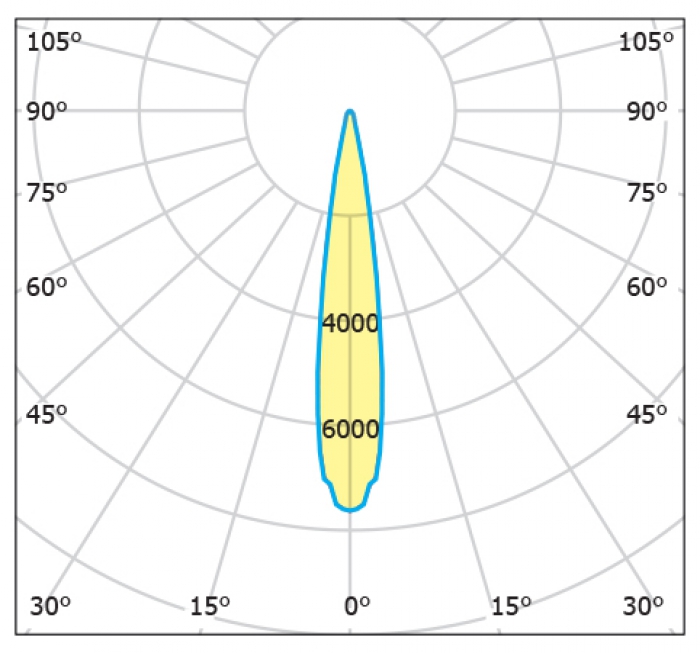

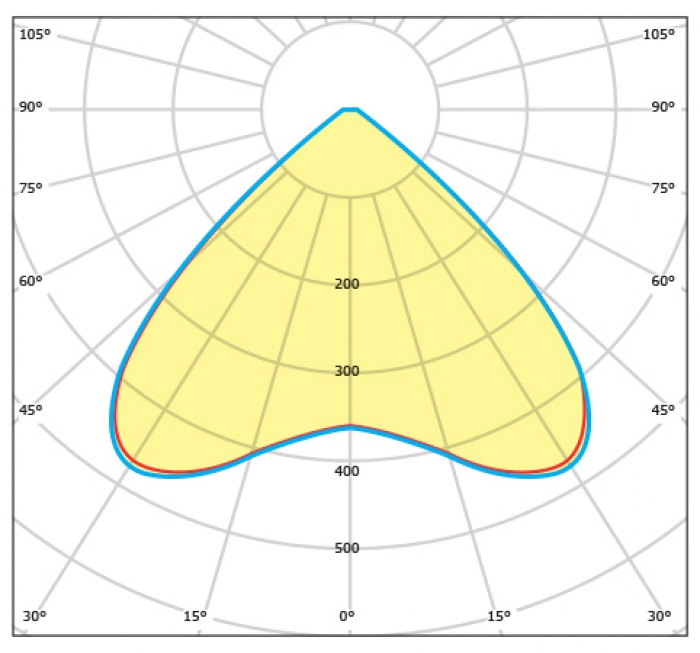

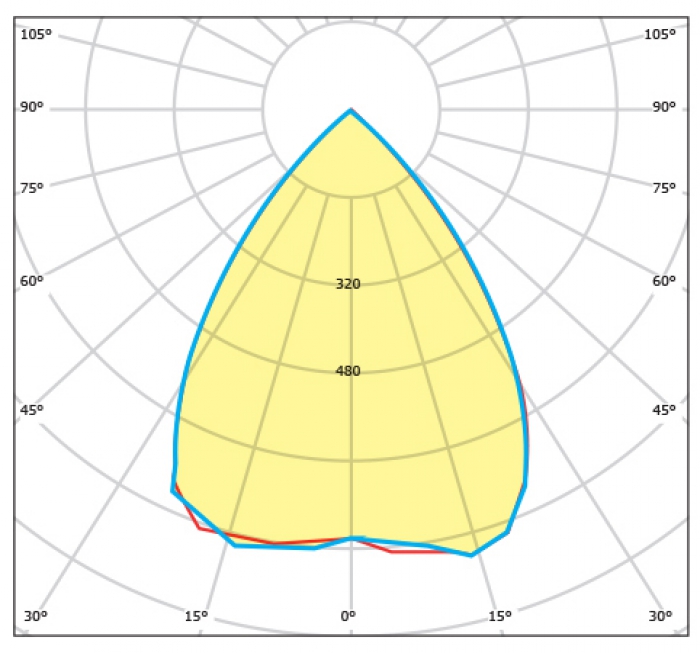

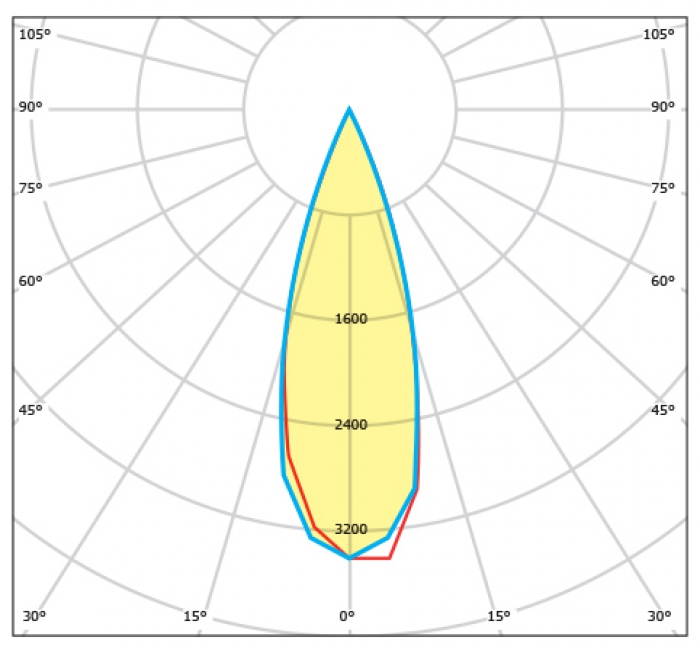

LIGHT CURVES
8°
15°
30°
60°
90°
