FLOODLIGHTS / TETRA PRV-4 RGB
TETRA PRV-4 RGB
APPLICATION
LED high-performance floodlights with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Floodlight made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 100°
Mounting bracket made of steel with
Electrostatic powder coating
Lens angle Lens angle 8°-15°-30°-60°-90°
Colour standard MT-X-6-23
optional RAL codes.
LED power supplyunit
Input110 –270V AC 50 / 60 Hz
Power factor > 90% full load
RGB PWM signal with RC (optional)
DMX 512 (standart)
Mono colour (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,32 m²
Weight: 29 kg
Complies with European standards
EN 60598 and CE certificate.

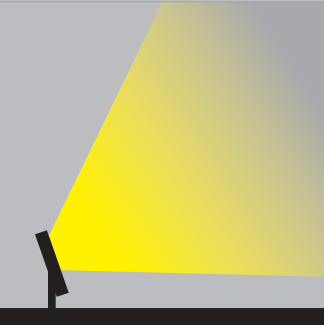

- Conformity mark.LIGHT DISTRIBUTION

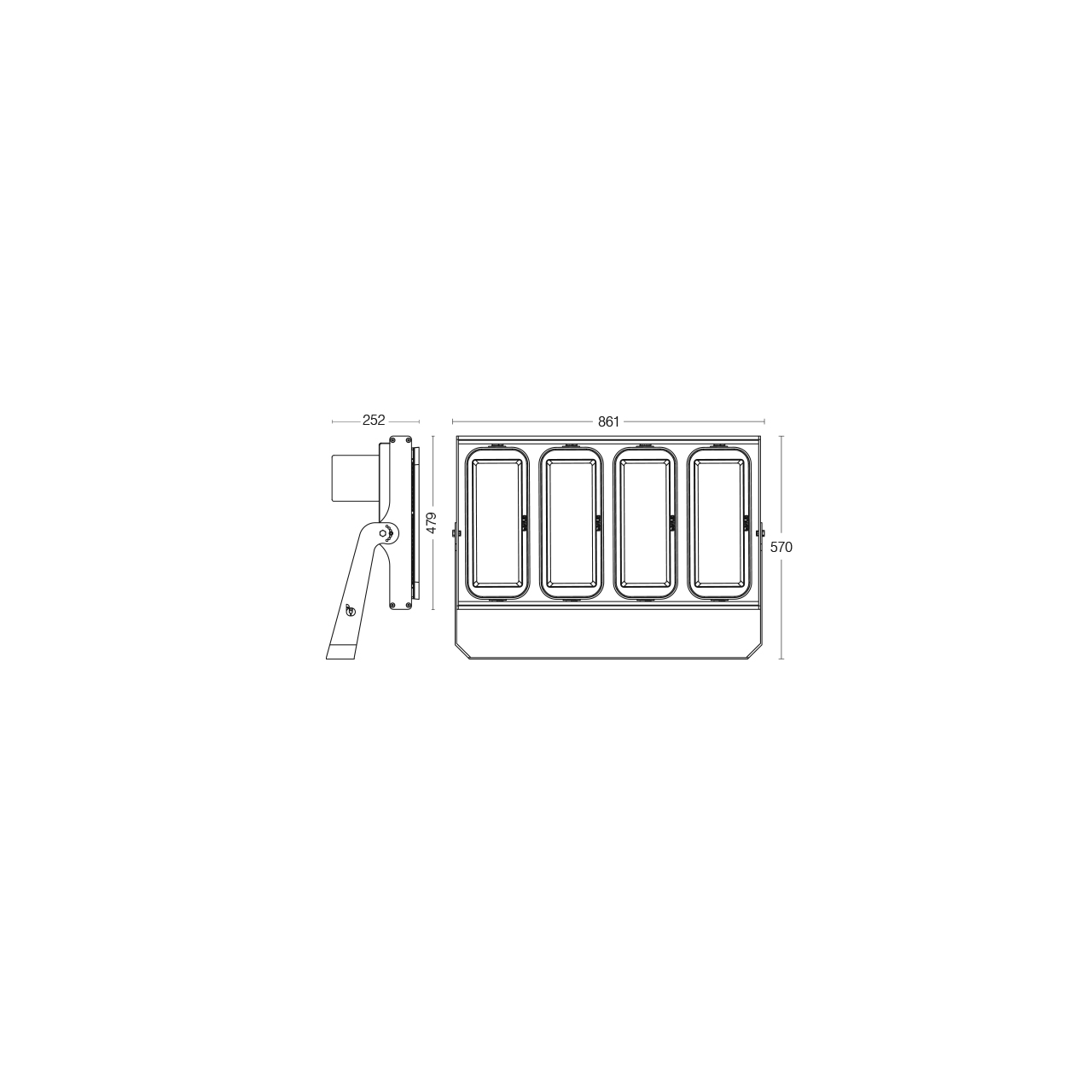

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
COLOR TEMPERATURE
45-23-220-192-XX-RGB
220W
RGB
45-23-340-192-XX-RGB
340W
RGB
XX: Lens Angle

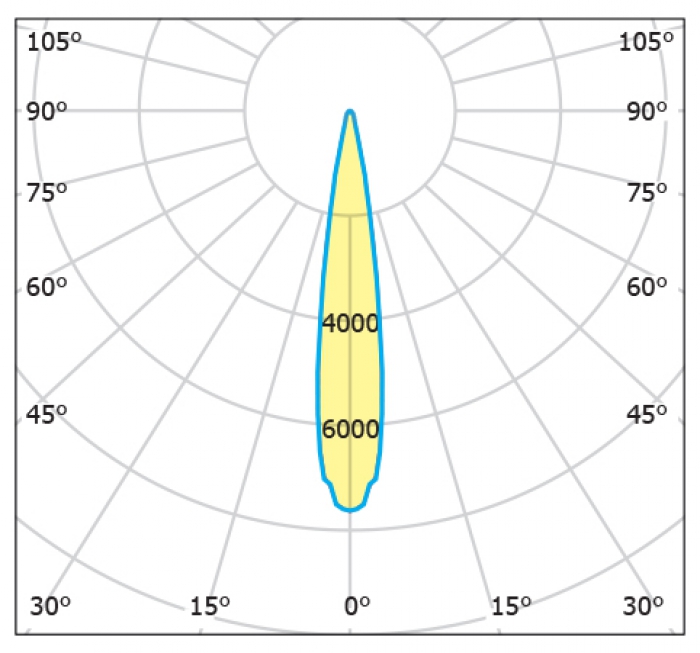

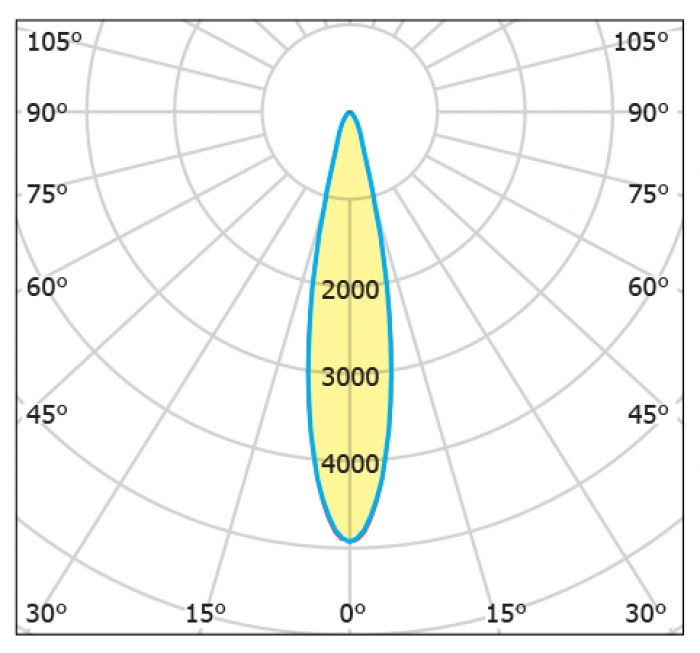

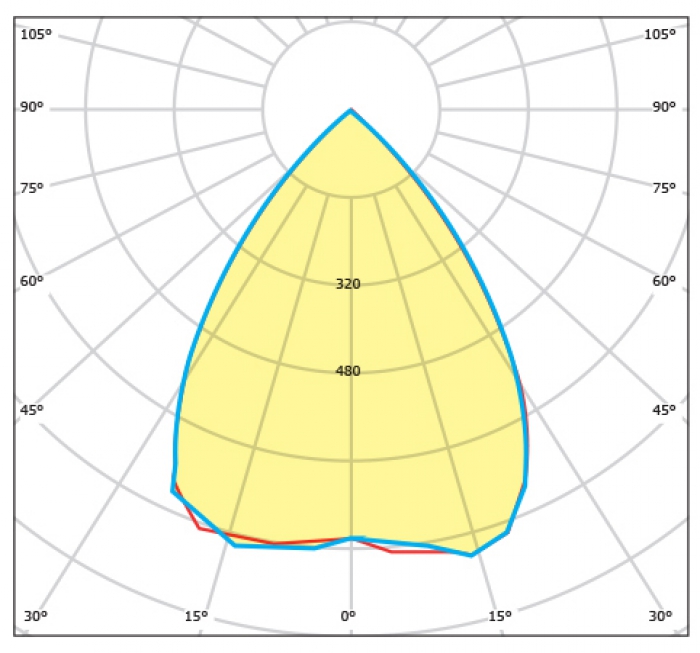

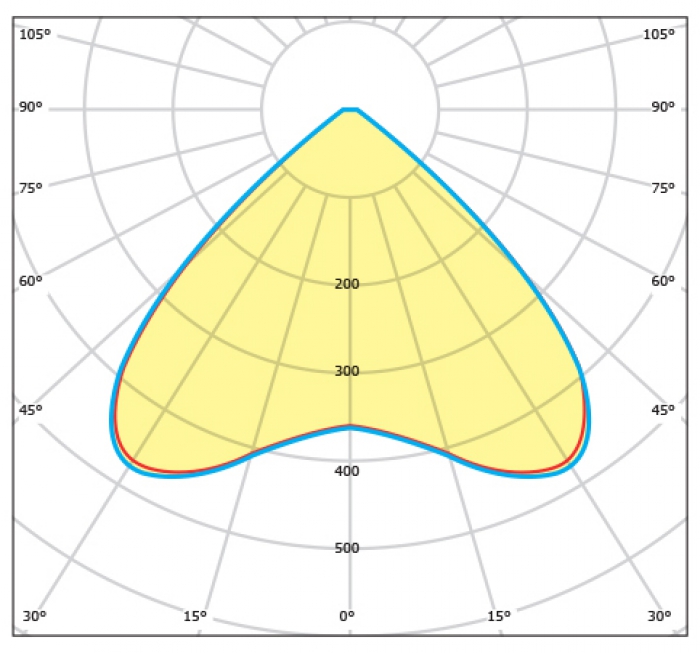

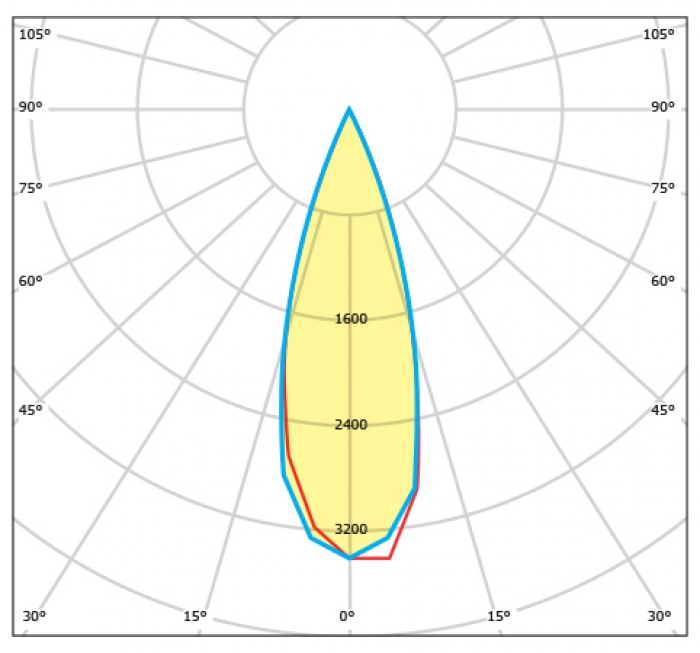

LIGHT CURVES
